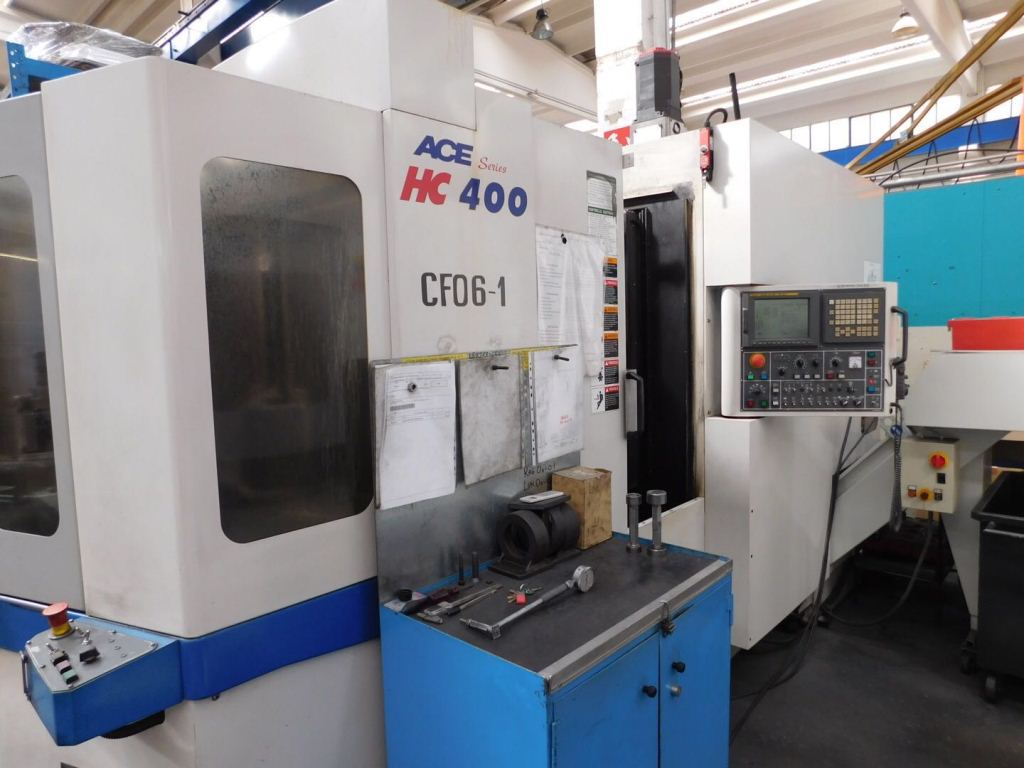

CENTER DAEWOO MOD. ACE HC 400
Double pallet
machine center - horizontal - Used Machines
DAEWOO
07233
07233

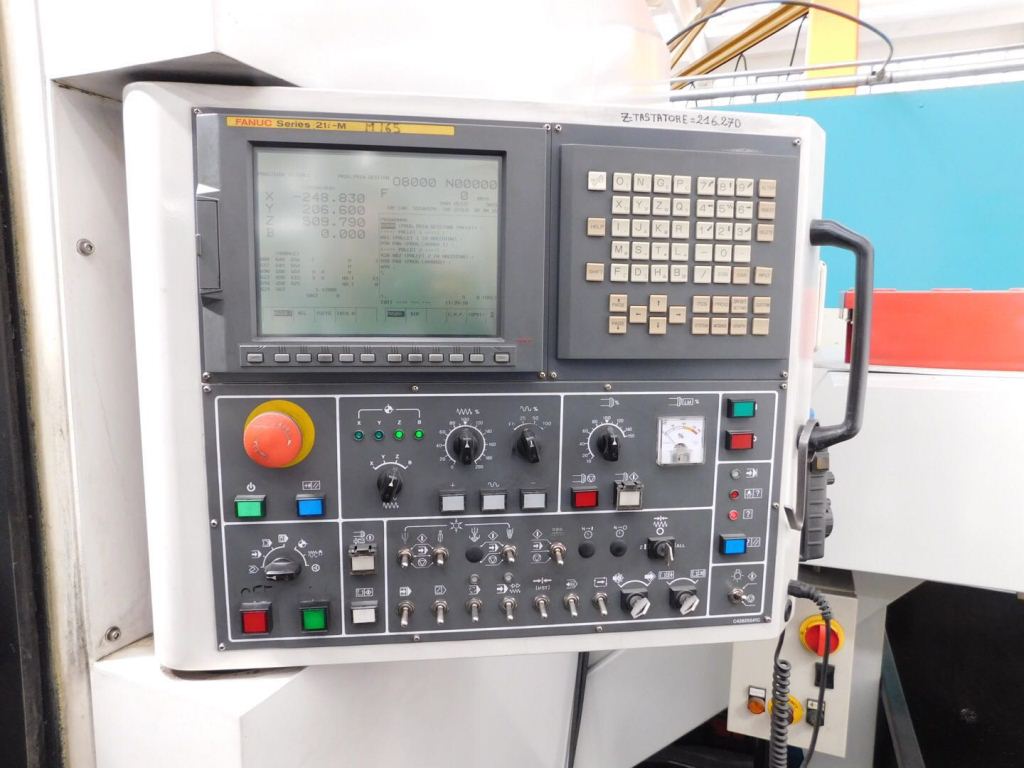

CNC Fanuc 21i-MA
Axis X stroke 600 mm
Axis Y stroke 560 mm
Axis Z stroke 565 mm
Distance between spindle center - pallet surface mm 50-610
Distance between spindle nose - pallet center mm 150-715

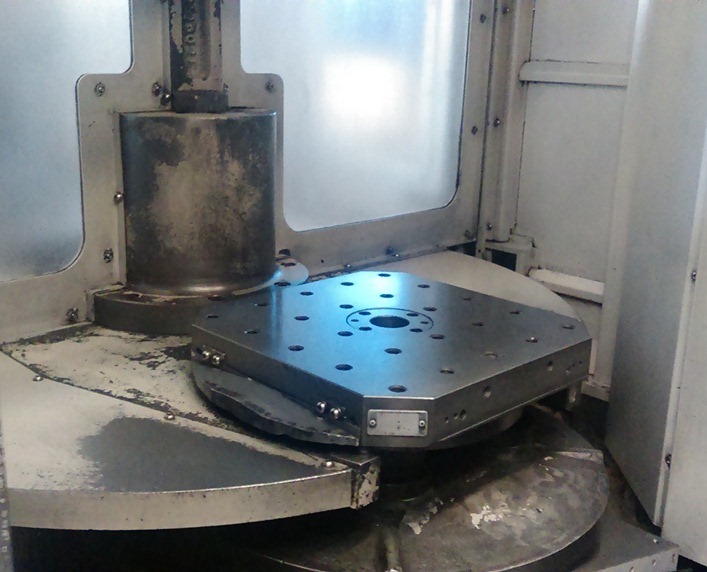

Pallet dimensions 400x400 mm
Pallet number 2
Pallet indexing degrees 1
Max piece diameter mm 600
Max piece height mm 800
Rapid feeds axis X/Y/Z m/min 32/32/32

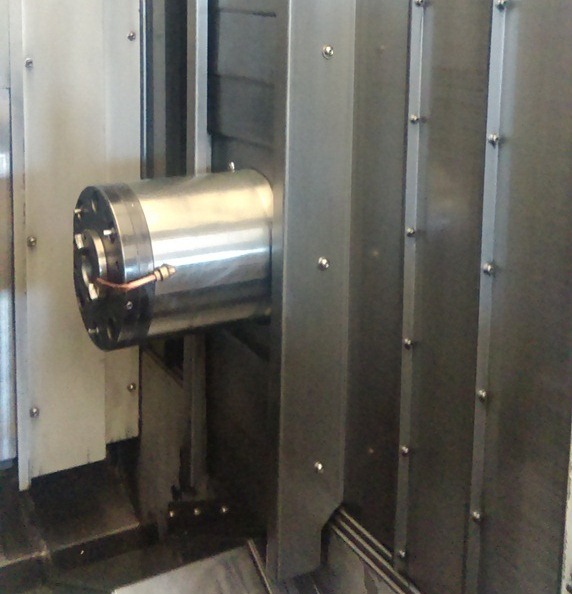

Spindle taper ISO 40
Spindle speed 8000 giri/min.
Motor power (cont./15 min) kW 18.5/22
Tool magazine 40 positions
Max tools diameter (full/empty tool pocket) mm 75/140
Max tool lenght mm 300
Max tool weight Kg 10
Approx. machine weight Kg 9500
EQUIPPED WITH:
High pressure through the spindle
Chip conveyor
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
