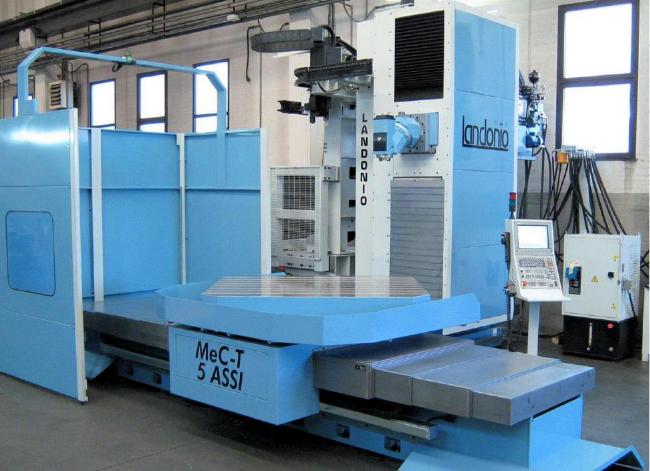

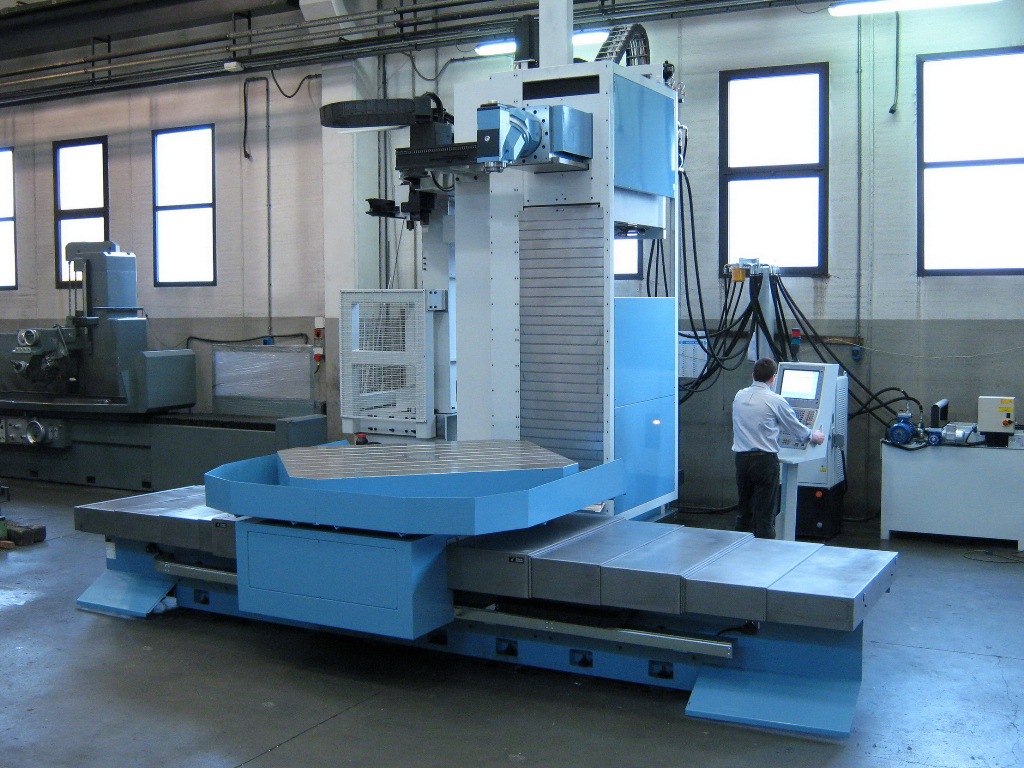

MILLING LANDONIO T TYPE MOD. MEC-T 3000/5
5 axis
NEW05471
5 AXIS
COLUMN FOUR LINEAR AXIS
ROTARY TABLE AND INDEXING HEAD
CNC HEIDENHAIN iTNC 530 M
STROKES:
Axis X (longitudinal) mm. 3.000
Axis Y (head cross) mm. 1.000
Axis Z (vertical) mm. 2.000
Axis W (upright cross) mm. 1.000
Axis C (rotary table) 360 gradi
ROTARY TABLE:
Lenght mm. 1.500
Width mm. 1.800
T-slot N.8
T-slot widht mm.22 H 8
Distance between T-slots mm. 160
Load Kg. 10.000
MOTOR AND FEEDRATE:
Axis X motor Nm 48
Axis Y motor Nm 28
Axis Z motor Nm 28
Axis W motor Nm 48
Axis C motor Nm 3600
Working speed mm/min. 10.000
Rapid speed m/min 15.000
SPINDLE:
Spindle nose (DIN 69871) ISO 50
Power spindle motor (S1) with mechanical gear change Kw 25 (S1) / Kw 29 (S6)
Automatic speed N.2
Max torque Nm 1500
Continuos variation of rotation speed at constant power rpm 300/3.000 (4.000 - 50% duty cycle)
APPROX. WEIGHT:
Kg. 35.000
EQUIPPED WITH:

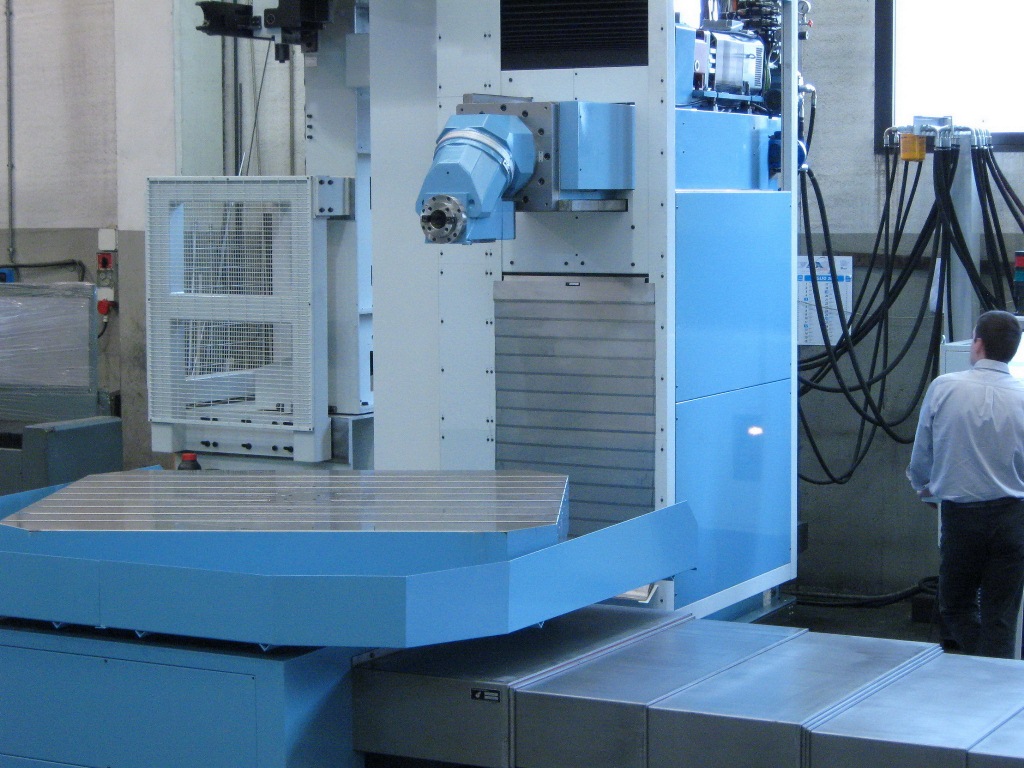

-Universal head birotative ISO 50 with automatic rotation of bpth the joints (indexed) with automatica positioning every 2.30° from CNC, automatic tool clamping.
-Tool changer with rotary magazine with shuttle ring, ISO 50, 40 tools.
-Tilt tool changer for changing the horizontal and vertical
-Hydostatic support system for rotary table
-Table rotation with torque motor
-Chip conveyor, lenght 4000 mm, basement chain with inverter, micro overload, band width 200 mm, CNC management, unload right side
-External coolant with low pressure nozzles
-Adduction liquid lubricating and coolant through the spindle vertical
-Tank for coolant 600 lt
-Pump high pressure flow rate l/min 25 to 50 bars of pressure, electrical connection and operation CNC (replacing the pump 32 liters at 20 bar pressure)
-Gear change mechanical FZ
-Coolant unit for cabinet
-Coolant unit for head and change
-Coolant unit torque motor
-Automatic axis clamping
-Rigid tapping with encoder
-Handwheel remote Heidenhain HR 410
-Heidhenain CC424 for dynamic TCPM
-TCPM function CNC Heidenhain
-Network connection to CNC Ethernet RJ-45
-The machine is covered with fixed panels and access sliding doors interlocked with safety microswitch CE standards (complete enclosure steel and polycarbonate)
-User and manteinance manuals, lamp, pull studs anchored to the foundation, service keys.
-Machine color RAL 7035 GREY / BLUE RAL 5024
IMAGES:
