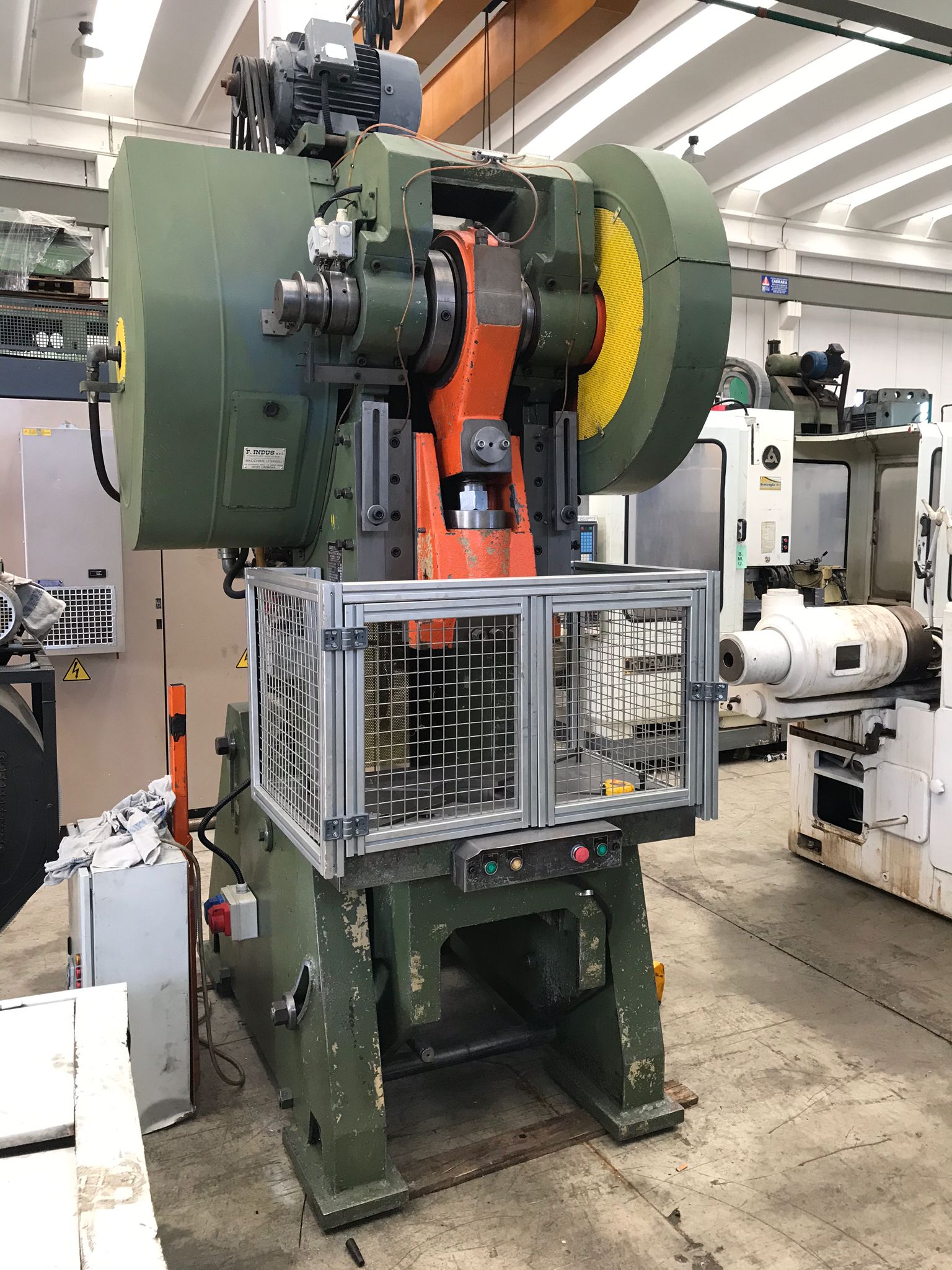

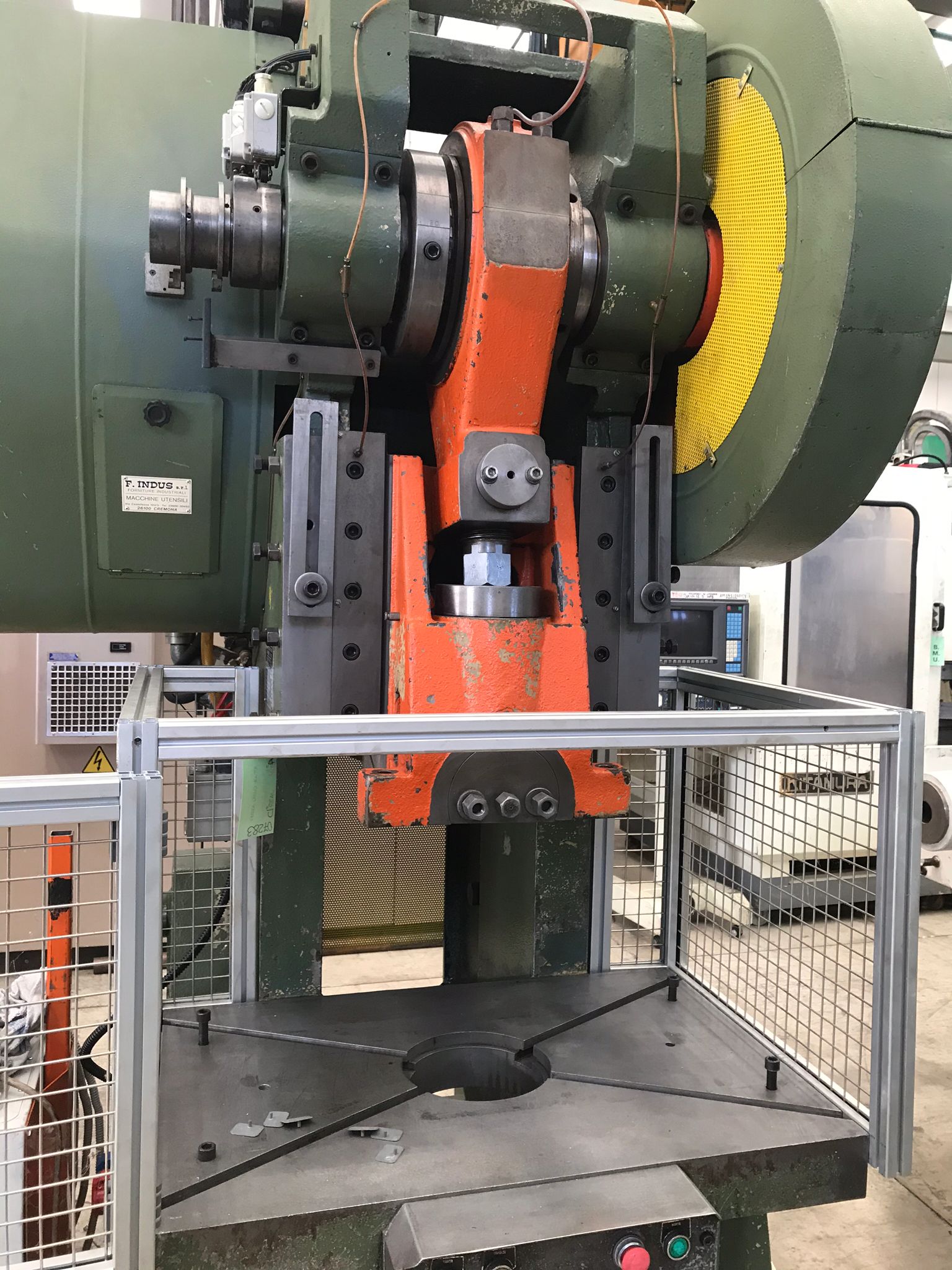

CAGLIO PRESS C-TYPE 120 TON
Eccentric c- type
press - Used Machines
CAGLIO
07281
07281
-Maximum pressure Ton 120
-Strokes per minute c.a. 55
-Adjustable ram stroke mm.20-120
-Table size: width x depth mm 900x600
-Ram size: width x depth mm 430x320
-Distance table-ram mm.510
-Ram adjustment mm.75
-Ram's hole Ø x width mm.50
-Drive motor rating Hp 10
-Approximate weigth Kg.c.a. Kg.7200
-Overall dimensions mm.2800x1400x2000
USED MACHINE
IMAGES:
