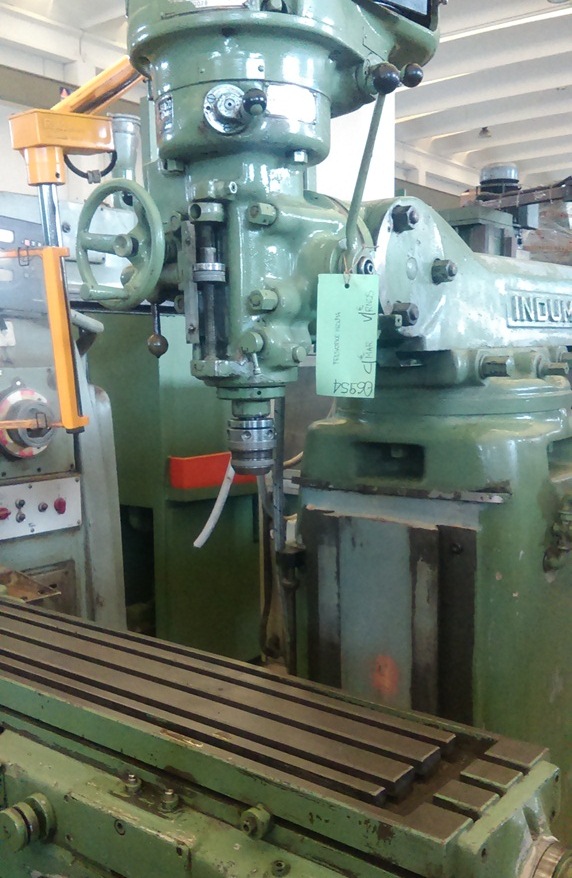

MILLING INDUMA
Rapid head
milling - Used Machines
INDUMA
06954
06954
Longitudinal stroke X mm 750
Cross stroke Y mm 360
Vertical stroke Z mm 360
Table dimensions mm 1070x230
Spindle speed n. 8, 80-2200 Rpm
T-slots n. 3
T-slots dimensions 16 mm
Quill diameter mm 50
Quill stroke mm 120
Slideway stroke mm 300
Distance between spindle and table mm 400
Spindle motor power KW 1,2
Slideway rotation +90
Indexing head right/left +/- 90 gradi
Indexing head front/back +/- 45 gradi
Approx. overall dimensions (LxPxA) mm 1650x1500x2100
EQUIPPED WITH:
Axis X,Y E Z motorized
Cover
USED MACHINE
