DRILLING ADRIATICA INDUSTRIALE
Column/bench type
drilling - Used Machines
ADRIATICA INDUSTRIALE
07310
07310

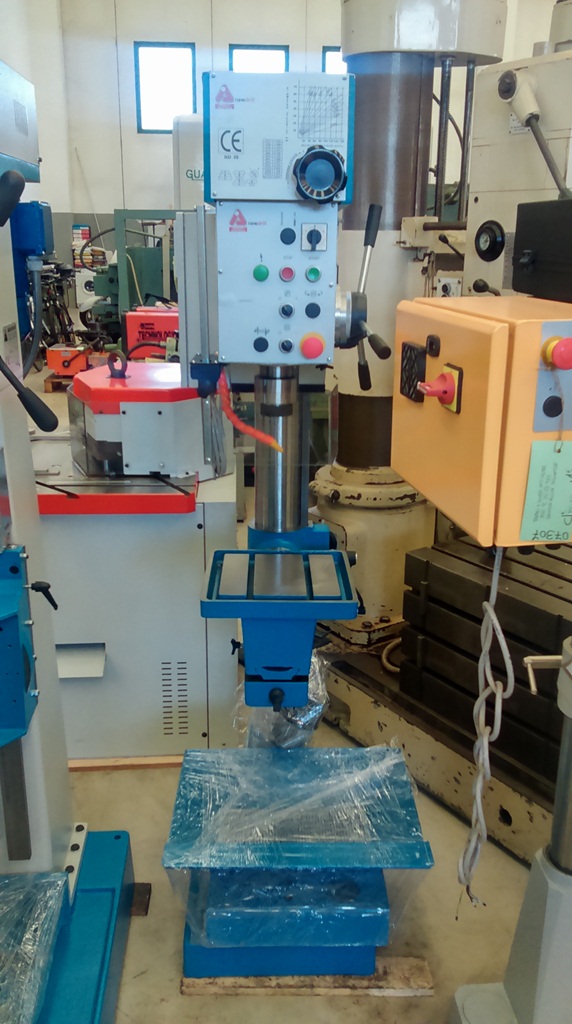

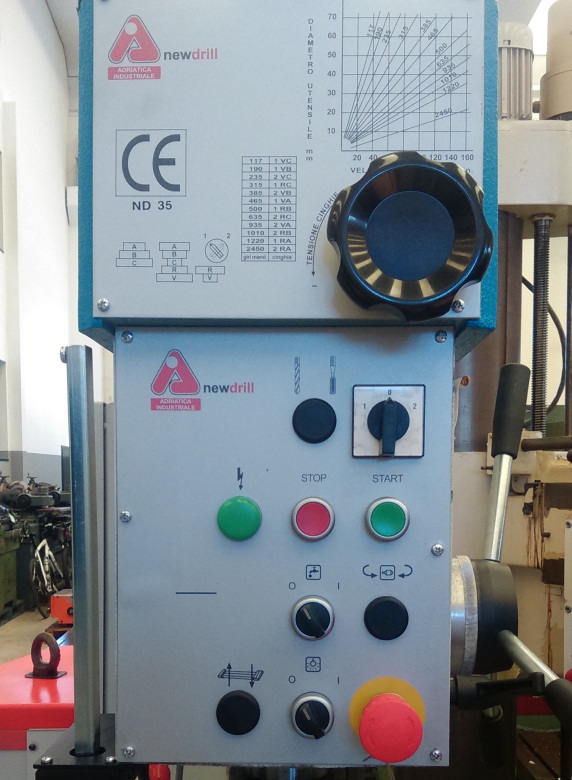

MOD. NEW DRILL 35 VARIO PGM
TILTING TABLE WITH VICE
SPEED VARIATOR
TWO POLARITIES ENGINE POWER KW 0.90-1.65
Technical specification:
C.M. 4
Spindle diameter mm 72
Spindle stroke m 135
Max drilling capacity on steel (R=40 Kg/mm2) mm 35
Max tapping capacity on steel mm 20
Speeds change rpm 100-1600
Distance between column and center spindle mm 315
Max distance between table and spindle mm 800
Dimension work table mm 330x330
Column diameter mm 124
Max open vice mm 130
Base mm 450x660
Dimensions (widthxheightxdepth) mm 450x1940x1100
Weight Kg 400
EQUIPPED WITH:
-Cooling system
CE NEW MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
