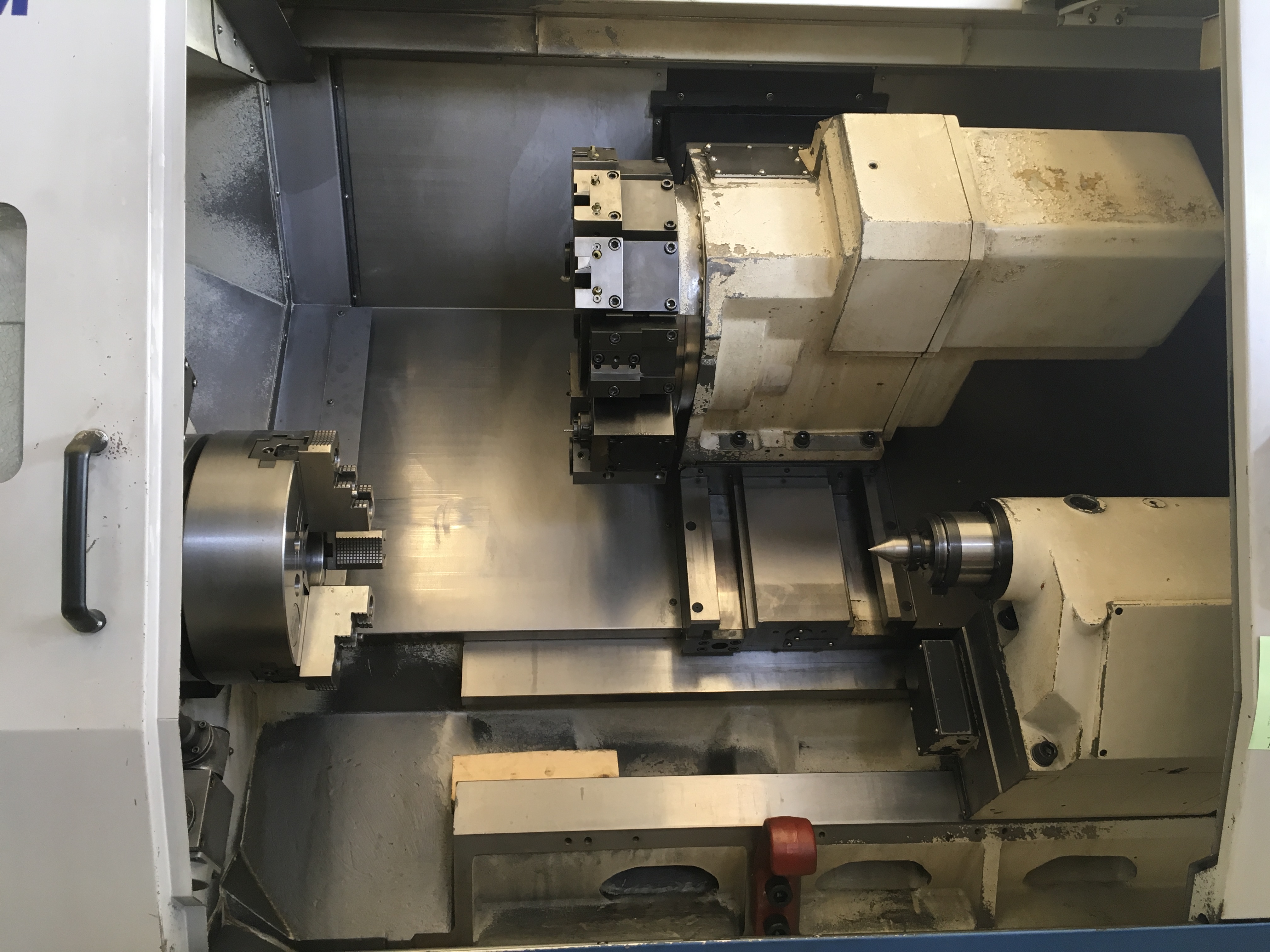

LATHE DAEWOO PUMA 400 MB

With live tools

lathe cnc - Used Machines

VIDEOS:

DAEWOO
07491

C AXIS
LIVE TOOLS

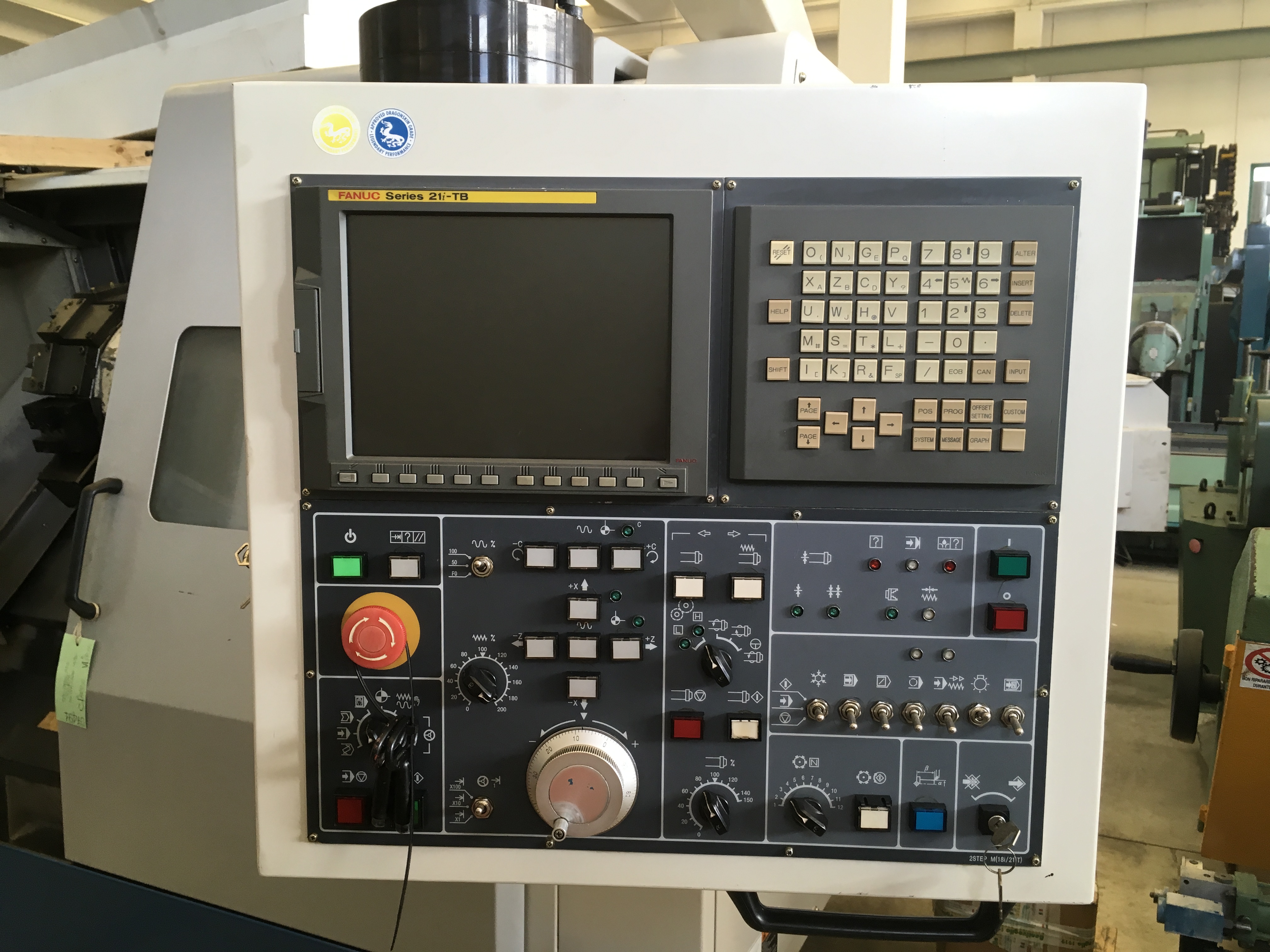

CNC FANUC 21i-TB
CAPACITY
Swing over bed mm 770
Swing over saddle mm 590
Max machining dia. mm 560
Max work length mm 978
Draw tube dia. mm 91
TRAVELS
Axis X mm 362
Axis Z mm 1105
SPINDLE
Speed 30 - 2000
Spindle nose ASA A2-11
Motor power Kw 22/30

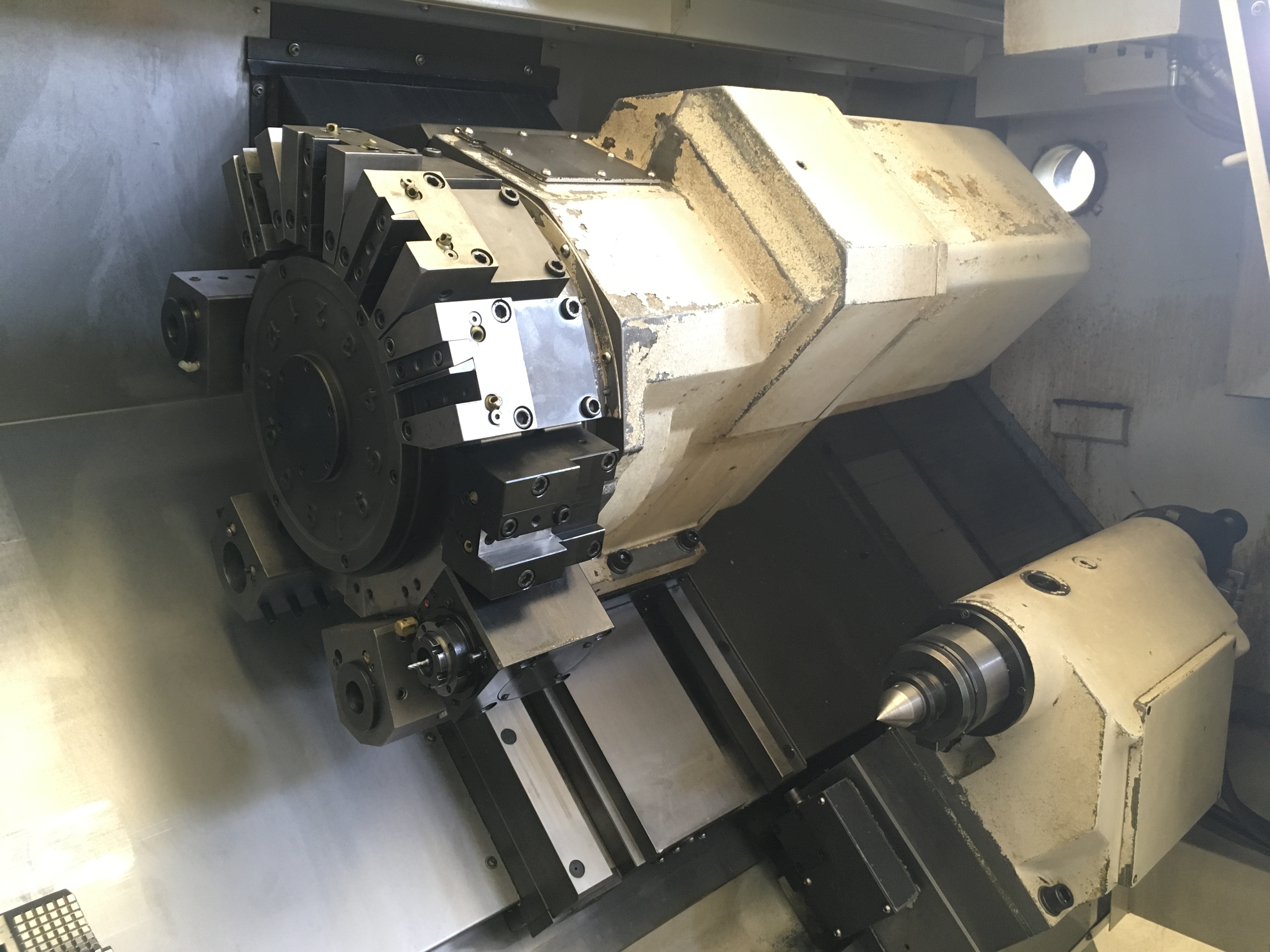

MOTORIZED TURRET
12 positions
Live tools speed Rpm 30-3000

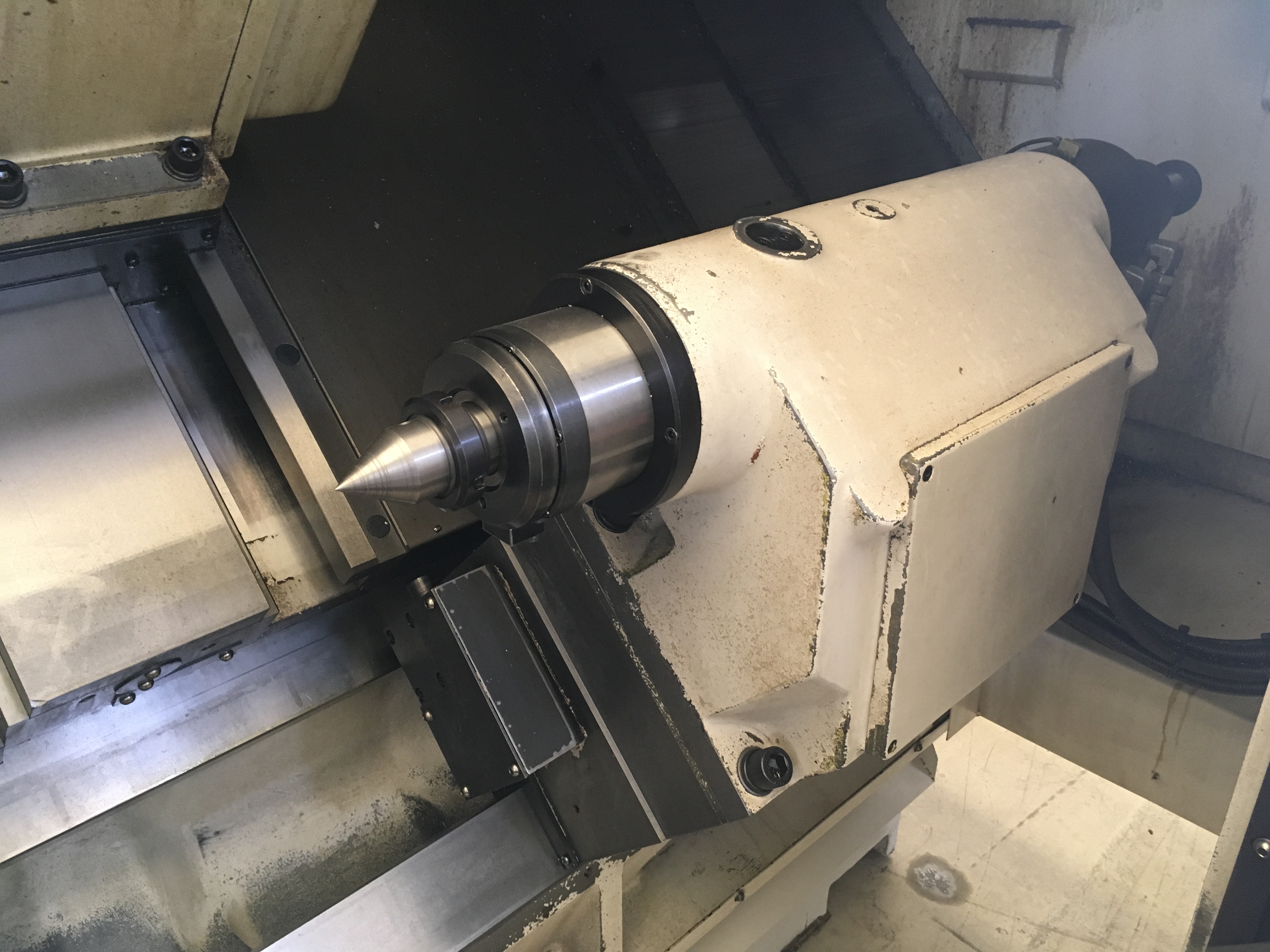

AUTOMATIC TAIL STOCK
Quill dia. mm 120
Quill dia. MT5
Quill travel mm 120
Total power Kva 50
Overall dimensions mm 3890x2390x H 2240
Weight Kg 9800
EQUIPPED with
Chip conveyor

YEAR 2005
MACHINE USED
