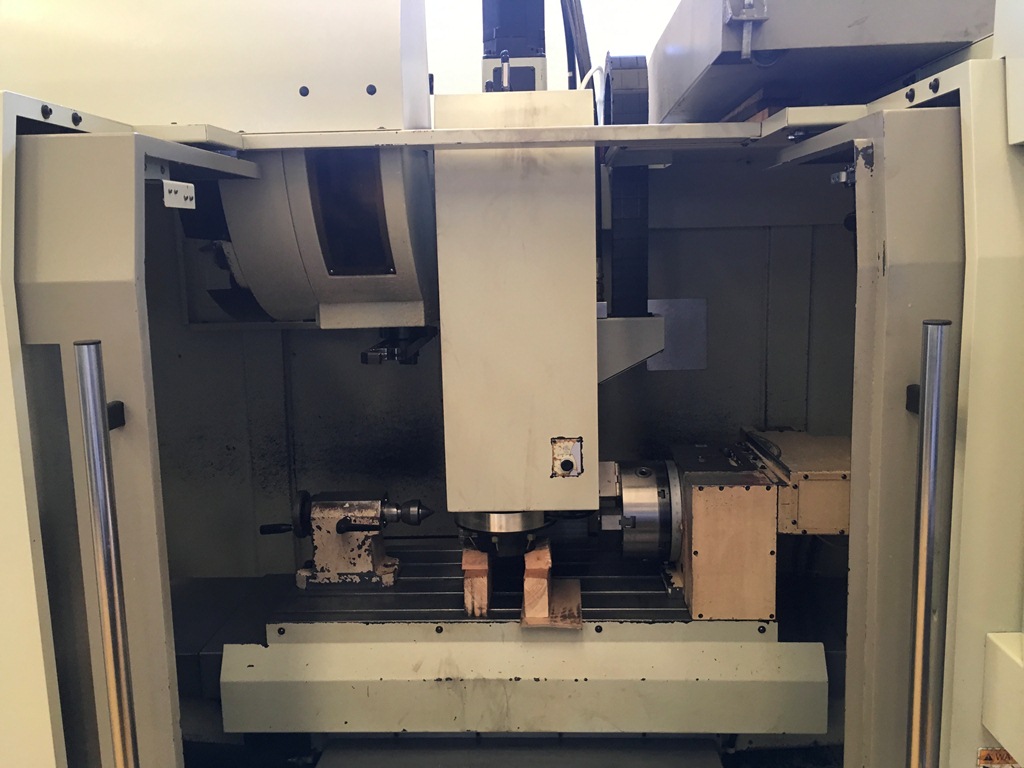

VERTICAL MACHINE CENTER FIRST MCV 1000
Single pallet
machine center - vertical - Used Machines
VIDEOS:
FIRST
07494
07494
With fourth axis

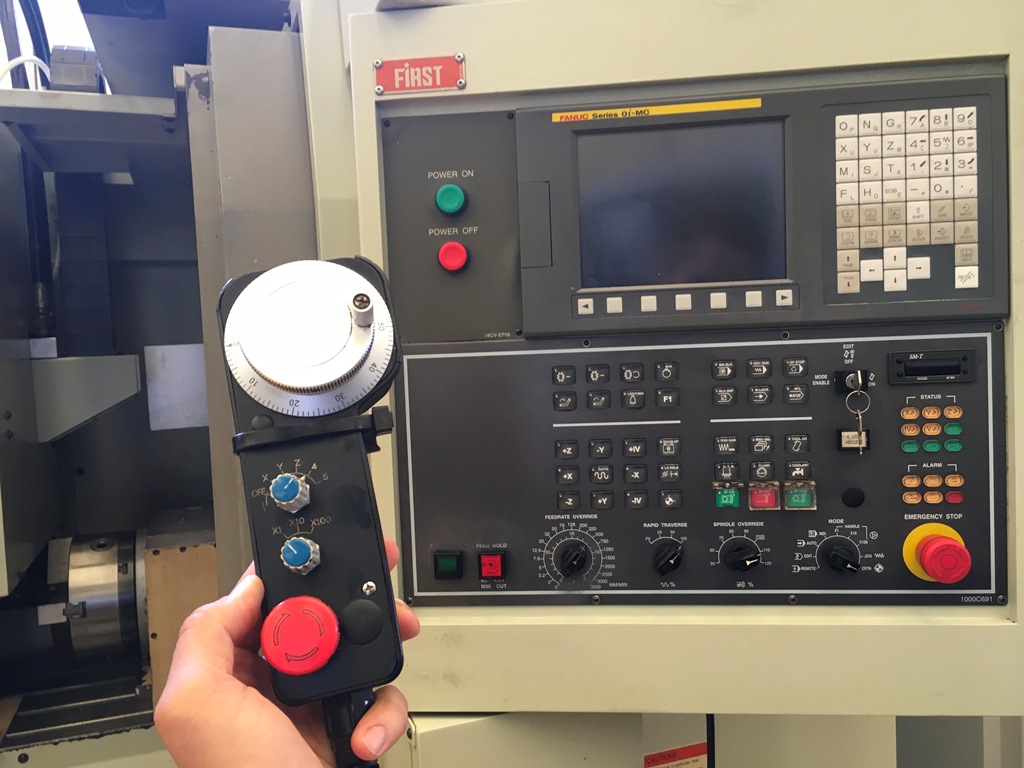

CNC FANUC 0-IMC
TABLE
Clamping surface mm 1150 x 500
T slot mm 5x18x100
Load max Kg 800
STROKE
X mm 1020
Y mm 510
Z mm 510
Feed rates X Y Z m/min 20/20/18
SPINDLE
Distance table/spindle min/max mm 100/610
Spindle taper ISO 40
Spindle motor 10 Kw
Speed Rpm 120-8.000
Motor torque Nm 190
DIMENSIONS
Weight Kg 5000
Overall mm 3000x2800
EQUIPPED WITH
Automatic tool change 24 position
Chip conveyor
Rotary table fourth axis
Coolant through spindle
YEAR 2006
MACHINE USED
VIDEOS:
