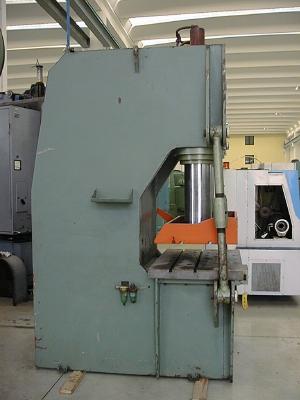

PRESS GIGANT GTP.11O TON.16O
Oleodinamic c type
press - Used Machines
GIGANT
PRS.OCG.OO42
PRS.OCG.OO42
PISTON: N°2 TON.160
RETURN POWER TON.20
MOVING PLANE OR PISTON STROKE (APPROX.) MM.500
MAX PRESSURE ATM 160
MOVING PLANE APPROACH SPEED M/1' 10
MOVING PLANE WORKING SPEED M/1' 1
MOVING PLANE RETURN SPEED M/1' 10
ELECTRIC MOTORS N°2 HP 12+12
RPM 1450
VOLTAGE VOLT 220/380 - HZ 50
MAX GAP ON THE PLANES MM.700
HOLLOW DEPTH BETWEEN PISTON AXIS TO COLUMN MM.450
STEADY WORK PLANE DIMENSIONS MM.1200x730
PLANE DIMENSIONS MM.1200x600
BLANK HOLDER: N°2 TON.60
BLANK HOLDER STROKE MM.250
MAX PRESSURE ATM 160
BLANK HOLDER PLANE DIMENSIONS MM.800x500
EJECTOR: N°01 MECHANICIAN TON.20
EJECTOR STROKE MM.100
EQUIPPED WITH:
-CUSHION
-BLANK HOLDER
USED MACHINE
IMAGES:
FILL OUT OUR FORM FOR MORE INFORMATION
