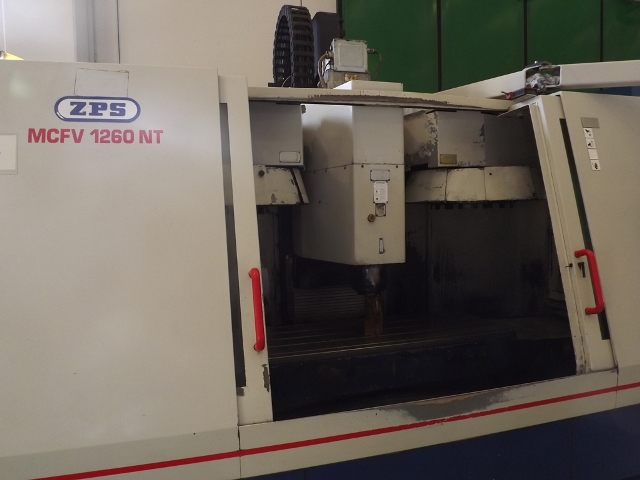

CENTER ZPS MOD. MCFV 1260 NT
Single pallet
07568

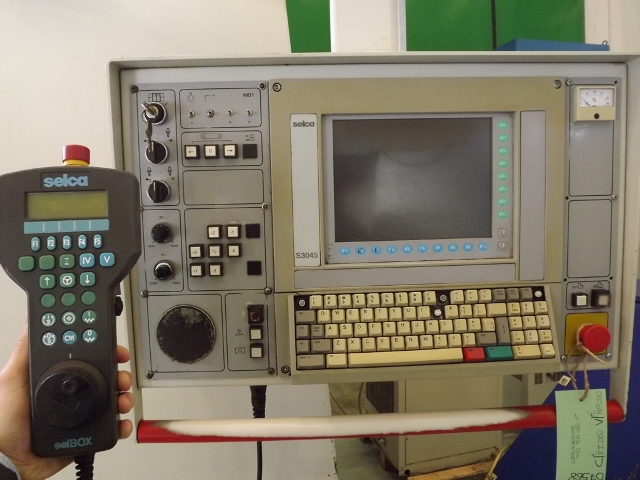

CNC SELCA S3045
TABLE:
Lenght x Width mm 1450x590
T-slots number x width mm 5x18
T-slots distance mm 12
Max loadKg 1350
Max piece dimensions mm 1270x590x430
STROKES:
Axis X mm 1270
Axis Y mm 610
Axis Z mm 760
Distance between spindle nose / table mm 150-910
Distance spindle axis / column mm 635
SPINDLE:
Spindle speed rpm 6000
Spindle taper ISO 50
Spindle motor power (cont./30 min.) kW 17/22,5
ATC:
Toolholder 50 A - ISO 7388/1

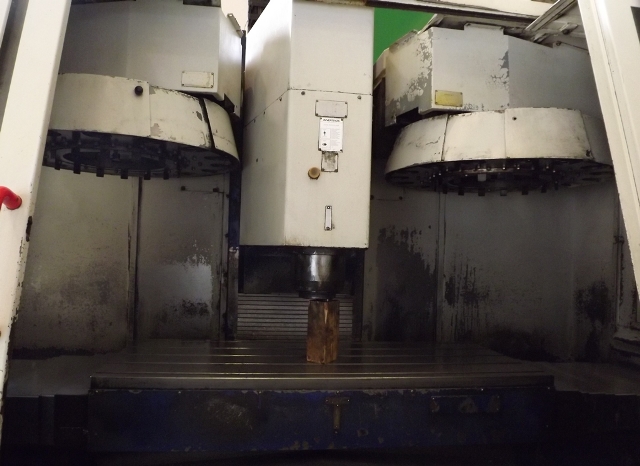

N.2 tool magazine with 16 positions each (32)
Max tool diameter mm 130
Max tool diameter (without adjacent tools) mm 220
Max tool lenght mm 300
Max tool weight Kg 12
Appprox. machine weight Kg 8000

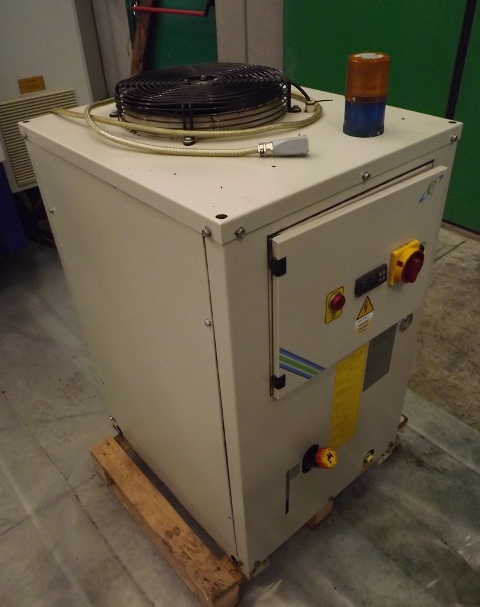

equipped with sistem internal cooling (not pump)
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
