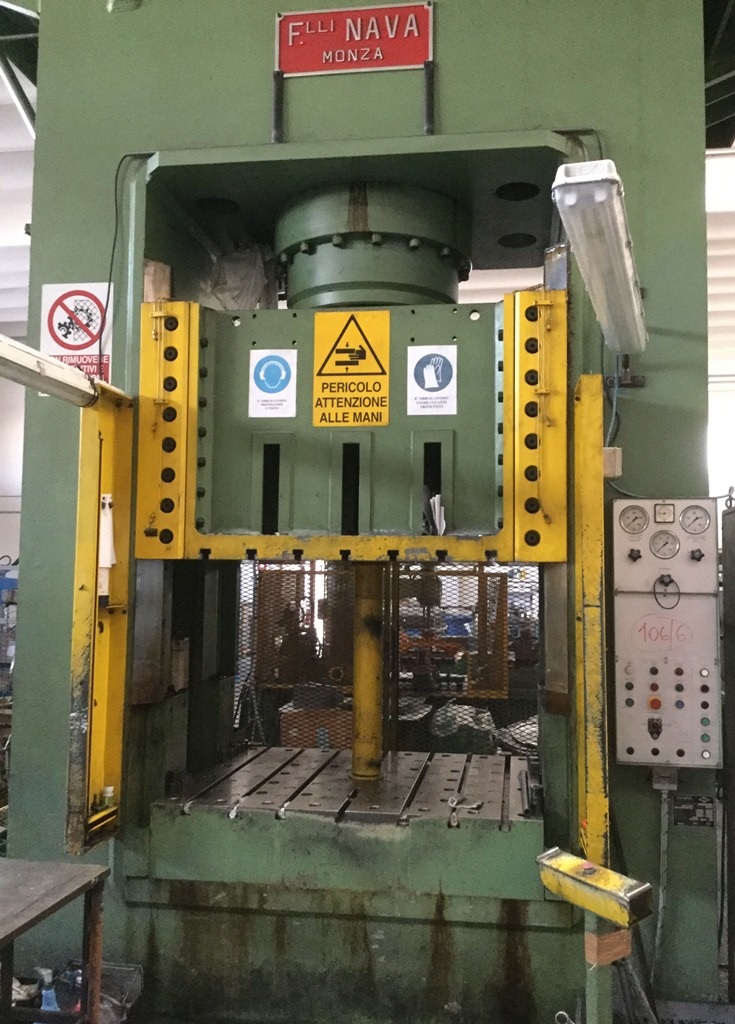

PRESS NAVA 600 TON
Oleodinamic doble column
VIDEOS:
07578
DOUBLE COLUMN
2MI 600/280
Max Ram capacity Ton 600
Max Ram capacity in return Ton 42
Max reaction capacity blankholder Ton 280
Table size mm 1600x1300
Distance between columns mm 1600
Distance between tables mm 1200
Max Ram stroke (adjustable) mm 800
Blankholder stroke mm 350
Max interaxis blankholder plug mm 1200x900
Power input Hp 200+10
Voltage Volt 380 Hz 50
Approaching speed mm/sec 400
Table return speed (single) mm/sec 400
Working speed with Ton 300 mm/sec 44
Working speed with Ton 600 mm/sec 22
Approx machine weight Ton 72
EQUIPED WITH:
Safety module on cylinder
Switchboard with PLC
Photocell barrier european regulation
Two-leafed openable rear gate
End-of-stroke series and end-of-stroke for Ram controlling
USED MACHINE
