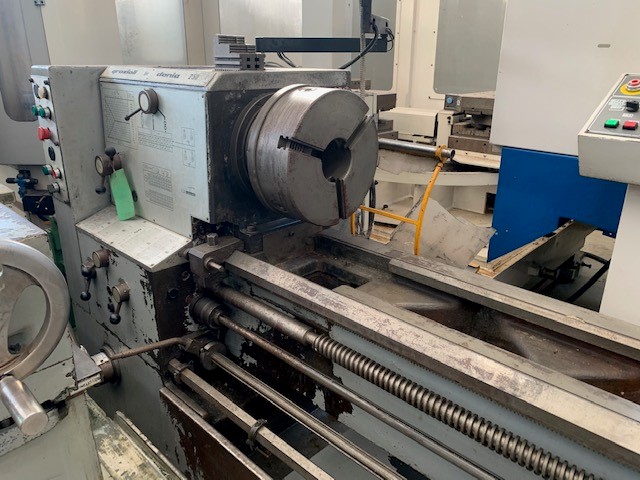

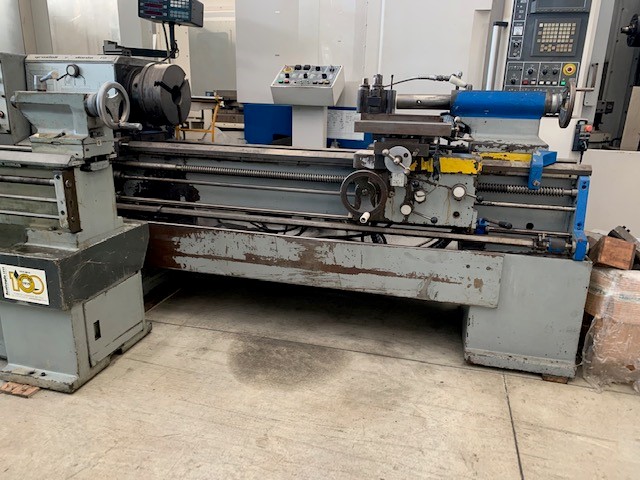

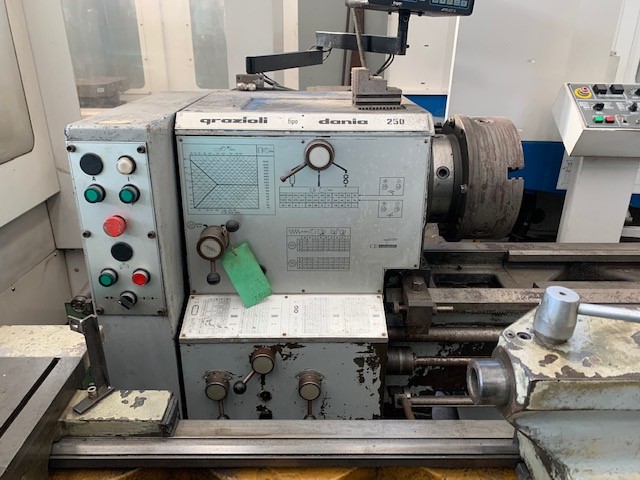

LATHE GRAZIOLI DANIA 250x1500
Diameter up to 600 mm
lathe conventional - Used Machines
GRAZIOLI
07266
07266
Height of center mm 250
Distance between center mm 1500
Bed width mm 360
Max turning diameter on bed mm 500
Max turning diameter on carriage mm 318
Gap width mm 270
Spindle nose CAM LOCK 8''
Spindle bore mm 78
Tailstock quill diameter mm 70
Tailstock quill stroke mm 200
Tailstock quill cone Morse 4
Spindle speed n.24 - rpm 1400
Approx. net weight Kg 2350
EQUIPPED WITH:
3 Jaws chuck diam. mm 315
Quick tool change turret

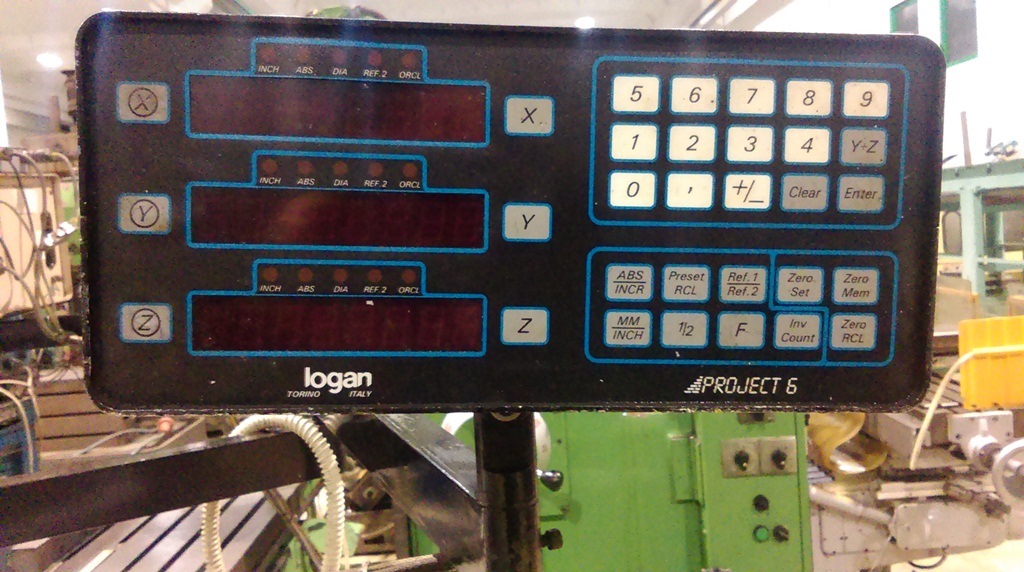

Digital readout 3 axis
USED MACHINE
