CENTER HAAS HCE 400P
Double pallet
07632

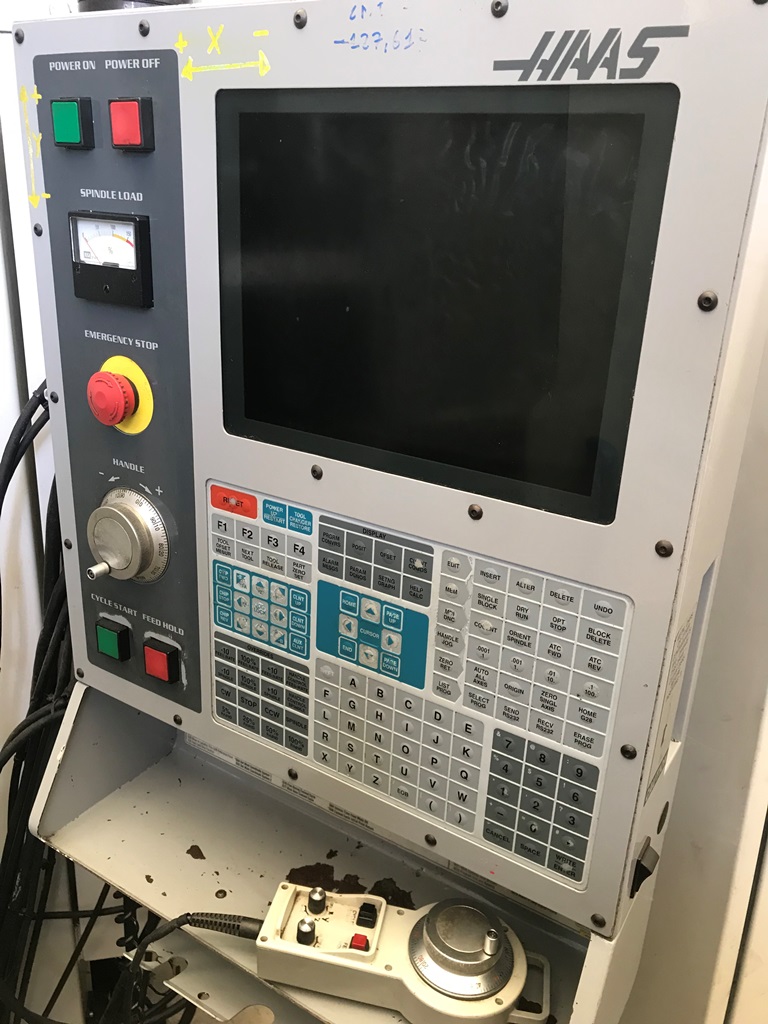

CNC HAAS
WORKING AREA
Longitudinal axis X stroke mm 610
Vertical axis Y stroke mm 510
Cross axis Z stroke mm 560

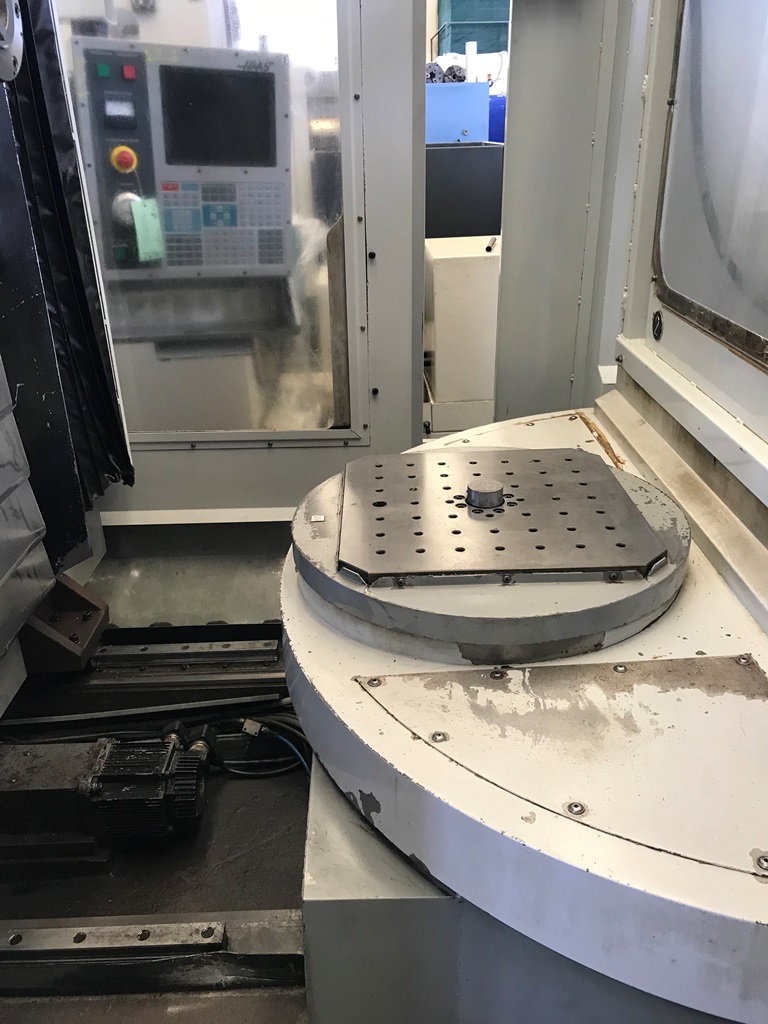

ROTARY TABLE CN
N.2 pallet dimensions mm 406x406
Pallet change time s 25
Piece weight max daN 226
WORKING HORIZONTAL SPINDLE
Power kW 10/15
Gear change (torque 218 Nm) 2
Spindle speed rpm 10.000
Spindle nose ISO 40-DIN 69871

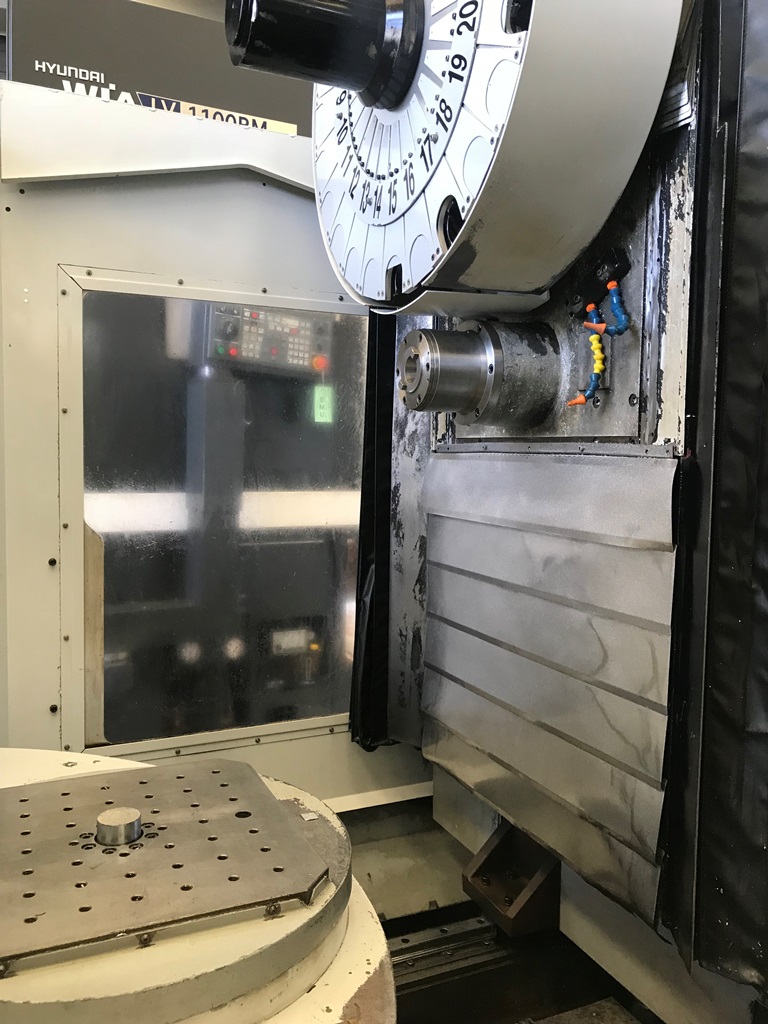

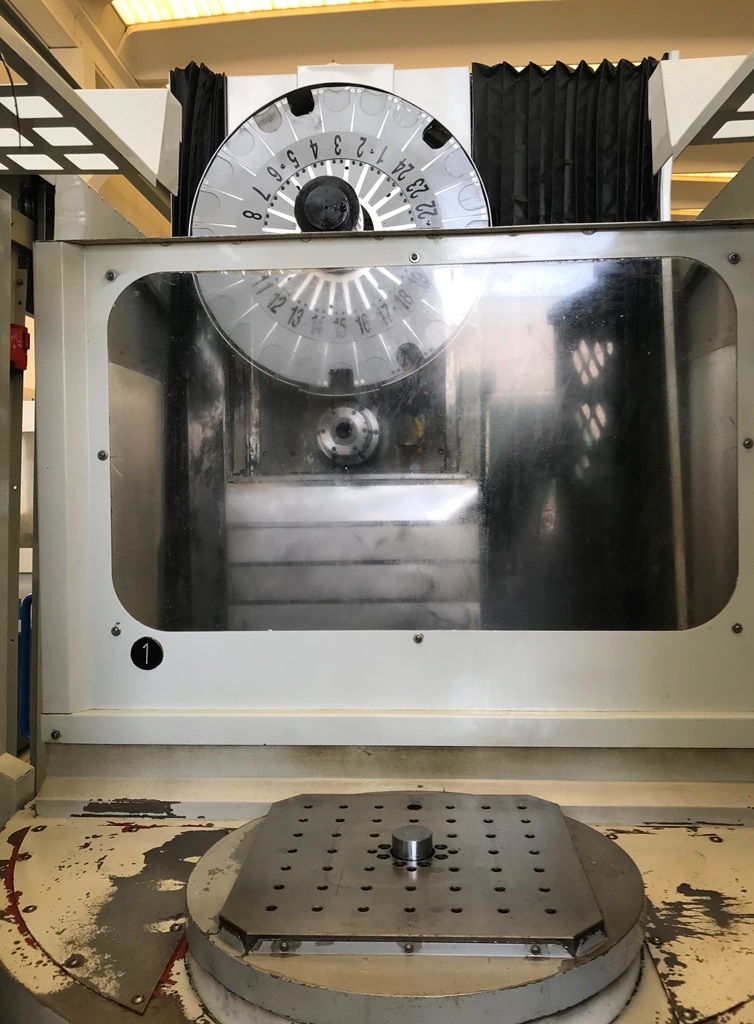

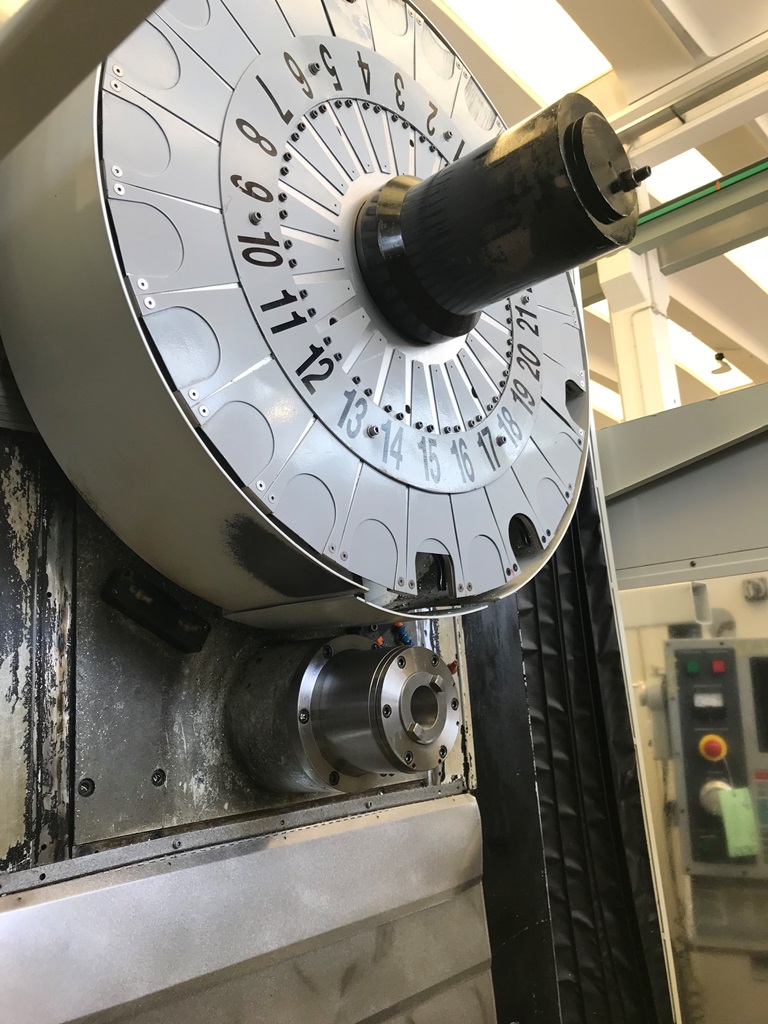

AUTOMATIC TOOL CHANGE
Tool number 24
Max tool diameter mm 89
Max tool lenght mm 380
Max tool weight daN 6
Tool change time s 8
Tool change tima (chip to chip) s 10
Tool taper DIN/ISO 69871
FEEDRATE
Rapid feedrate (axis X,Y e Z) m/min 18
ELECTRICAL DATA
Installed power kW 15
WEIGHT
Weight 7260 daN
Overall dimensions (LxDxH) mm 2300x3400x2900
EQUIPPED WITH:
Continuous table rotation
Chip conveyor
USED MACHINE
USED MACHINE
