LATHE DOOSAN MOD. PUMA 240MB
With live tools
VIDEOS:
07031

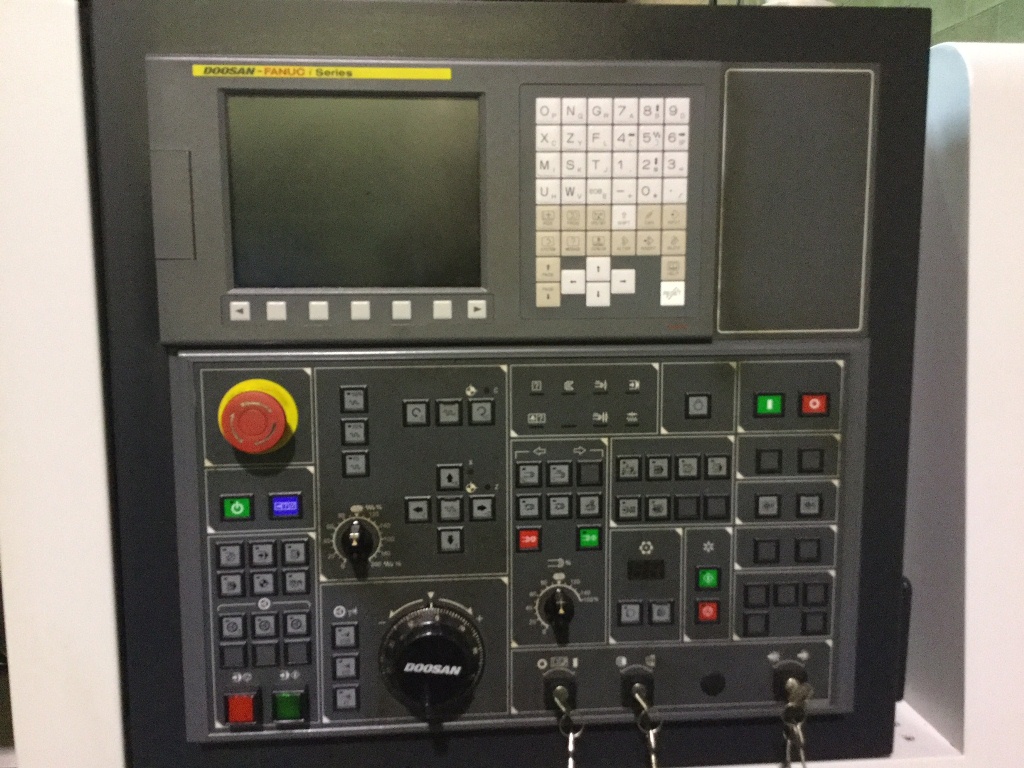

CNC FANUC serie Oi-TC
CAPACITY:
-Max swing diameter on the bed mm 550
-Max swing diameter on the carriage mm 390
-Max turning diameter on the bed mm 300
-Max turning lenght mm 513
-Bar passaging mm 65
-Max load Kg 120
-Max load with tailstock Kg 250
SPINDLE:
-Spindle nose ASA A2-6
-Chuck diam. mm 210
-Spindle speed rpm 45-4500
-Spindle motor power (cont./30 min.) kW 11/15
-Spindle bore mm 76
STROKES:
-Axis X mm 205
-Axis Z mm 580
-Axis C (spindle rotation) +/- 360 gradi
FEED:
-Rapid feed axis X/Z m/1' 24/30

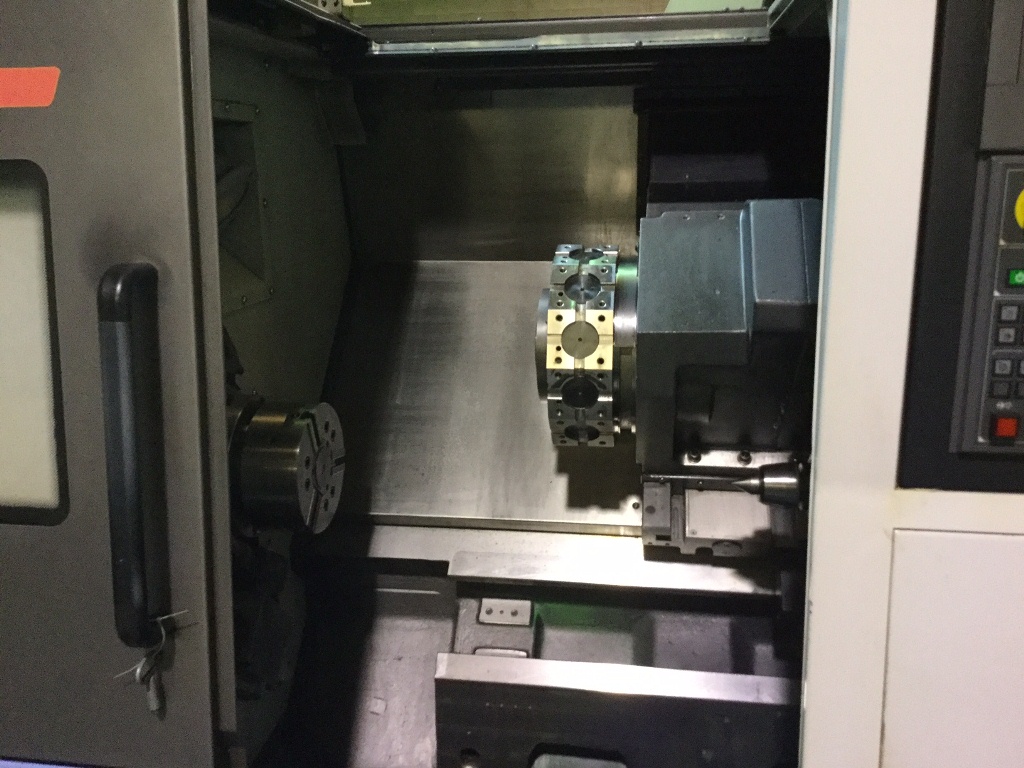

MOTORIZED TURRETT:
-Live tools n.12
TAILSTOCK:
-Quill taper CM 4
-Quill diameter mm 75
-Quill stroke mm 80
WEIGHT:
-Approx. weight Kg 4140
EQUIPPED WITH:
Chip conveyor
USED MACHINE
YEAR 2008
VIDEOS:
FILL OUT OUR FORM FOR MORE INFORMATION
