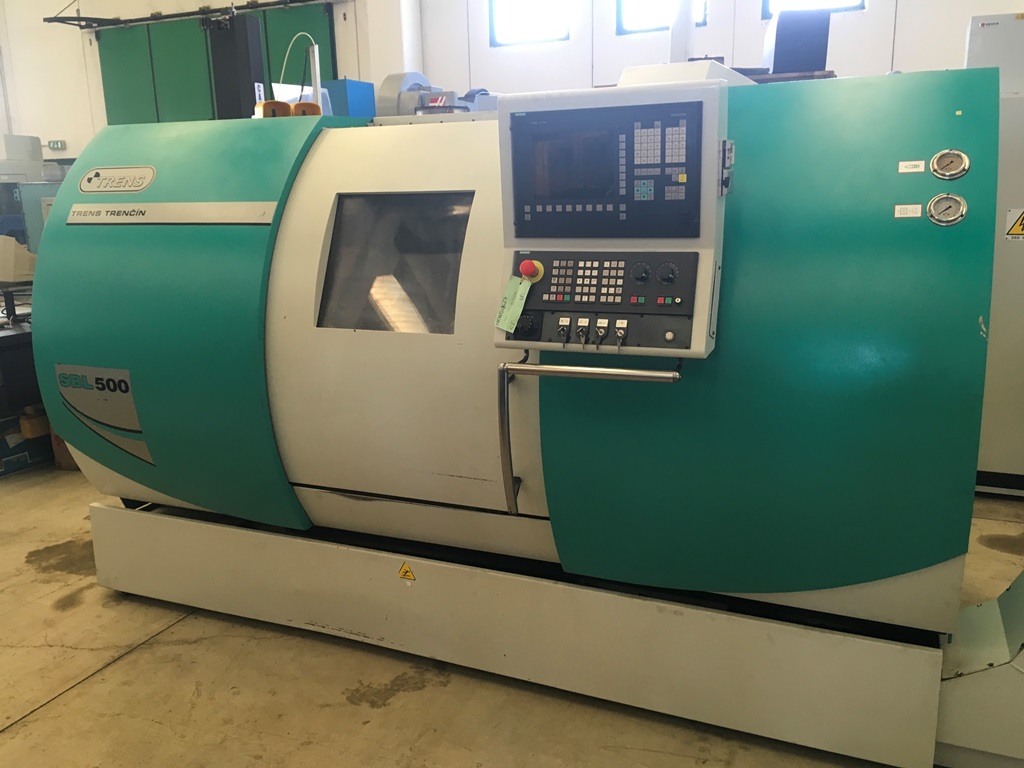

CNC SIEMENS 810 D SHOPTURN
Swing diameter mm 630
Max turning diameter mm 405
Max turning lenght mm 750
Inclination bed 45°
Axis X mm 270
Axis Z mm 905
X axis rapid traverse m/min 18
Z axis rapid traverse m/min 24
Spindle bore mm 92
Bar passaging mm 75
max jaw chuck diameter mm 315
Spindle nose ASA A2-8
Spindle taper metric 100
Spindle power kW 17/20,5
Max spindle speed rpm 3000
Tailstock quill diameter mm 100
Tailstock quill taper CM5
Tailstock quill traverse mm 120
Tool number Turret SAUTER 12 pos. VDI 40
Overall dimensions mm 1738x1900
Machine weight ca. Kg 5250
STANDARD ACCESSORIES:
- C axis

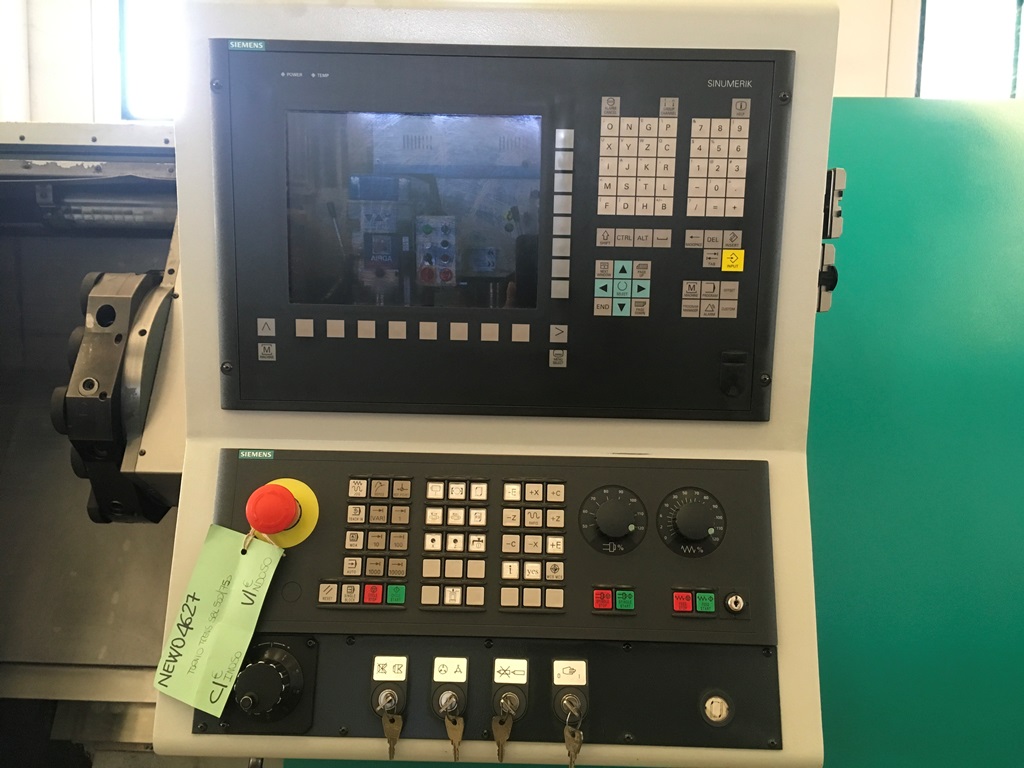

- Panel PCU 50
- Chip conveyor

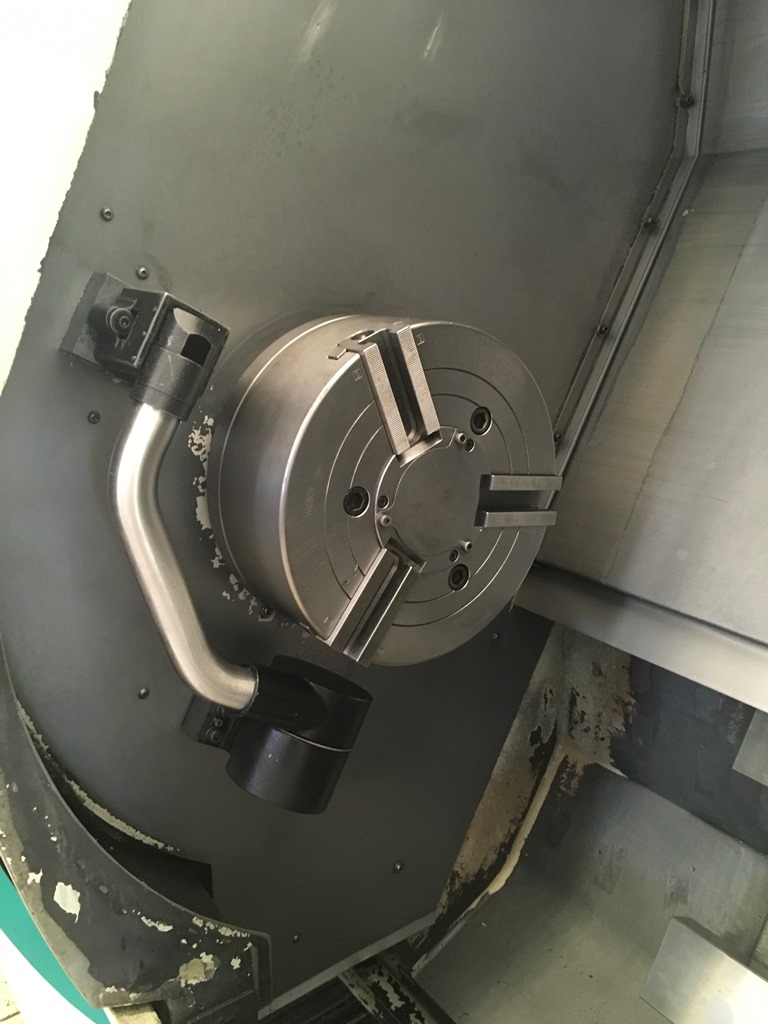

- 3 jaw chuck diameter 315
- Tool probe

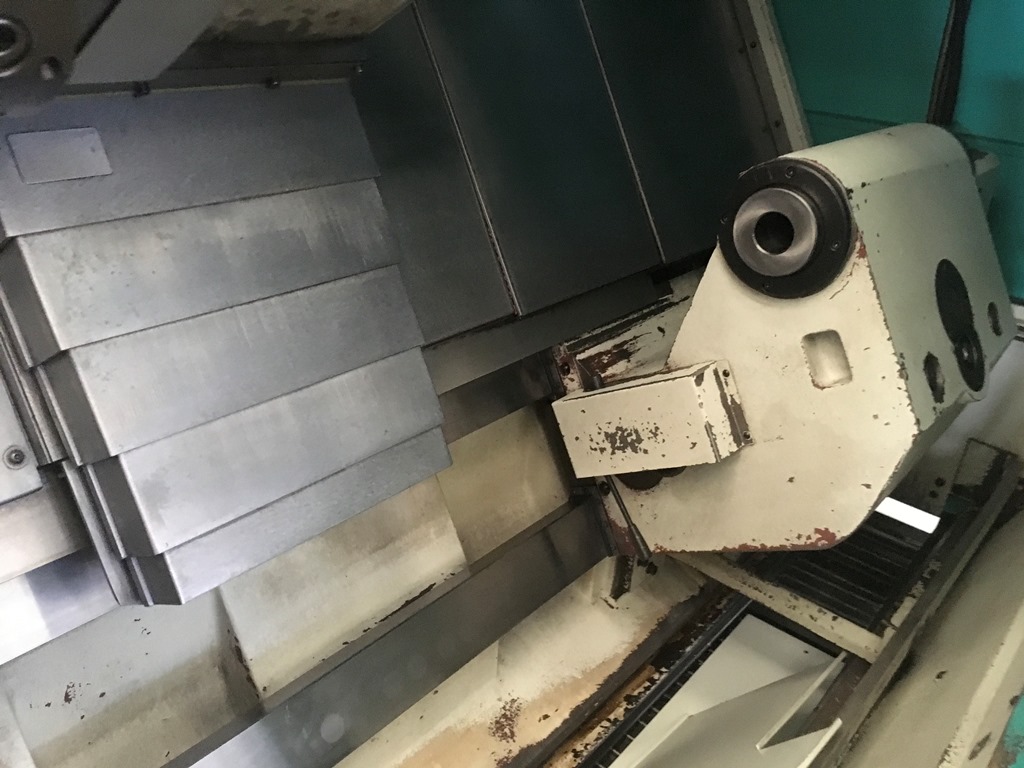

- Tailstock
- Lubrication system
- Coolant motor
- Coolant tank
- Machining area illumination

USED MACHINE
