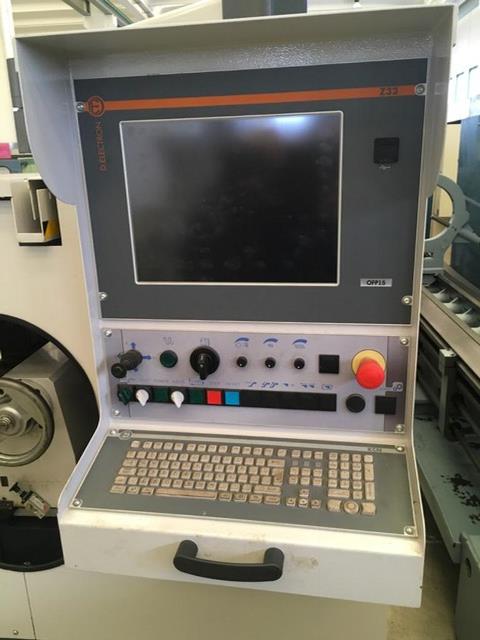

CNC D.ELECTRON
-HEIGHT OF CENTRE OVER BED MM 260
-DISTANCE BETWEEN CENTRE MM 2000
-SWING OVER BED MM 520
-SWING OVER SLIDE MM 265
-TURNING LENGHT MM 1750
-TURNING DIAMETRE MM 275
-SPINDLE TAPER CL 8''
-SPINDLE BORE MM 110
-CONE MORSE CM 5
-QUILL DIAMETER MM 80
-SPINDLE POWER KW 10,7
-SPINDLE REVOLUTION U/MIN 0-2000
-THRUST X AXIS daN 250
-THRUST Z AXIS daN 500
-RAPID FEEDS AXSI X-Z M/MIN 15
-APPROX. WEIGHT KG 2800
ACCESSORIES INCLUDED:
-STEADY REST
-FOLLOW REST
-DEAD CENTRES
-SPINDLE ADAPTER SLEEVE
-ELECTROPUMP AND DEVICES FOR COOLANT
-CHIP TANK
-SAFETY SCREEN
EQUIPPED WITH:

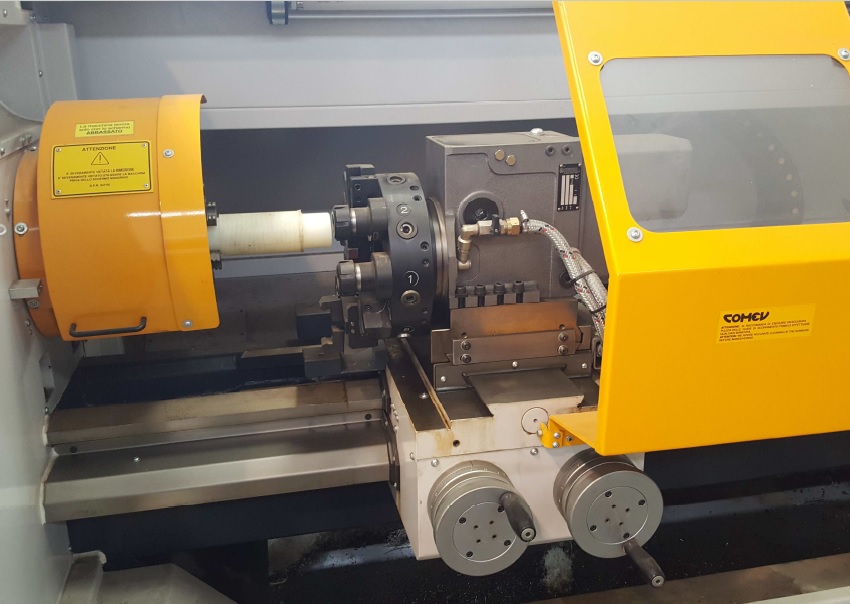

-HYDRAULIC AUTOMATIC CHUCK BHD DIM MM 250 3+3 JAWS
BAR PASSAGING COMPLETE MM.65
EQUIPED WITH CYLINDER, TIE ROD, FOOT PEDAL AND HYDRAULIC UNIT.

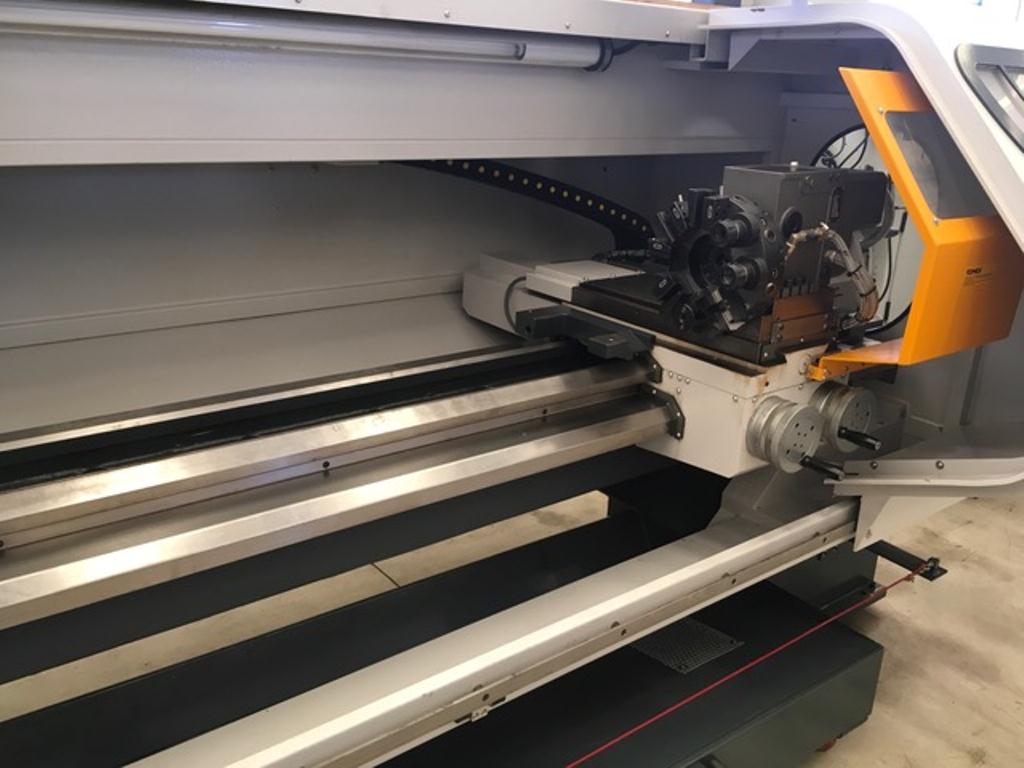

-ELECTRIC TURRET 8 POSITIONS TS 120
EQUIPED WITH TOOL DISC VDI 30.
-TOOLHOLDER KIT VDI 30 (12 PC).
-PULLER BAR CHUCK EQUIPED WITH SOFTWARE FOR SETTING
