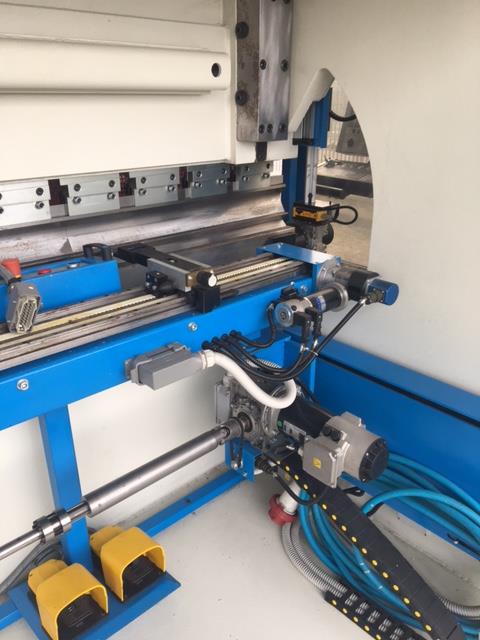

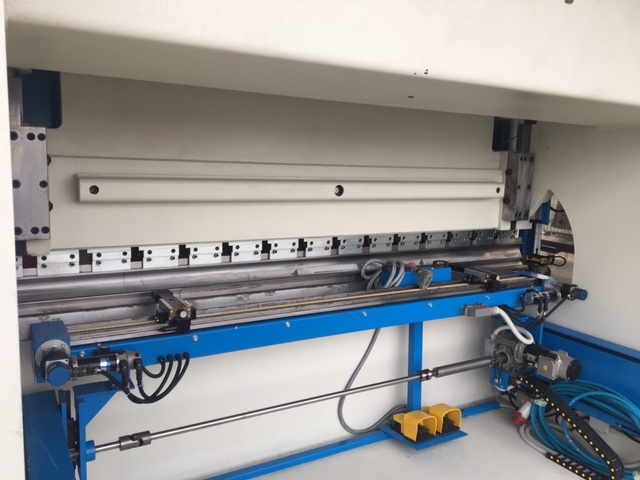

PRESS BRAKE CMU 3ES
Press brake
sheet metal working - Used Machines
.JPG)
.JPG)
CMU
NEW05609
NEW05609
MOD.160/30
HYDRAULIC
SINCHRONIZED
-BED LENGHT MM.3100
-DISTANCE BETWEEN HOUSING MM.2750
-TONNAGE T. 160
-THROAT DEPTH MM.500
-RAM STROKE MM.250
-MAXIMUM HOPEN HEIGHT MM.430
-BED WIDTH MM.130
-TOOL HEIGHT MM.65+100
-DIE HEIGHT MM.60
-MOTOR PUMP KW 18,5
-FAST APPROACH SPEED MM/SEC 130
-PRESSURE SPEED MM/SEC 9,9
-FAST RETURN SPEED MM/SEC 120
-APPROXIMATLY WEIGHT KG. 10.900
-DIMENSIONS MM.1750X2895X600
EQUIPED WITH:

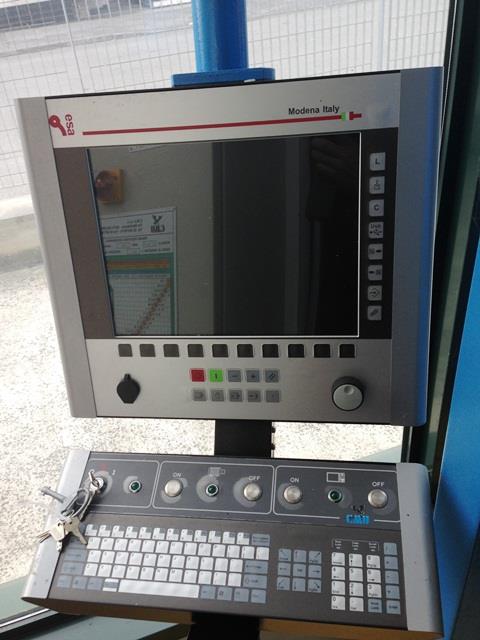

- PROGRAMMER ESA K. VARA MOD. S 550 / 7 AXIS (Y1+Y2+X1+X2+Z1+Z2+R)
- CAMPBERING MECHANICAL TABLE CONTROL BY CNC
- BACK TEGISTER AXIS X WITH BALL SCREWS
- INTERMEDIATE TOOL HOLDERS
- UPPER TOOL STRENGHTHENED AND GRINDED
- MANUAL LUBRIFICATION SYSTEM
NEW MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
