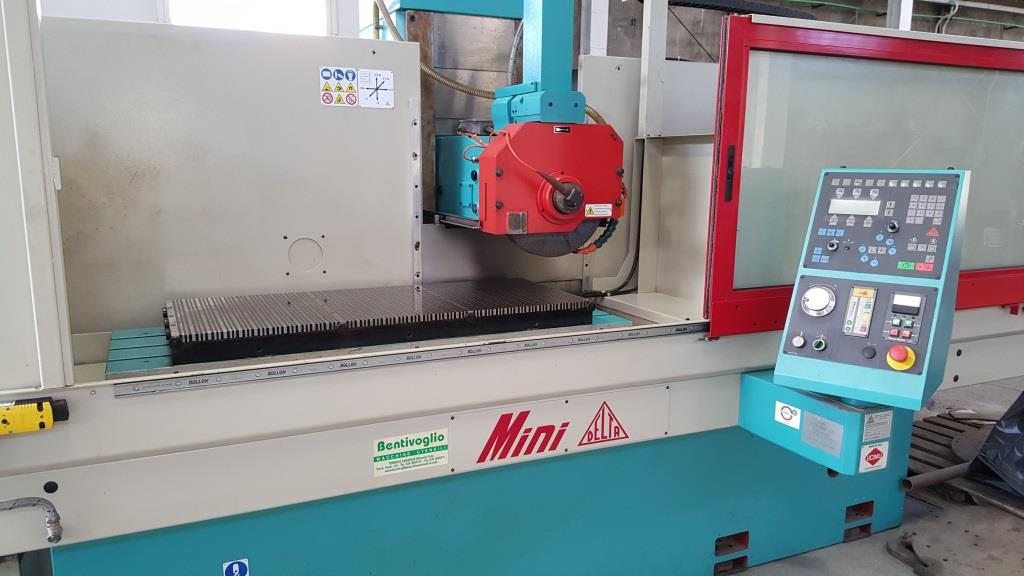

DIASTEP

WORKING CAPACITY:
-Max grinding lenght 1300 mm
-Max grinding width with band wheel 50, 600 mm
-Max grinding width with band wheel 100, 650 mm
-Max distance spindle axis/table surface 800 mm
TABLE (AXIS X):
-Surface size 1200x500 mm
-"T" slots width (Nx3) 18 mm
-Interaxis between slots 125 mm
-Adjustable working speed with continuity 0:40 m/min
-Max longitudinal stroke 1400 mm
-Max allowable weight 1200 kg
CROSS (AXIS Y):
-Max cross stroke 550 mm
-Adjustable working speed with continuity 0:2 m/min
-Min. programmable cross increase 0.001 mm
VERTICAL (AXIS Z):
-Vertical rapid feeedrates 1,5 m/min
-Min. programmable vertical increase 0.001 mm
SPINDLE:
-Power (in S1) 7,5 kW
-Wheel size (IS0 525) 400x50x127-200x10 mm
-Wheel size (IS0 525) 400x100x127-200x10/40 mm
HYDRAULIC UNIT MOTOR (AS. TRIF.):
-Power 4 kW
MOTOR COOLANT ELECTROPUMP (AS. TRIF.):
-Power 0.18 kW
MASS:
-Approx net weight 6000 kg

STANDARD EQUIPMENT:
-Ground precision ballscrews (ISO 3) with double preloaded nut on vertical axes (Z axis) and cross (Y-axis)
- Proportional hydraulic drive for the movement of the longitudinal table (X)
- Electronic resolution with double resolution (0.001 / 0.01 mm) for manual movement of X and Y axes
Hydraulic unit (oil-free) complete with heat exchanger
-Electric external power station and control pulpit with low voltage controls. 380 V / 50 Hz power supply - three phase + neutral
- Coolant system with sheet metal tank and 0.18 kW electric pump
- Grinding wheel holder, grinding wheel. 400x50x127 - 200x10 mm, locking nut and extractor
Diamond-holder without diamond
-Carter protection

COMPLETE MACHINE OF:
- Balancing shaft
-Electropermanent table 1200x500 mm with power adjustment and automatic removal of the magnetic part of the anchored piece
-Wheel electrical balancing
-Halogen lamp

YEAR 2008
