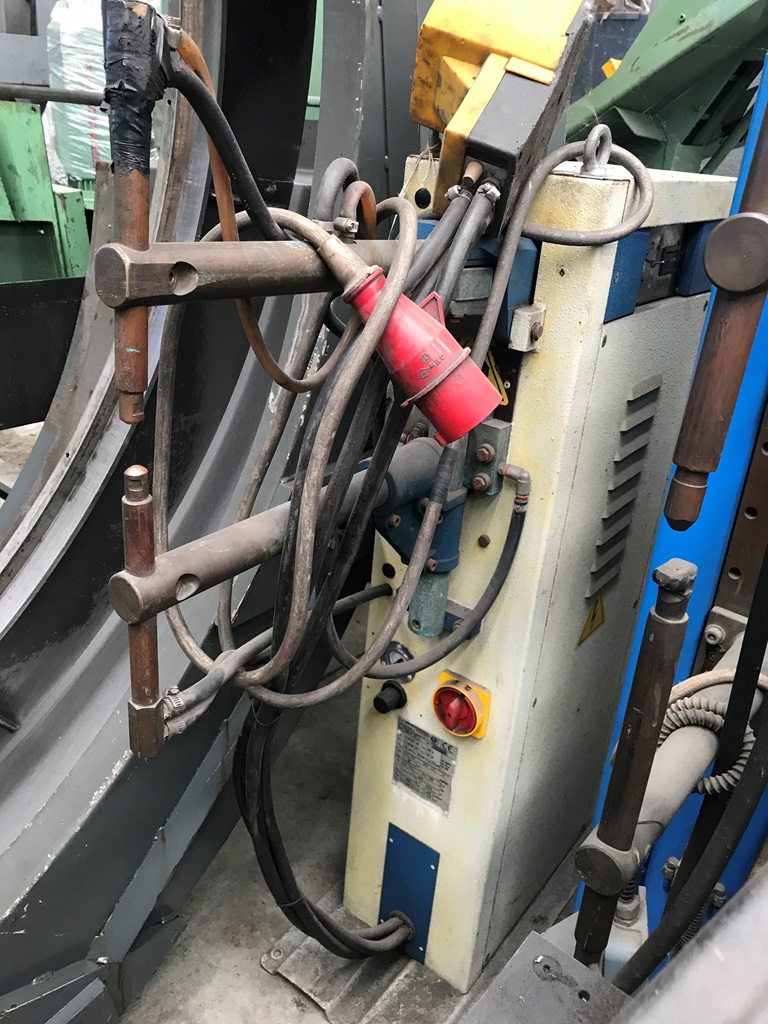

SPOT WELDING CEA NKLP 21
Spot welders
welding - Used Machines
CEA
07776
07776
Nominal maximum power kVA 20
Nominal power at 50% duty ccyle 50% kVA 16
Maximum short-circuit power kVA 45.6
Maximum welding power kVA 36.5
Mains voltage frequency HZ 50-60
Secondary open-circuit voltage V 3.5
Maximum short-circuit secondary current kA 11.6
Maximum welding secondary current kA 9.3
Electrode throat depth mm 455
Throat gap mm 173-410
Electrode-arm diameter mm 40
Electrode holder diameter mm 21
Electrode diameter mm 16
Electrode taper 10%
Standard distance between electrodes mm 20
Max distance between elctrodes mm 45
Electrode force N 1800
Air pressure kPa 500
Overall dimensions mm 980x330x1200h
Weight Kg 118
USED MACHINE
