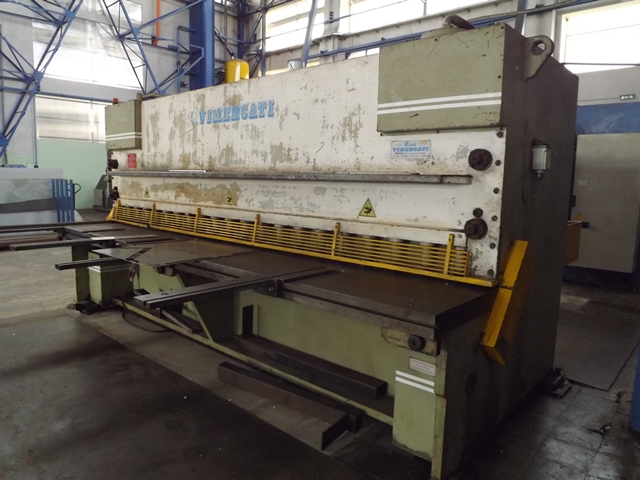

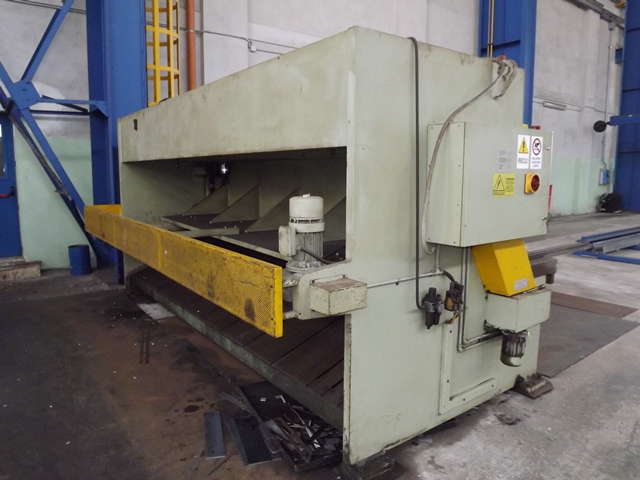

SHEAR GUILLOTINE VIMERCATI MOD. 4050x10
Guillotines shear
sheet metal working - Used Machines
VIMERCATI
06113
06113
Max cutting capacity mm 10
Max cutting lenght mm 4050
Distance between columns mm 4200
Cutting angle adjustment da 30' a 2°
Max register stroke mm 1000
Stroke per minute value min n°15
Stroke per minute value max n°25
Main motor power Hp 25
Register motor power Hp 1
Electric connection V/Hz 380/50
Tank hydraulic system capacity Lt 350
Weight Kg 13.800
Overall size:
-Height mm 2200
-Lenght mm 4650
-Width mm 2250
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
