CENTER LEADWELL MOD. MV1000
Single pallet
machine center - vertical - Used Machines
LEADWELL
06770
06770

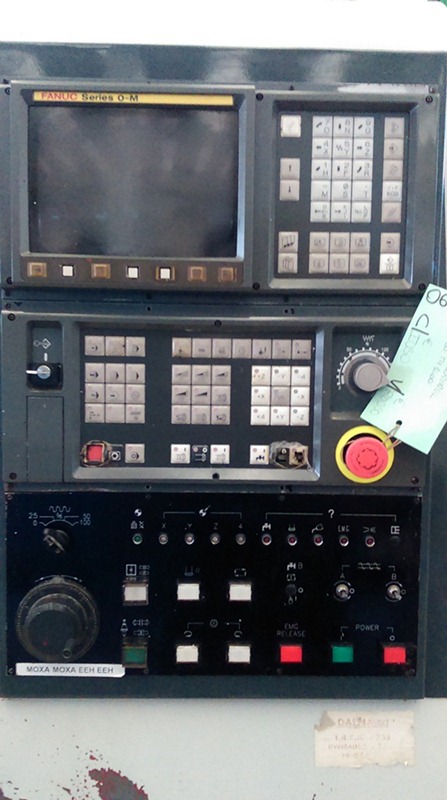

CNC FANUC O-M

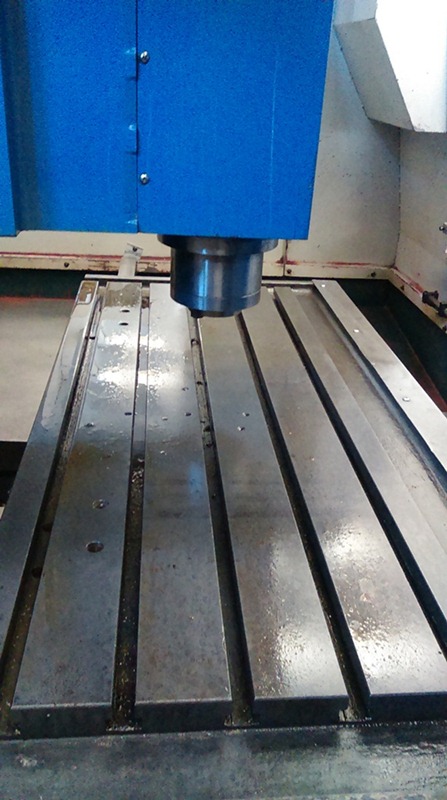

TABLE:
-Table dimensions mm 1400x640
-Max load Kg 700
STROKES:
-Axis X mm 1020
-Axis Y mm 510
-Axis Z mm 610
-Distance between spindle nose/table mm 160-770
SPINDLE:
-Spindle taper 7/24(#40)
-Spindle speed rpm 80-8000
-Motor power 30 min/continuous kW 9/11
AUTOMATIC TOOL CHANGE:
-Tool taper BT-40
-Tools number 24
-Max tool diameter mm 100
-Max tool weight Kg 7/pezzo
-Max tool lenght mm 250
POWER:
-Absorption power kva 25
MACHINE DIMENSIONS:
-Lenght mm 4000
-Depth mm 2240
-Height mm 2700
-Weight kg 6000
USED MACHINE
