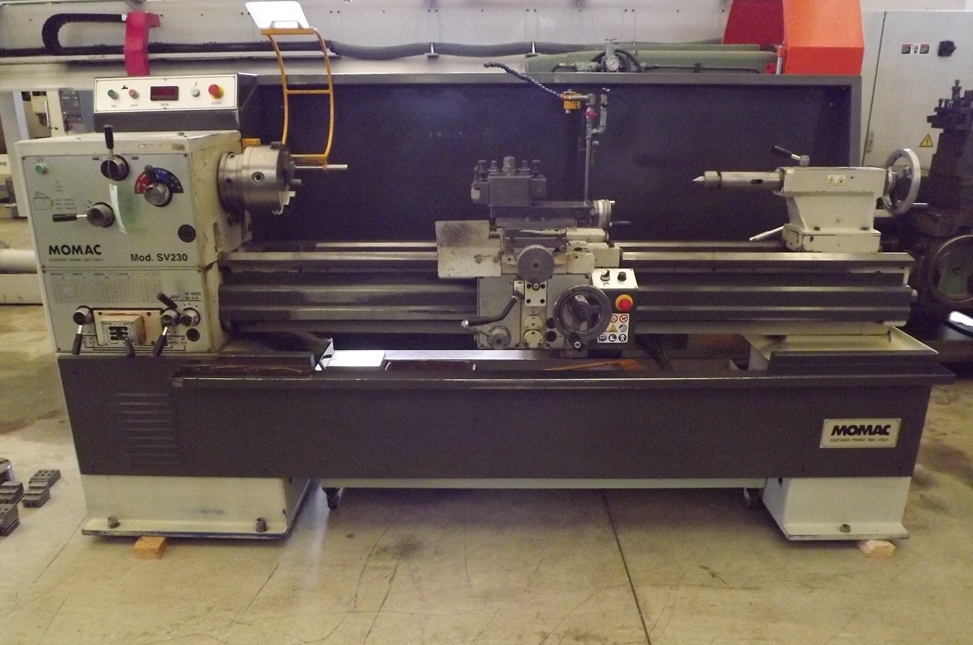

LATHE MOMAC MOD. SV230
Diameter up to 600 mm
lathe conventional - Used Machines
MOMAC
06866
06866
Height of center 230 mm
Disance between centers 1500 mm
Max turning diameter over bed 450 mm
Max turning diameter over gap 640 mm
Max turning diameter over longitudinal slide 410 mm
Bed width mm 300
Gap width mm 250
Spindle bore mm 52
CAM-LOCK attachment 6''
Taper center CM 4
Spindle speed rpm 0-2300
Spindle motor power HP 7,5
Cross saddle stroke mm 300
Upper saddle stroke mm 125
Quill diameter mm 58
Quill stroke mm 155
Quill taper CM 4
Weight 1400 Kg
EQUIPPED WITH:

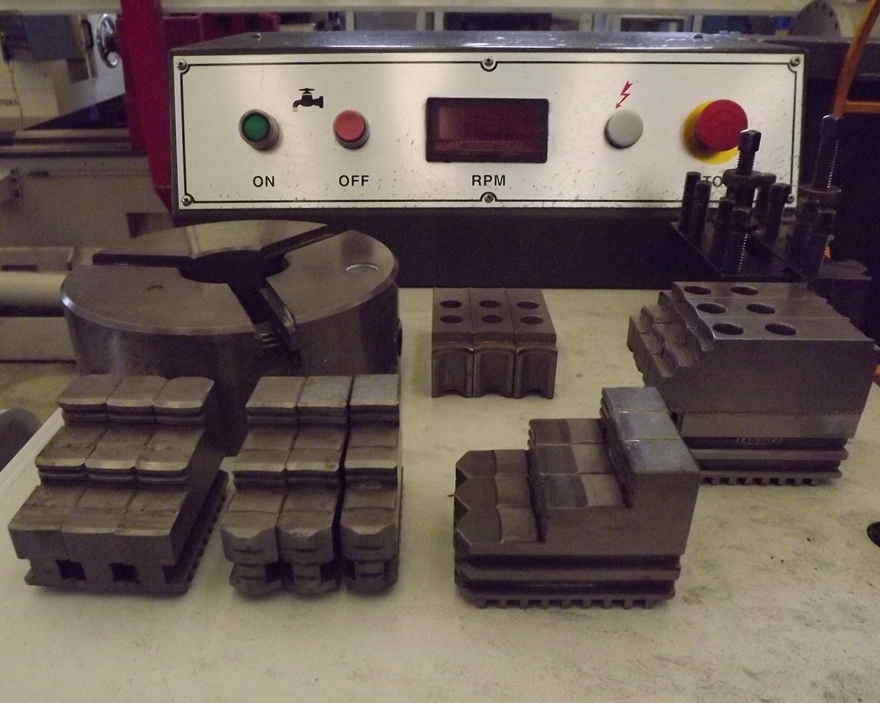

Double guide chuck diam. mm 230 3+3+3
Plateau 3 jaws diam. mm 200
Quick change tool post type B - n.04 tool holders
Live center

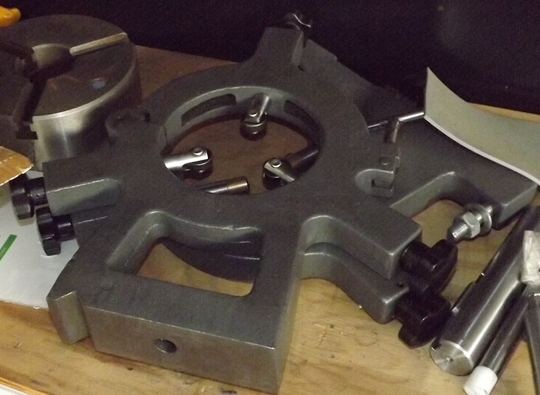

Steady rest mm 140
Follow rest mm 130
USED MACHINE
YEAR 2008
FILL OUT OUR FORM FOR MORE INFORMATION
