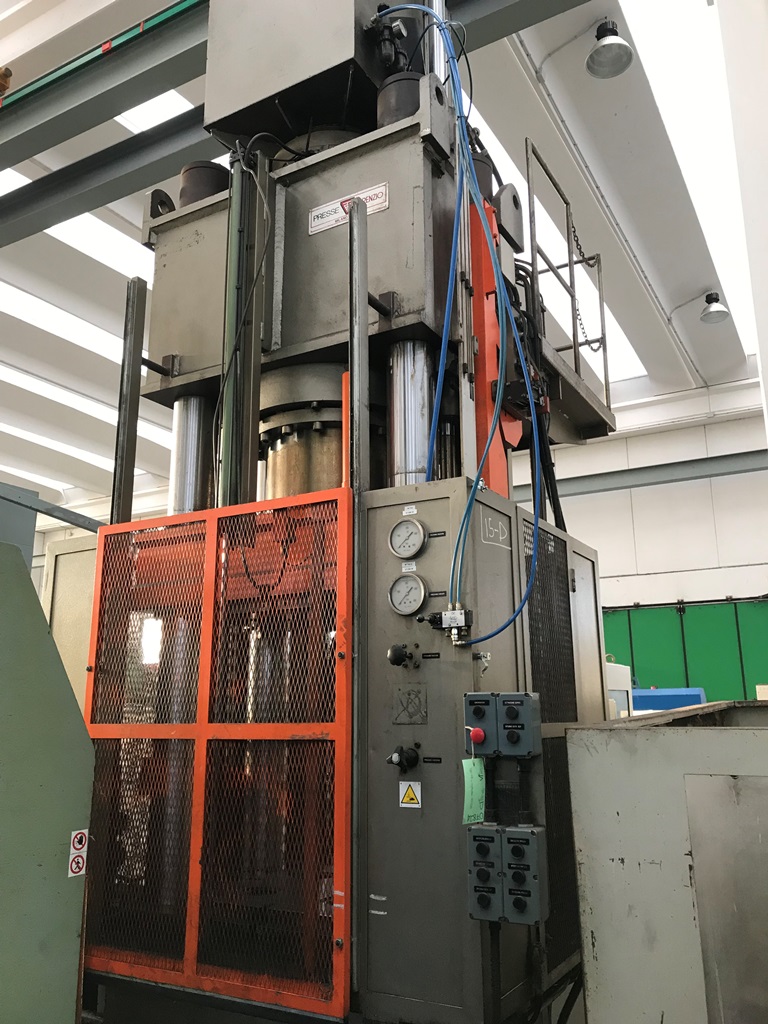

PRESS TERENZIO T 400 B/S
Oleodinamic 4 column
press - Used Machines
TERENZIO
07824
07824
4 COLUMNS
Max power KN 4000
Max pressure Bar 200
Piston diameter mm 505
Stroke of moving bench mm 800
N.2 benches
N.1 working spaces
Day light of each bench mm 1000
Benches dimensions mm 700x700
Moving bench opening force Tons 20
Lower ejector force Tons 10
Lower ejector stroke mm 150
Upper ejector force Tons 5
Upper ejector stroke mm 150
Approach speed mm/sec 166
Working speed mm/sec 5,2
Opening speed mm/sec 105
Motor power KW 30
Voltage 380 V
Overall dimensions mm 1800x5250x2200
Machine weight Kg 13700
USED MACHINE
IMAGES:
