CENTER QUARTZ VL-850
Single pallet
machine center - vertical - Used Machines
QUARTZ
07257
07257

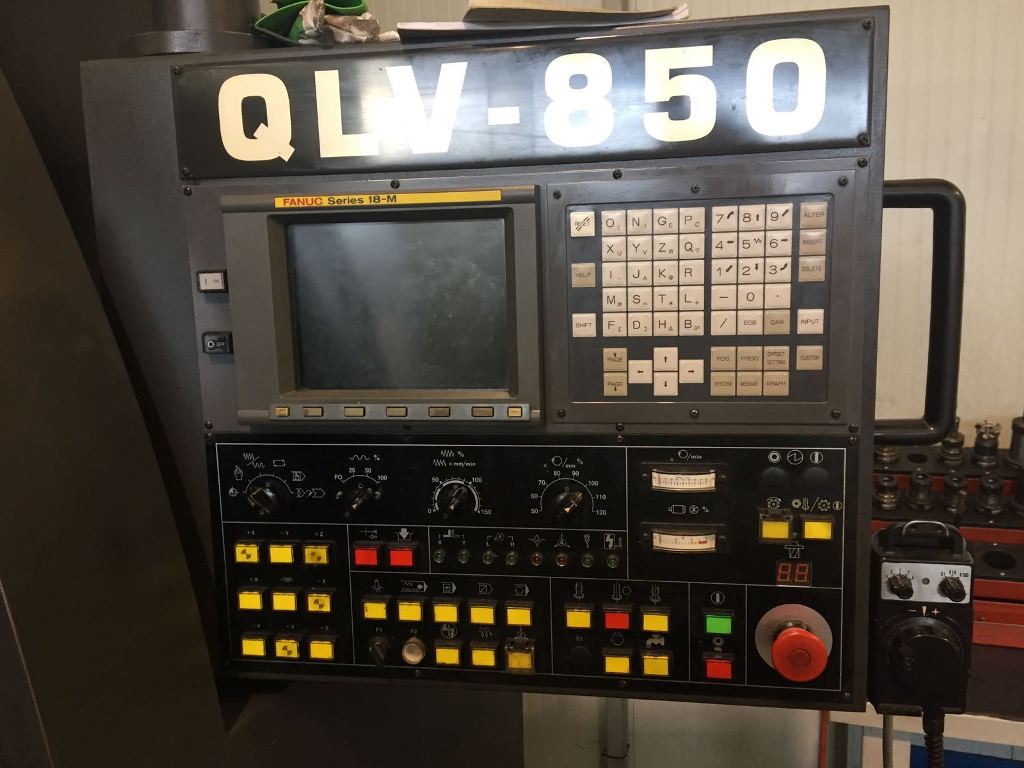

CNC FANUC 18-M
TABLE:
-Table dimensions mm 1000x545
-Width, number and pitch T-slots mm 18x4x125
-Max load Kg 1000
STROKES:
-Axis X mm 850
-Axis Y mm 560
-Axis Z mm 635
-Distance between spindle and table mm 100-735
-Distance between spindle center to column mm 540
SPINDLE:
-Spindle taper BT-40
-Spindle speed rpm 8000
MAGAZINE AND AUTOMATIC TOOL CHANGE:
-Magazine capacity n.24
-Max tool diameter mm 75
-Max tool lenght mm 300
-Max tool weight Kg 6
MOTORS:
-Spindle motor power (continuous/30 min) kW 7,5/11
MACHINE DATA:
-Total installed power kW 20
-Overall dimensions mm 2460x2200
-Total weight machine Kg 5500
EQUIPPED WITH:

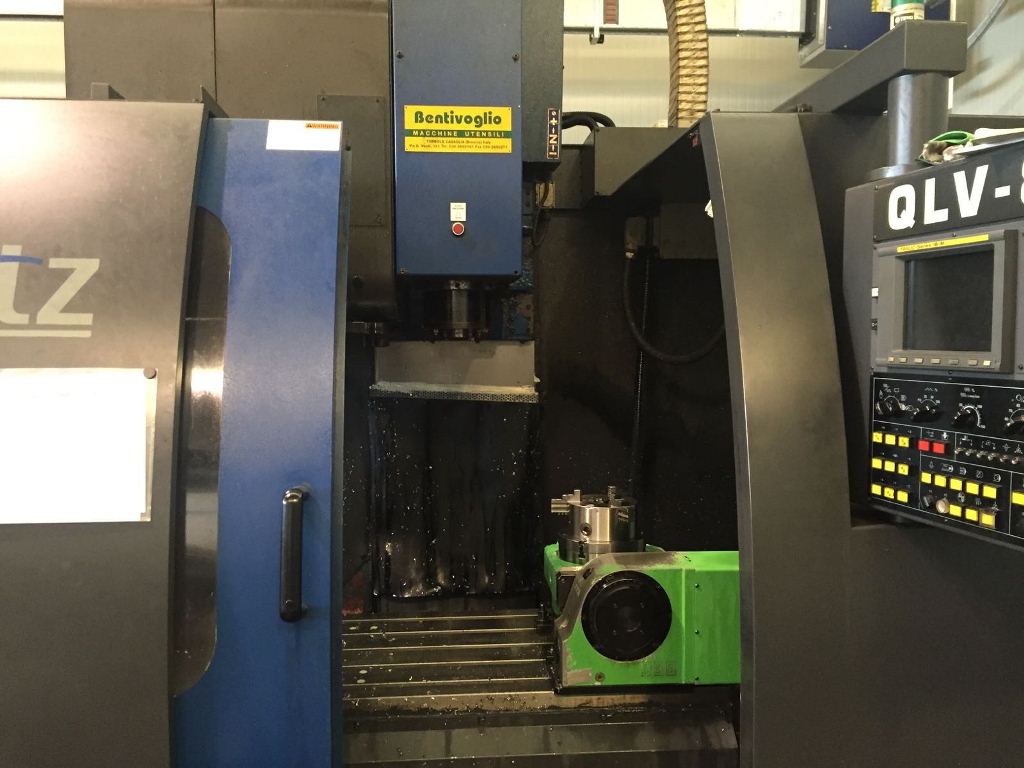

-N.01 rotary table BSC 200 CNC
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
