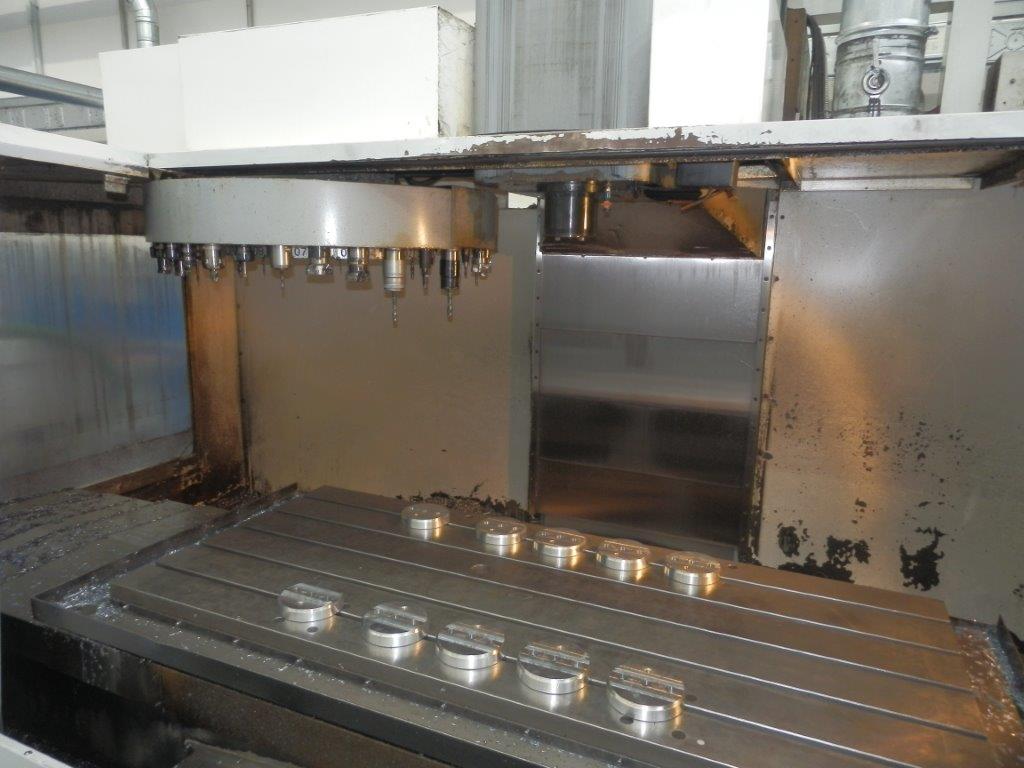

CENTER MIKRON MOD. VCE 1600
Single pallet
machine center - vertical - Used Machines
MIKRON
06708
06708

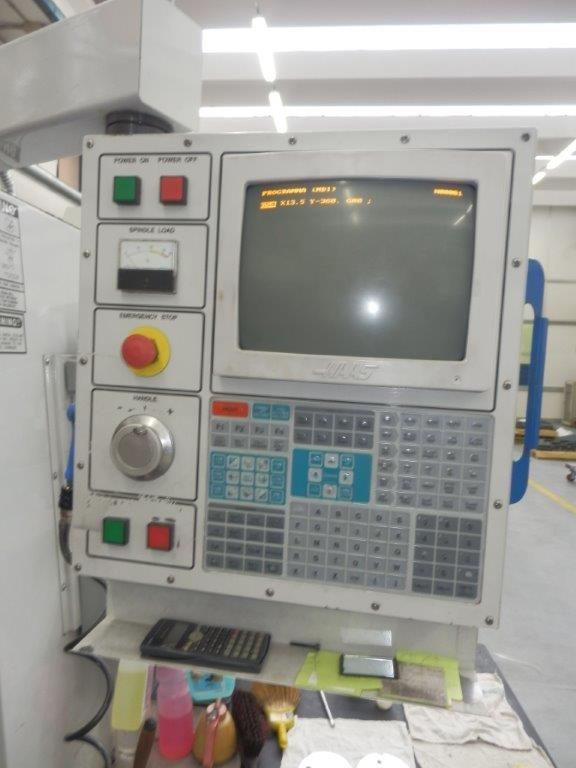

CNC HAAS
Table dimensions 1625x710 mm
Max load capacity 1800 Kg
Axis X 1620 mm
Axis Y 810 mm
Axis Z 760 mm
Rapid feed axis X 13 m/min
Rapid feed axis Y 15 m/min
Rapid feed axis Z 15 m/min
Spindle speed 7500 rpm
Spindle motor power 11 Kw
Spindle taper ISO 40 - DIN
Carousel typer tool magazine / 32 positions
Overall dimensions 5000x3500x3000 mm
Equipped with:
Gear change
USED MACHINE
