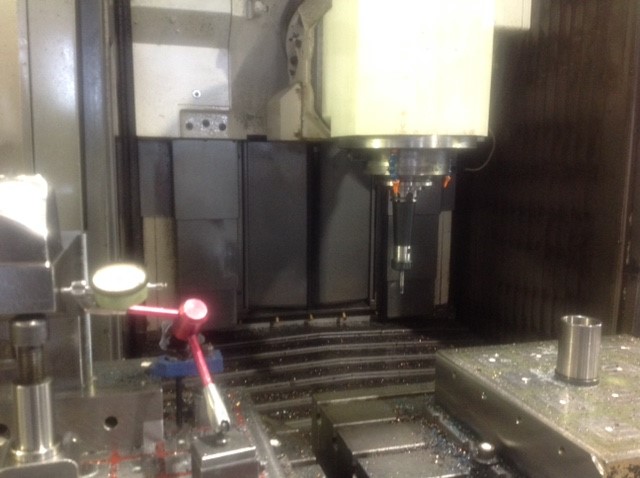

MILLING HURON MOD. EX-N 30
With rotary table
07851
5 AXIS

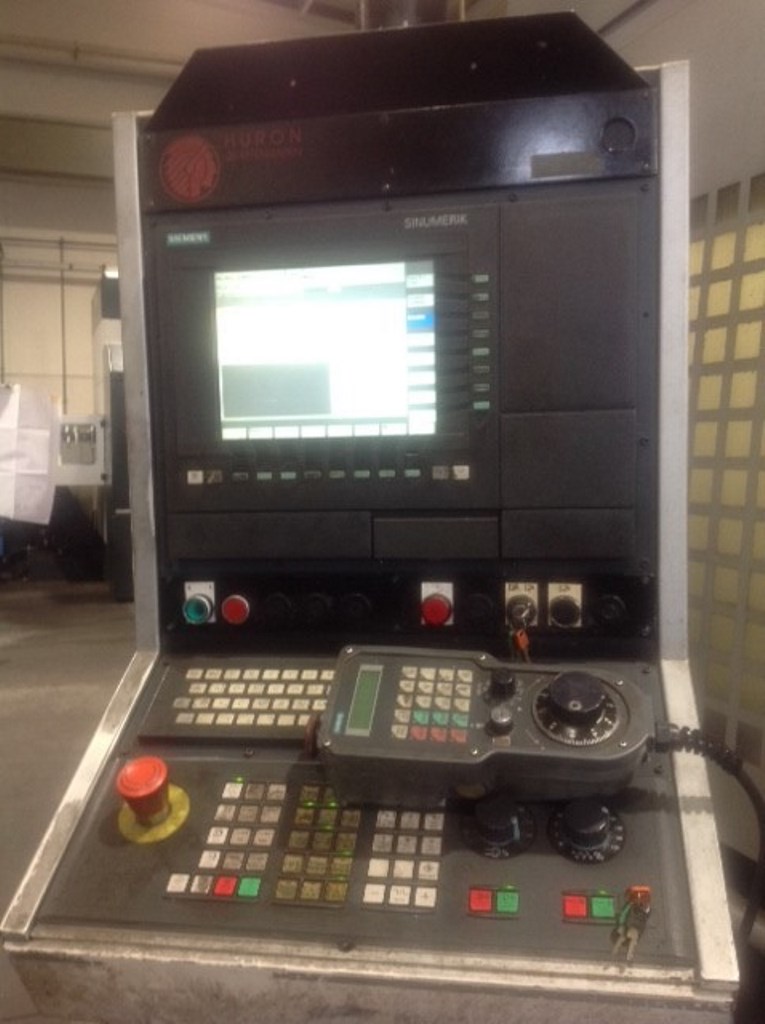

CNC SINUMERIK 840D
STROKE:
X-axis longitudinal stroke mm 2400
Y-axis cross stroke mm 700
Z-axis vertical stroke Z mm 600
FIXED TABLE:
Dimensions mm 1600x600
Load Kg 2400

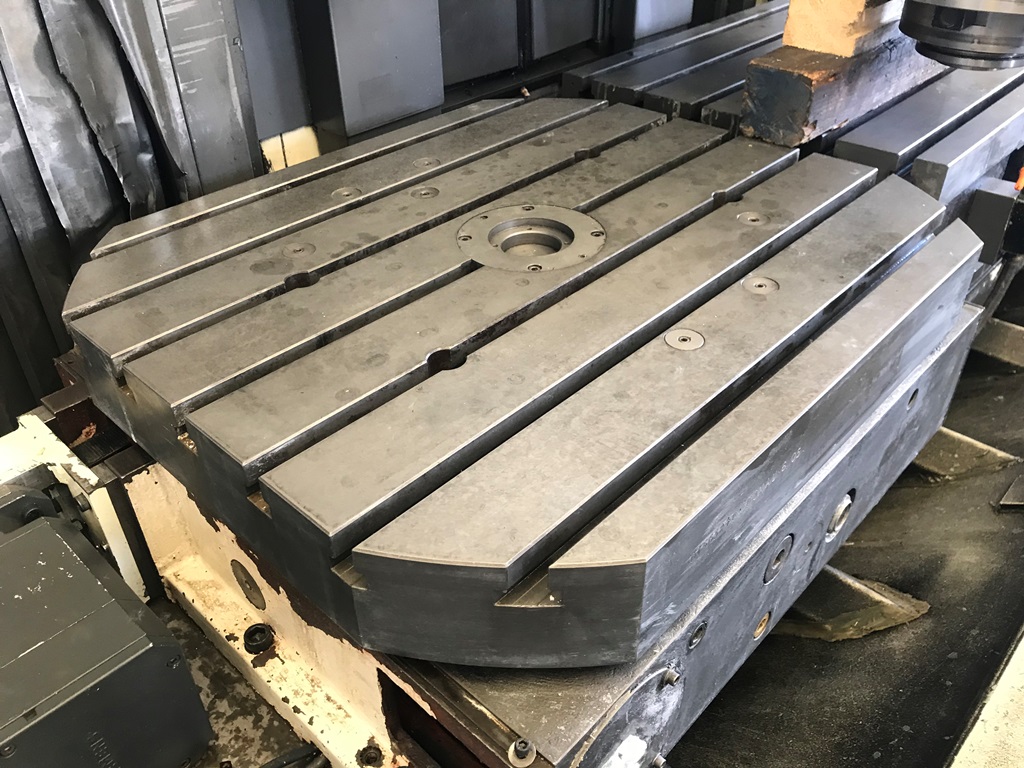

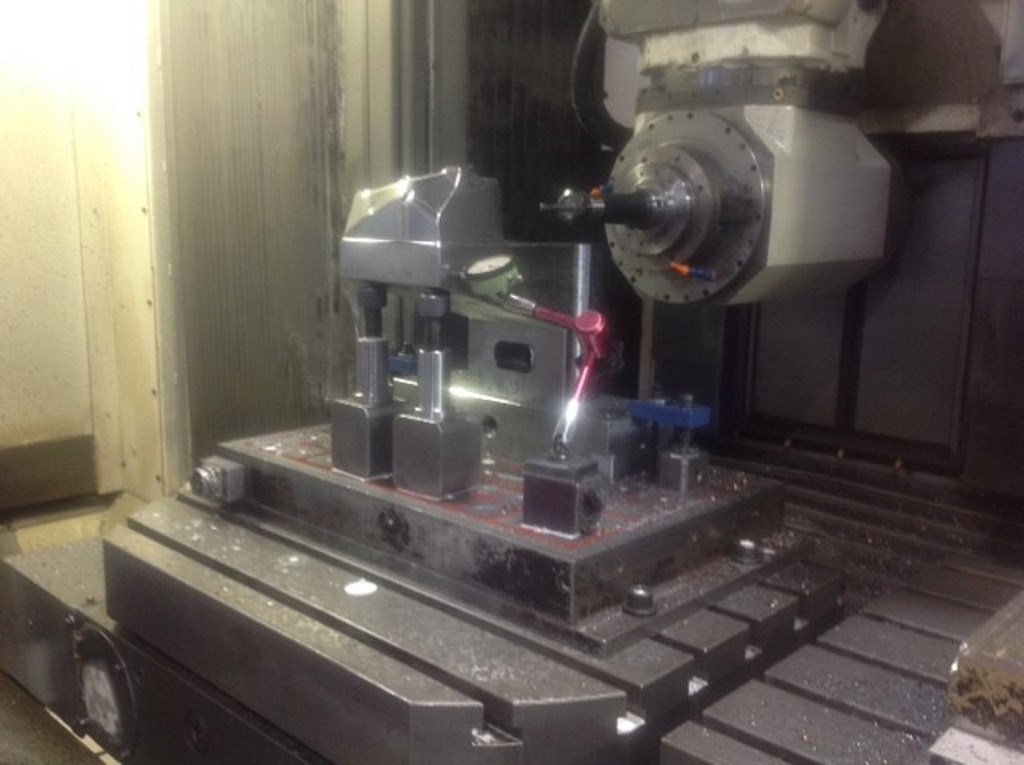

ROTARY TABLE:
Dimensions mm 800x700
Load Kg 1200
SPINDLE:
Cone HSK A-63
Spindle speed rpm 100-14000
Spindle motor power kW 25

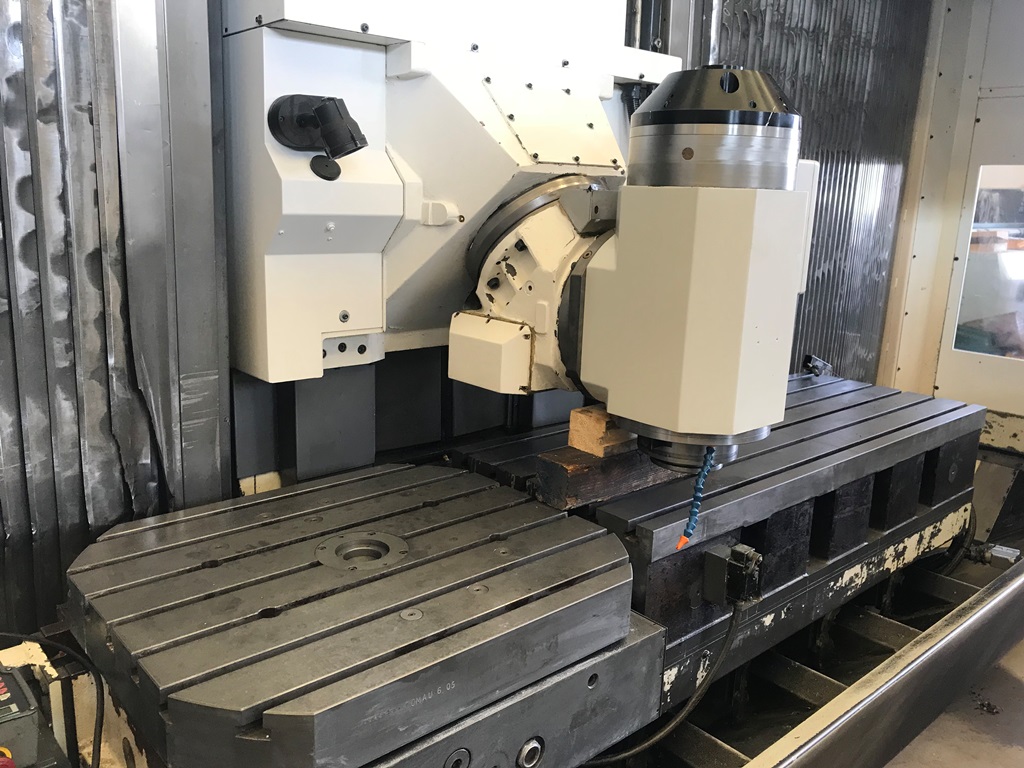

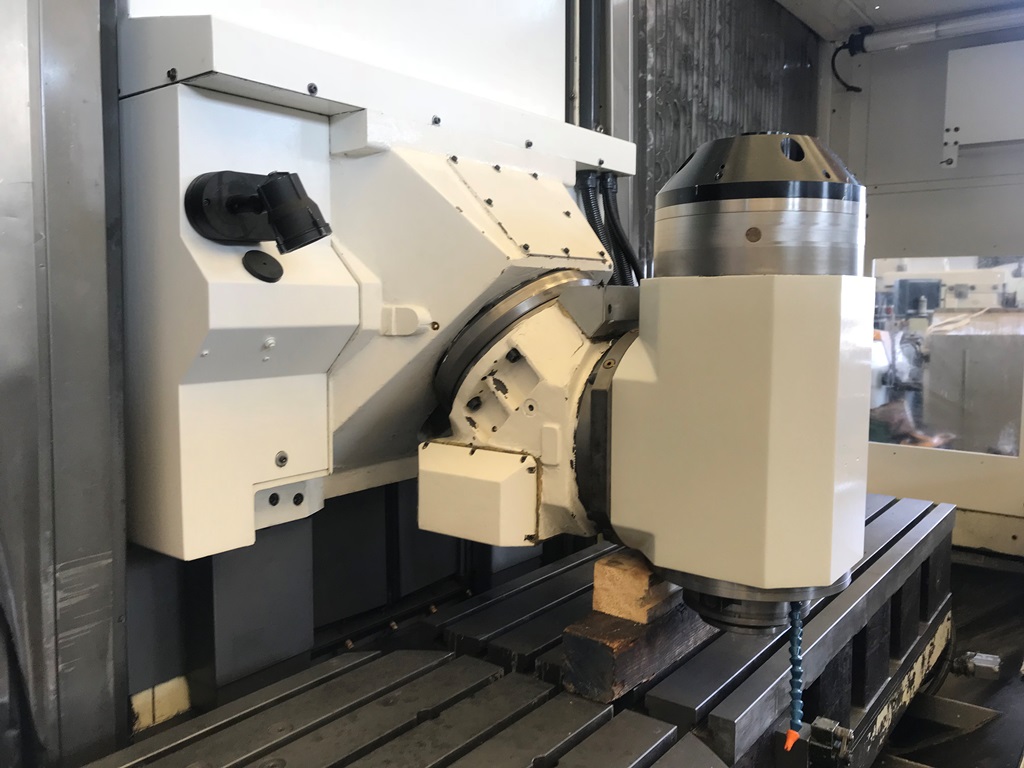

HEAD N:
Comando assi asse di posizionamento
Posizionamento asse A (nel piano a 45 gradi) 2 posizioni H/V
Posizionamento asse B (nel piano X-Z) +/- 90 gradi
Incremento di misura asse B 0,001 grado
TOOL MAGAZINE:
Tool magazine 32 positions
Max tool diameter mm 100
Max tool weight Kg 10
Max tool lenght mm 300
EQUIPPED WITH:
-High pressure through spindle 15 bar
-Alta pressione esterna mandrino
-Sistema aria esterna
-Aspirazione nebulizzazioni d'olio e fumi
-Remote handwheel
-Chain type chip conveyor
USED MACHINE
