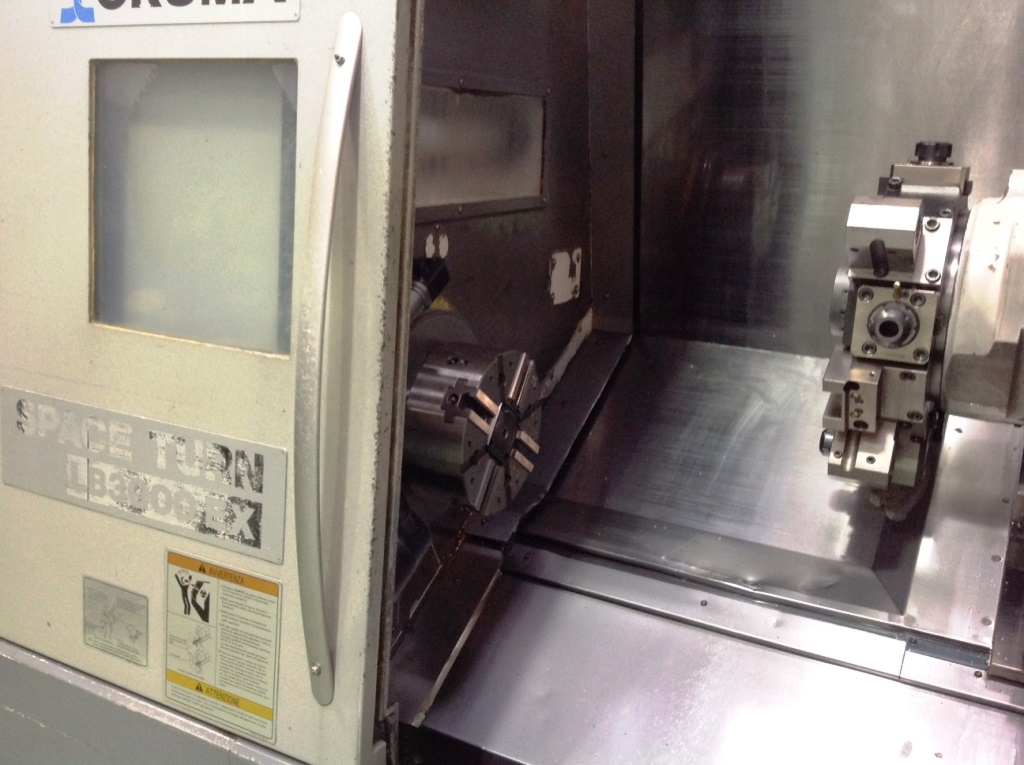

LATHE OKUMA MOD. SPACE TURN
With live tools
07460
LB 3000 EX (MY) Cx950
AXIS Y
LIVE TOOLS

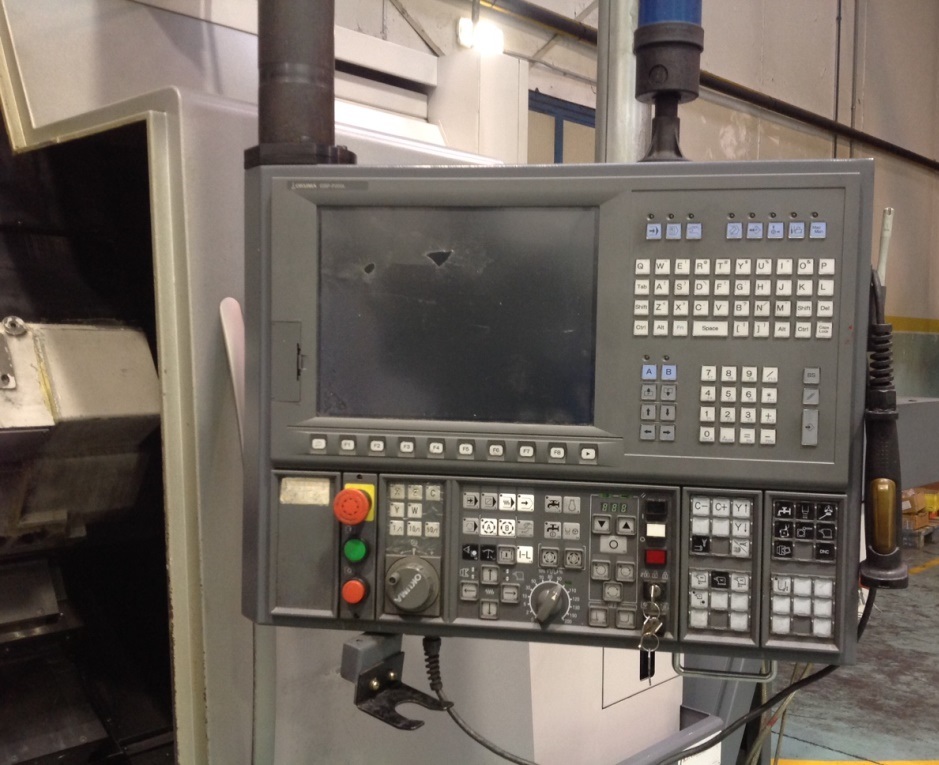

CNC OKUMA OSP-P200L
CAPACITY:
Max swing diameter over bed mm 580
Max swing diameter over carriage mm 470
Distance between centers mm 970
Max turning diameter mm 340
Max piece lenght mm 950
STROKES:
X axis mm 260
Z axis mm 1010
Y axis mm 120 (+70/-50)
Axis C 360 degrees
SPINDLE:
Spindle nose JIS A2-8
Spndle bore mm 91
Spindle speed rpm 42-4200
Spindle motor power kW 30/22 (30 min/cont.)

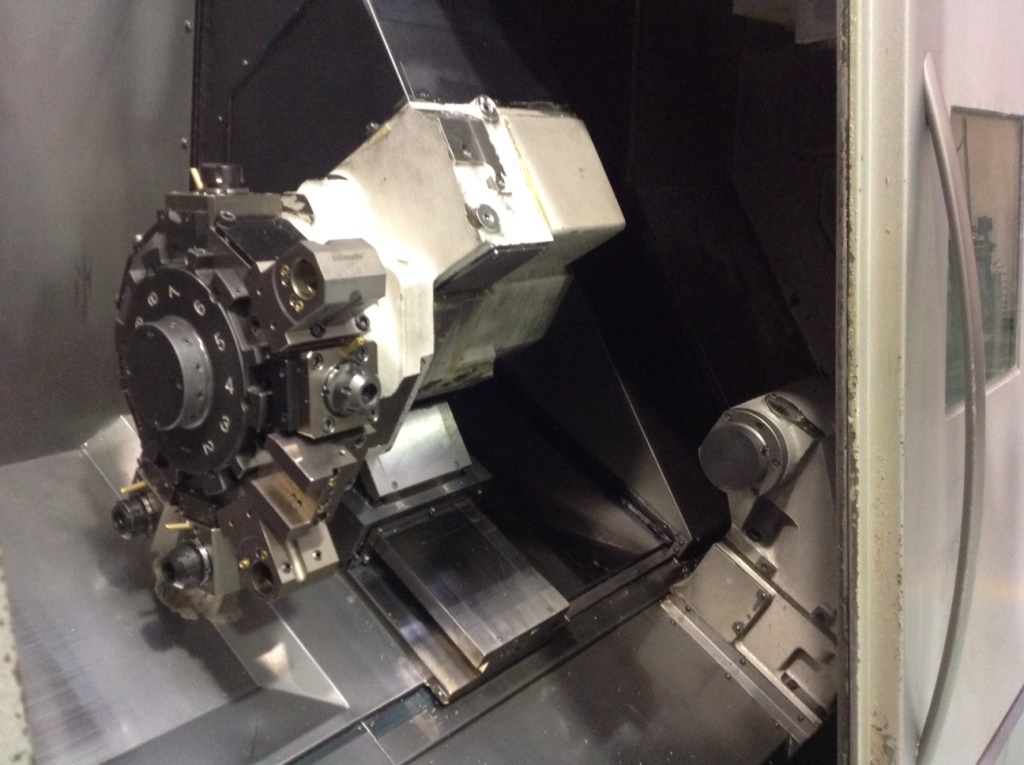

TURRET:
N. 12 tools
ROTARY TOOL SPINDLE:
Spindle speed rpm 45-6000
TAILSTOCK:
Taper hole MT No. 5
Quill stroke mm 1015
OVERALL DIMENSIONS AND WEIGHT:
Height mm 2455
Floor space mm 3380x2040
Weight Kg 6600
EQUIPPED WITH:
Chip conveyor
USED MACHINE
YEAR 2008
