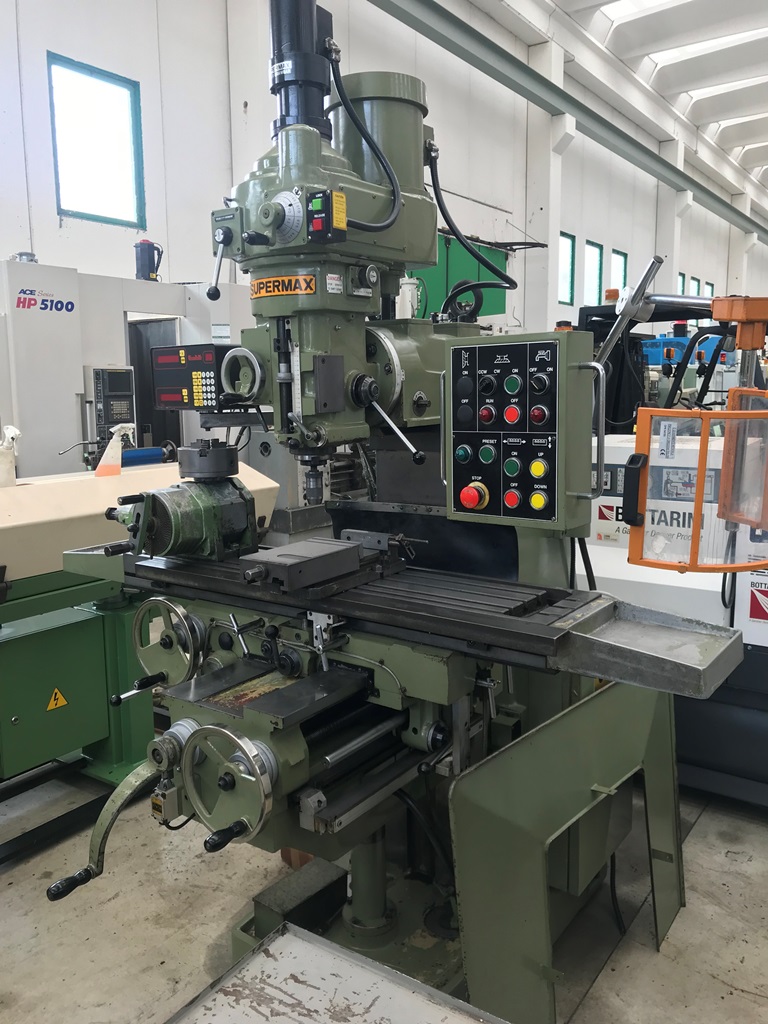

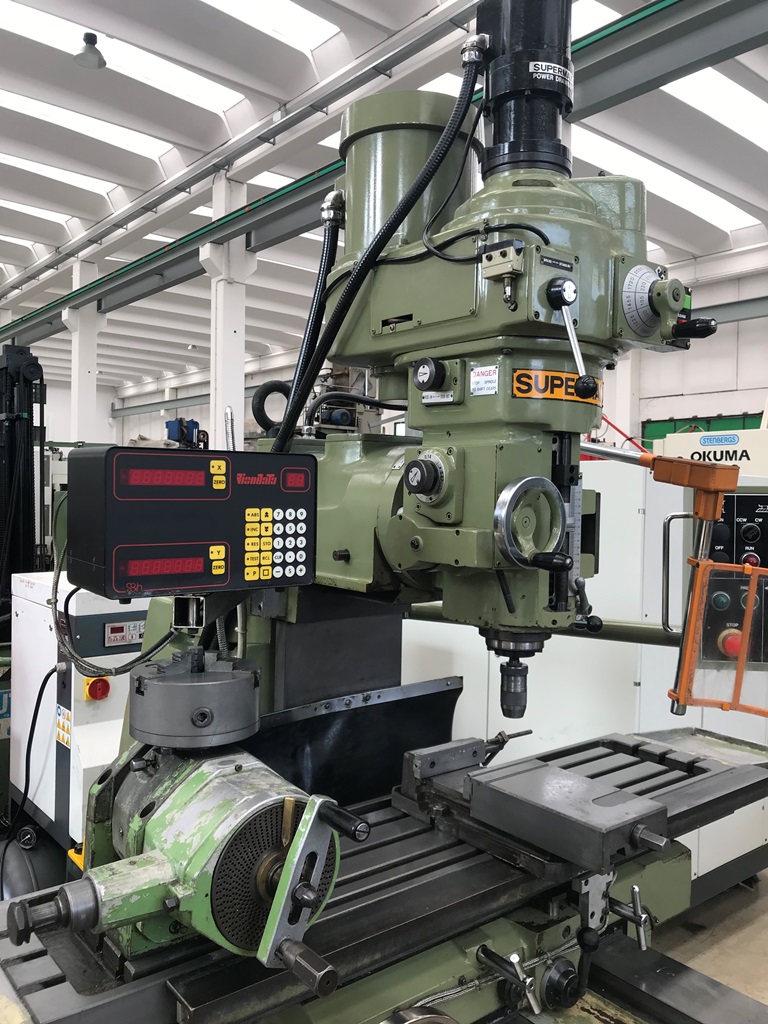

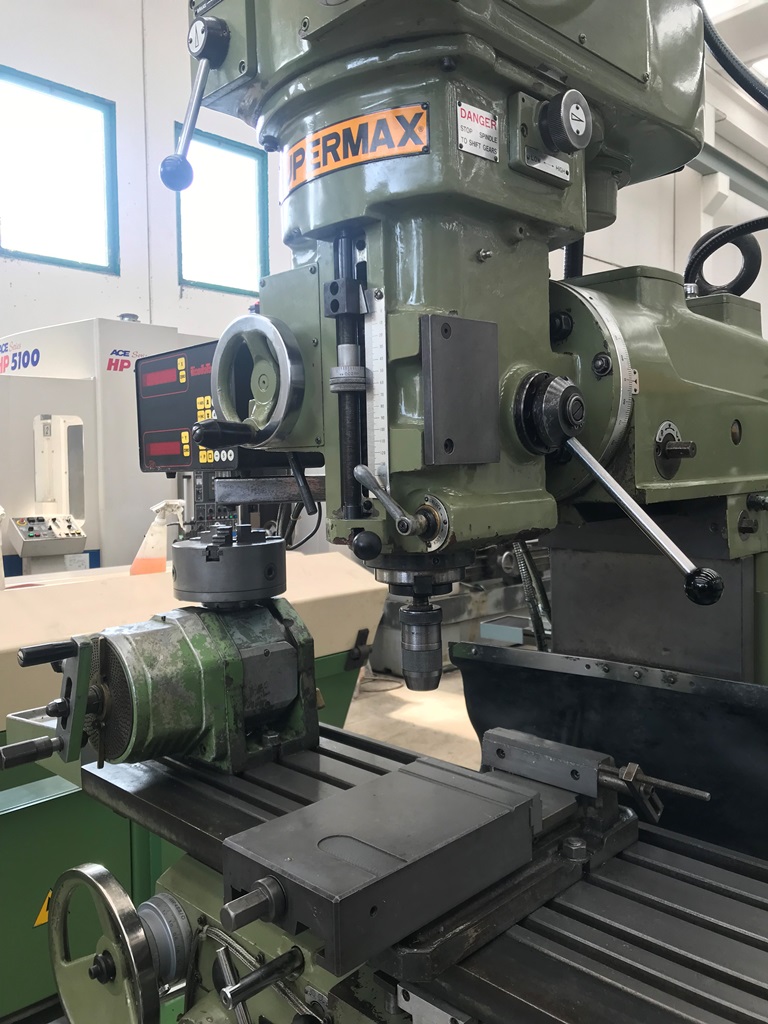

RAPID HEAD MILLING SUPERMAX YCM-2VAS
Rapid head
milling - Used Machines
SUPERMAXX
07856
07856
RAPID HEAD
TABLE AND STROKES:
Dimensions mm 1300x280
Longitudinal stroke mm 1000
Cross stroke mm 315
Vertical stroke mm 450
SPINDLE:
Spindle speed Rpm 70-3165
Spindle taper NST 40
Spindle motor power kW 3.7
Quill travel mm 140
RAM travel mm 540
Head swivel angle +45/-135 degrees
RAM swivel angle +/- 45 degrees
OVERALL DIMENSIONS AND WEIGHT:
Overall dimensions mm 1780x1900x2285
Net weight Kg 2200
EQUIPPED WITH:
-Axis X,Y motorized
-Chip conveyor tank
-Head cover
-DRO 2 axis
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
