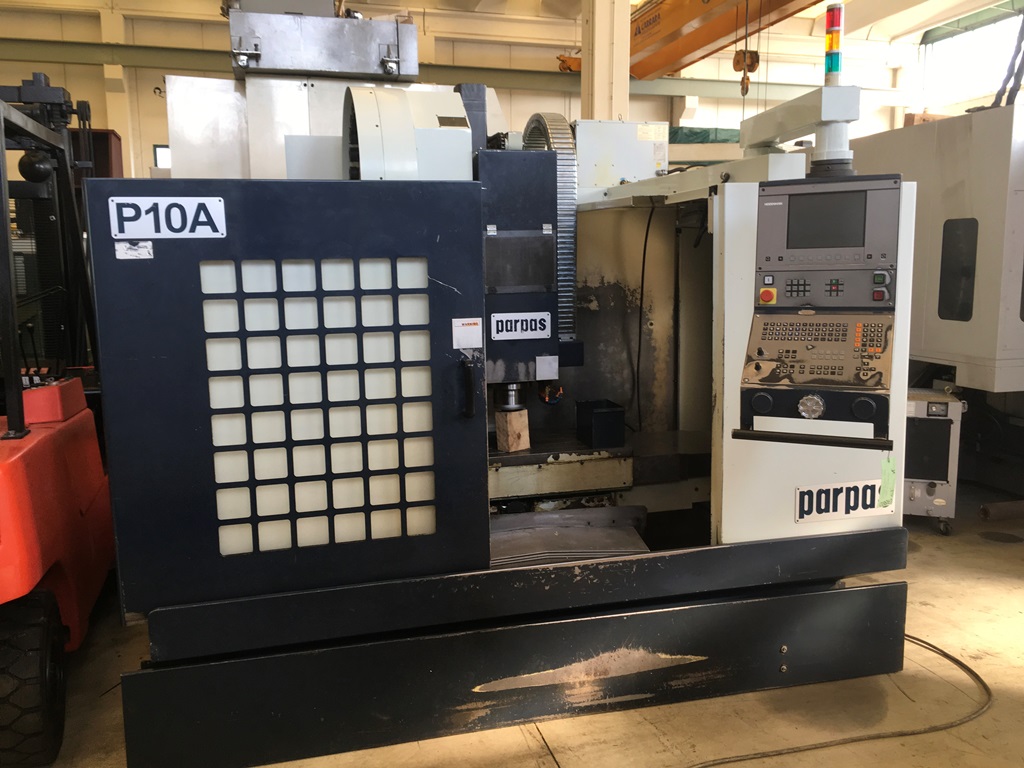

CENTER PARPAS P10-A
Single pallet
machine center - vertical - Used Machines
PARPAS
07880
07880

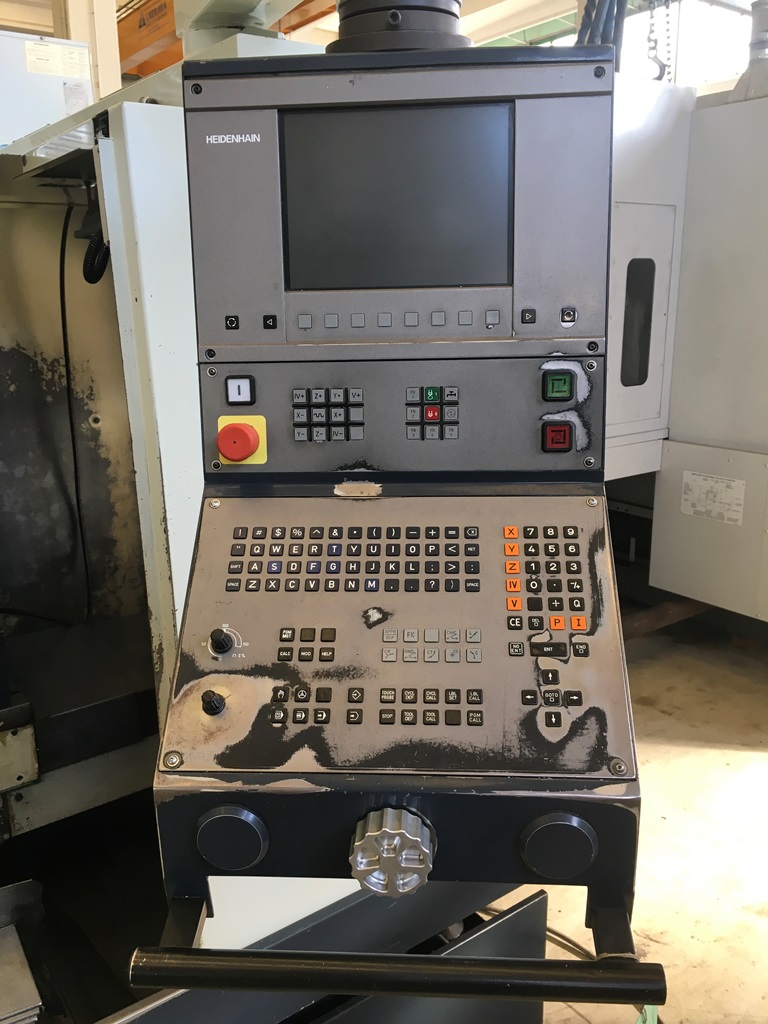

CNC HEIDENHAIN TNC 426
TABLE:
Table dimensions mm 1060x510
T-slots mm 18x5
STROKES:
Axis X mm 1000
Axis Y mm 510
Axis Z mm 560

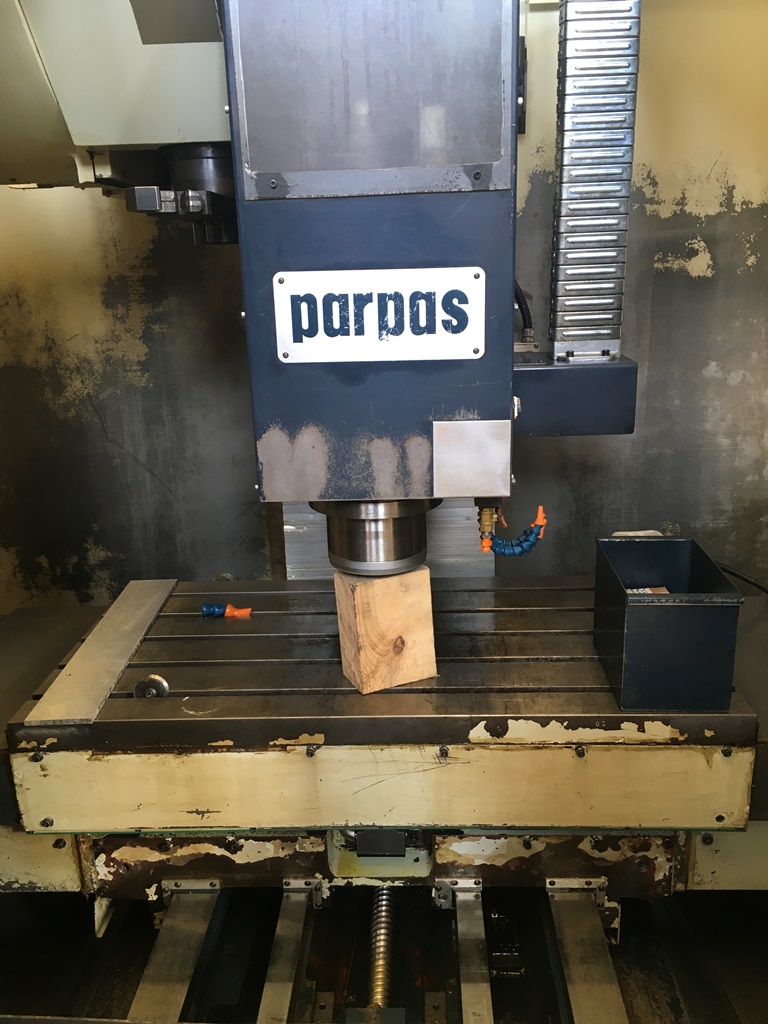

SPINDLE:
Spindle nose ISO 40
Spindle speed rpm 12000

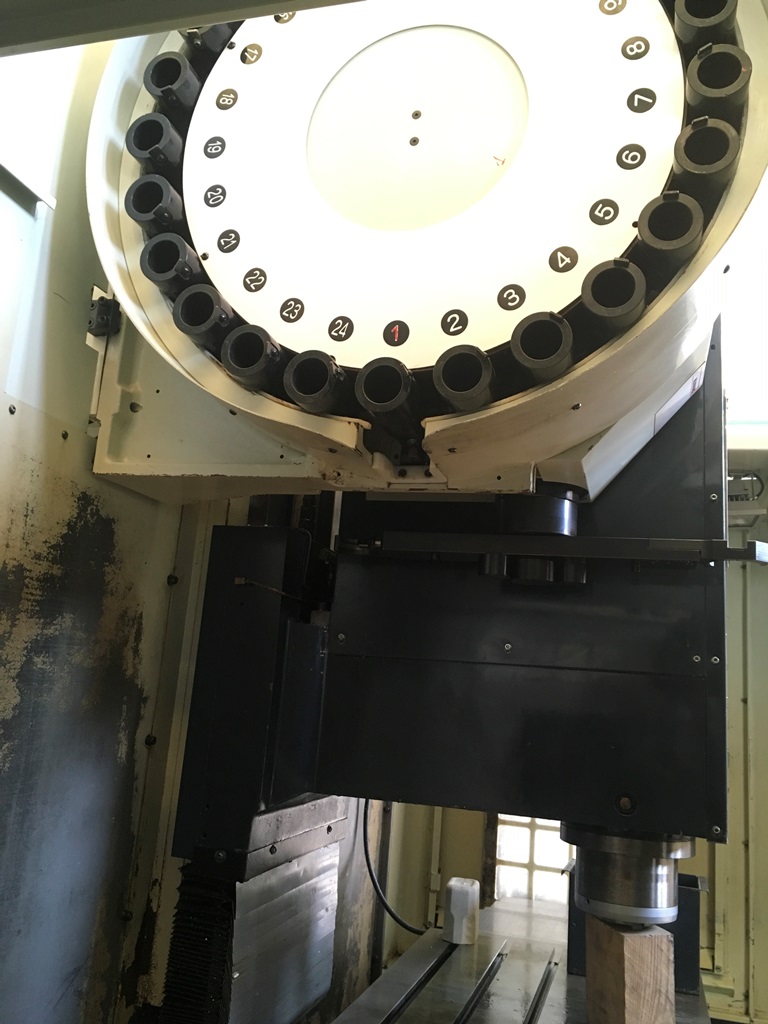

TOOL CHANGE:
Tool change 24 positions
Max tool weight Kg 7
Max tool diameter mm 90
Max tool lenght mm 250
Tool shank BT-40
DIMENSIONS AND WEIGHT:
Approx. machine weight Kg 6500
Floor space mm 3000x3200
EQUIPPED WITH:

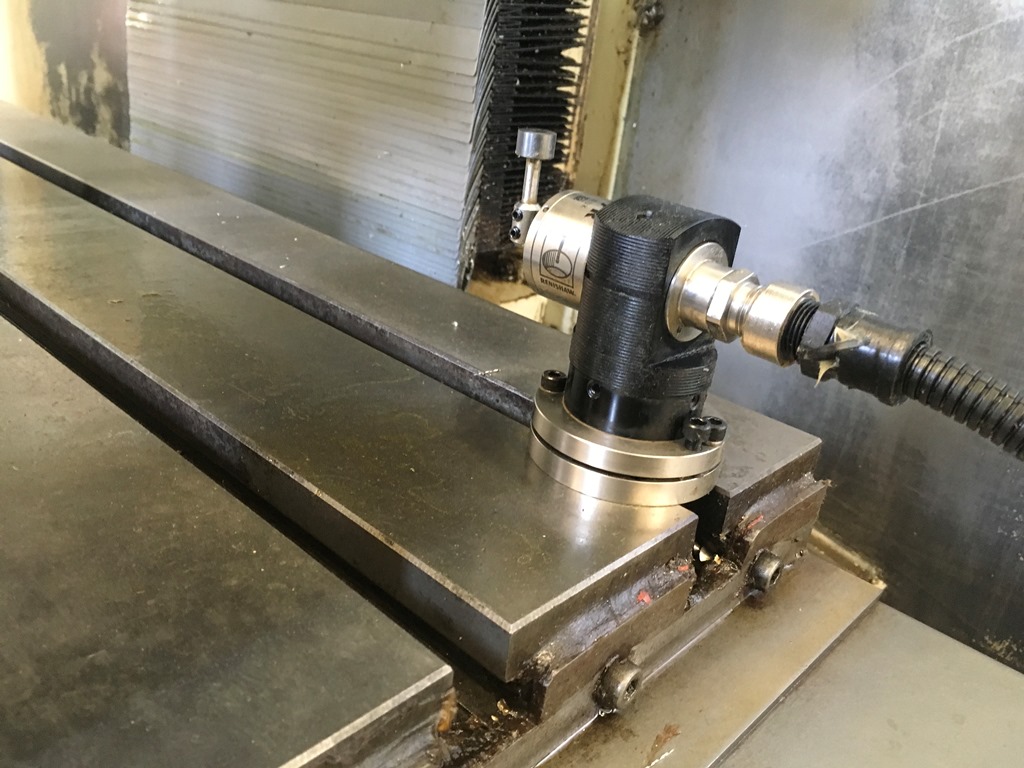

-TS27R contact tool setting probe
-Chip tank
USED MACHINE
