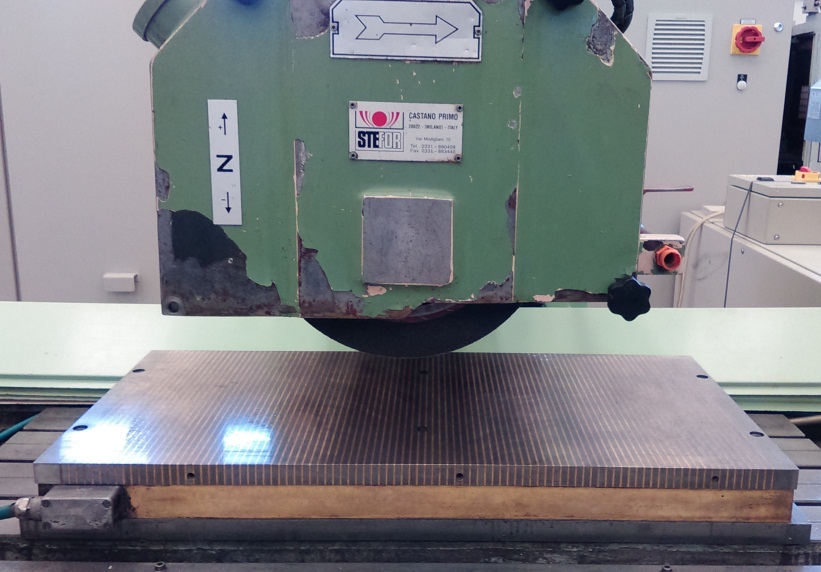

GRINDING STEFOR RTB 10/5 CN1
Surface grinding
grinder - Used Machines
STEFOR
07083
07083
Table surface mm 1000x400
Max table longitudinal stroke mm 1100
Max cross stroke mm 550
Max grinding width with wheel band mm 600
Max distance between table and axis wheel mm 640
Table speed m/min 1-30
Max wheel diameter mm 400x50x127
Wheel speed rpm 1400
Wheel motor power kW 7.5
Approx. machine weight Kg 4000
Equipped with:
-Tank
-Magnetic chuck
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
