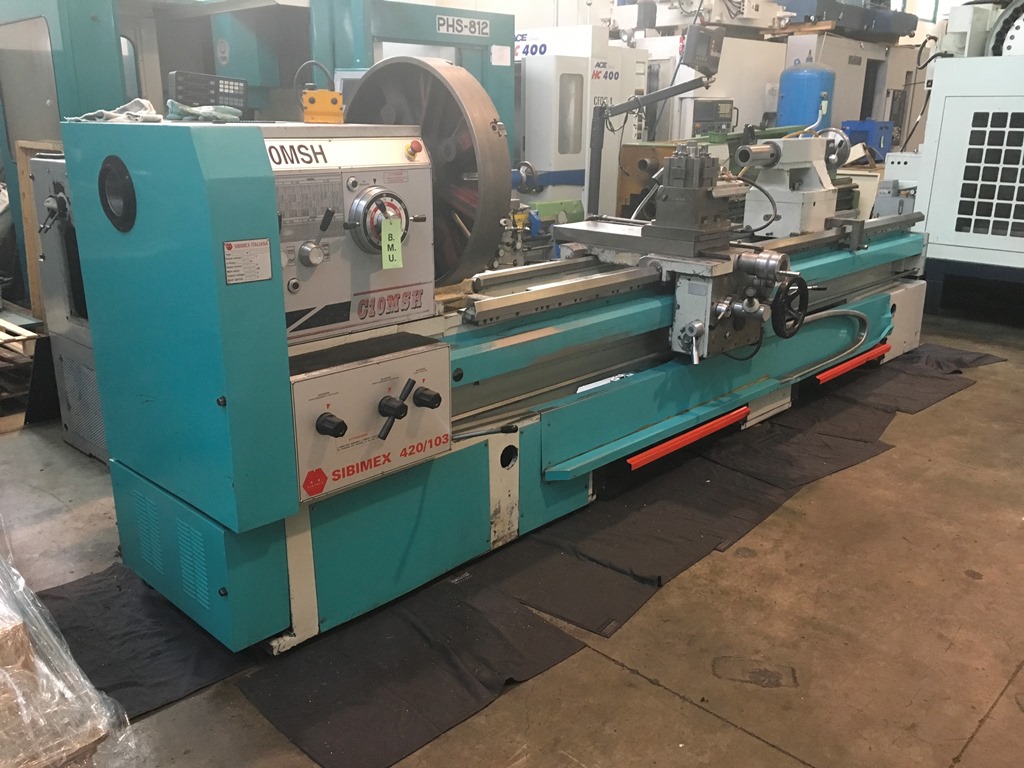

LATHE SIBIMEX C10MSH/3000
Diameter between 600 e 800 mm
lathe conventional - Used Machines
SIBIMEX
07896
07896
Height of center mm 420
Distance between center mm 3000
Bed width mm 520
Swing over bed mm 830
Swing over cross slide mm 585
Spindle bore mm 103
Spindle speed n. 18 - rpm 8:1250
Spindle motor power kW 15
Cross slide travel mm 420
Top slide travel mm 145
Tailstoclk quill diameter mm 105
Tailstock quill taper Morse 6
Tailstock quill travel mm 200
Overall dimensions mm 5450x1400x1585
Net weight Kg 5360
EQUIPPED WITH:

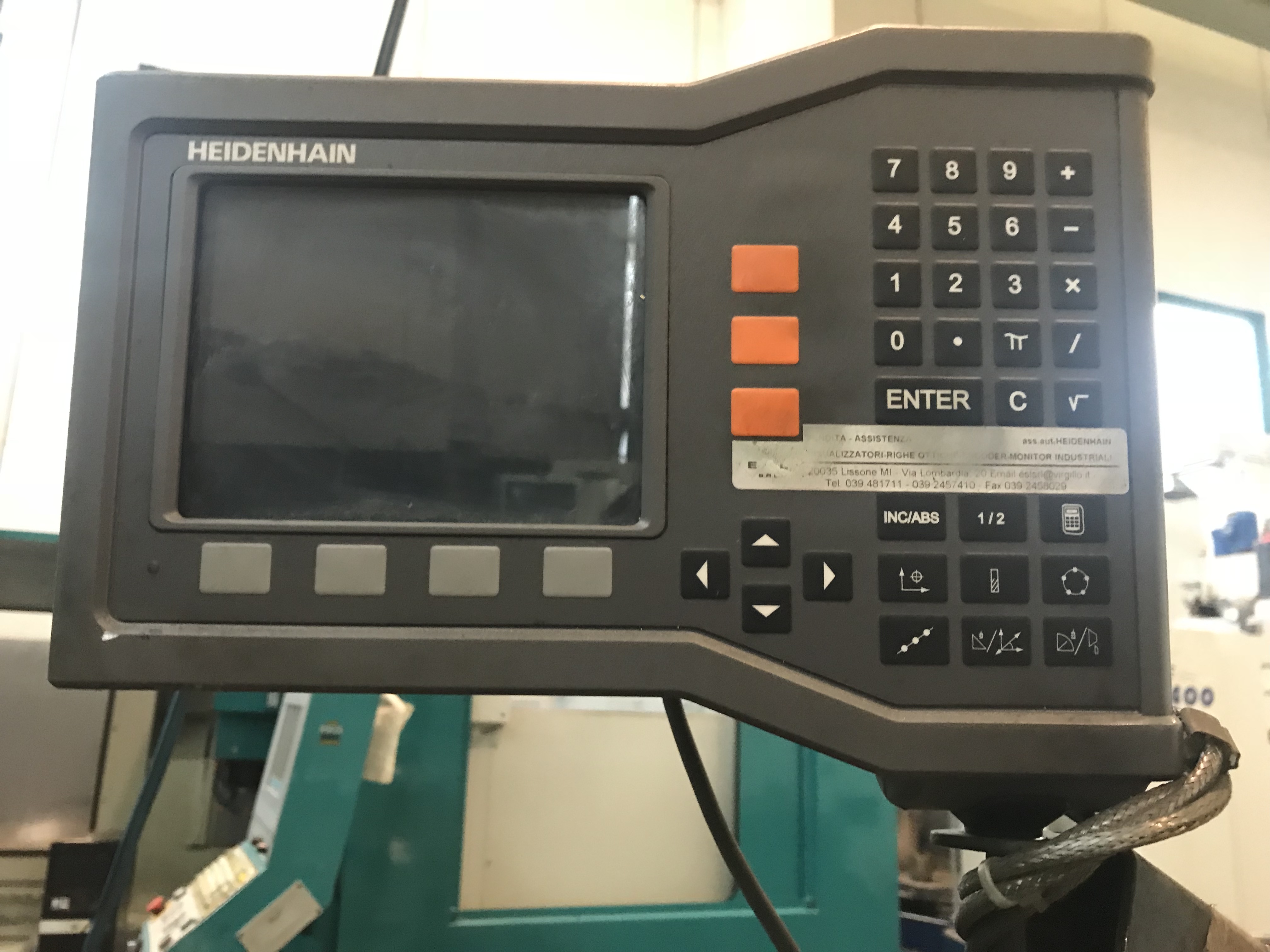

-DRO Heidenhain

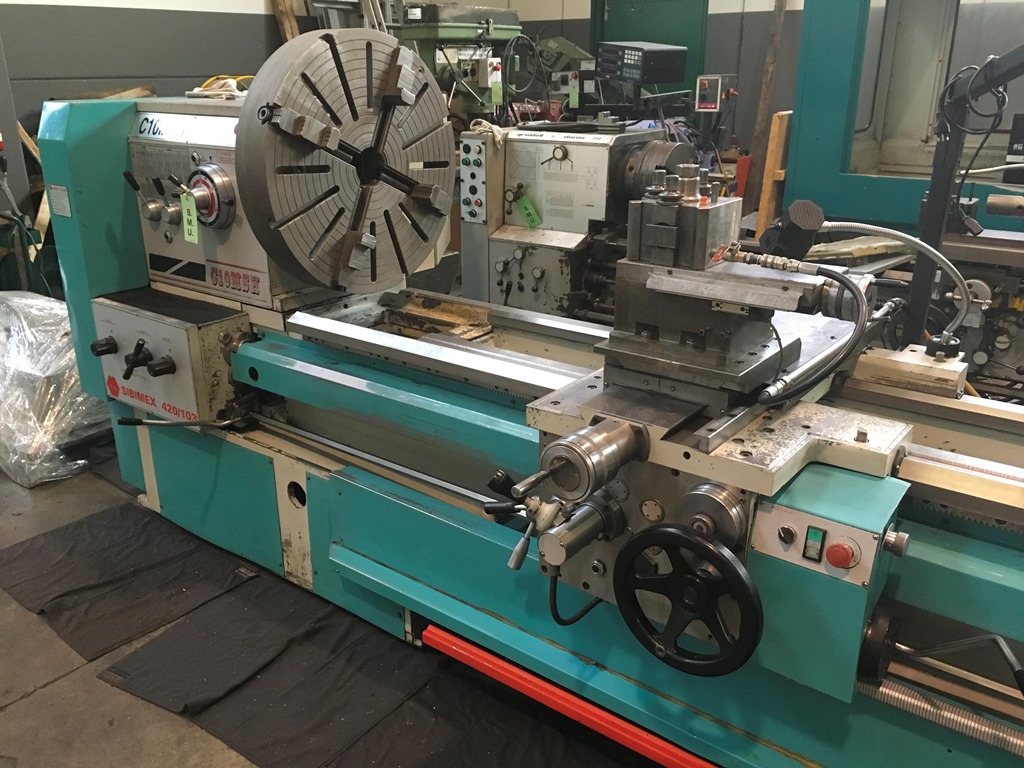

-4 jaws independent faceplate diam mm 750
-3 jaws chuck double guide diam. mm 400
-Follow rest mm 10-140
-Steady rest mm 300
-Steady rest mm 400
-Quick change turret with toolholders
-Head cover
USED MACHINE
