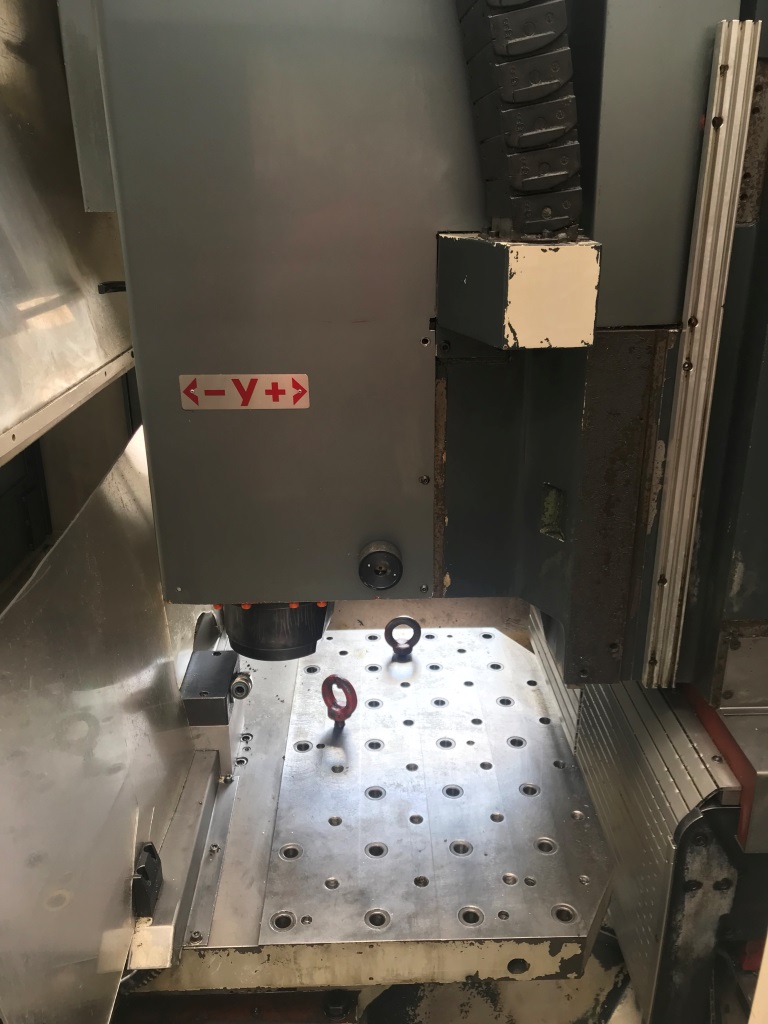

CENTER KONDIA ZM-99
Double pallet
machine center - vertical - Used Machines
KONDIA
07901
07901
ROTOPALLET

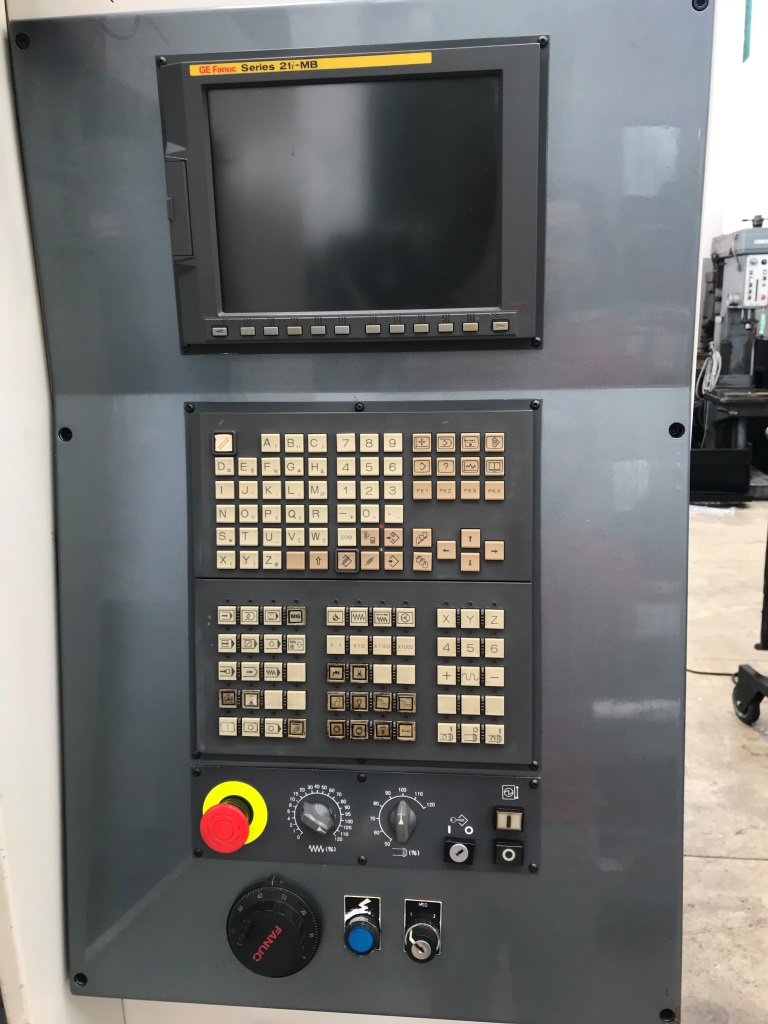

CNC FANUC 21i-MB
STROKES:
Longitudinal X axis mm 660
Cross Y axis mm 400
Vertical Z axis mm 510
TABLE:
Table dimensions mm 660x400
FEED:
Rapide feed axis X/Y mm/min 36.000
Rapide feed axis Z mm/min 30.000
SPINDLE:
Spindle taper HSK 63
Spindle speed rpm 15.000
Spindle motor power kW 7.5
AUTOMATIC TOOL CHANGE:
Tool change 20 positions
Max tool diameter (with tool adjacent) mm 85
Max tool diameter (without tool adjacent) mm 135
Max tool lenght mm 225
Max tool weight Kg 6
WEIGHT AND OVERALL DIMENSIONS:
Floor space mm 2950x3365
Max height mm 2327
Net weight Kg 5200
EQUIPPED WITH:

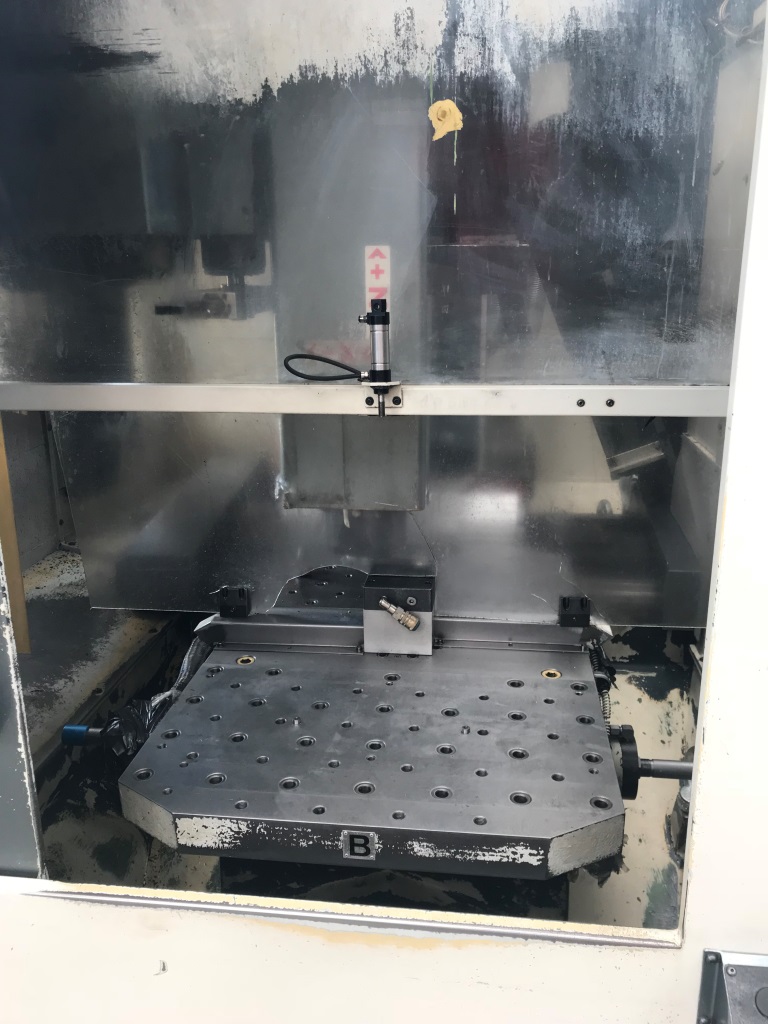

-Pallet change
-Coolant through the spindle
-Chip conveyor
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
