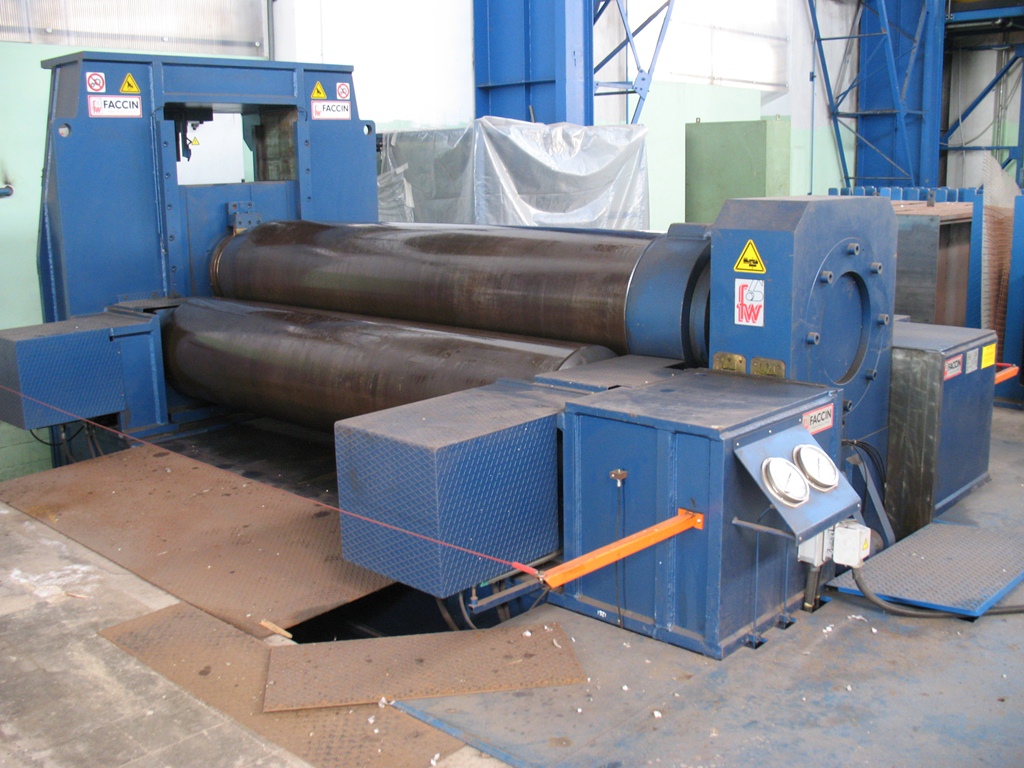

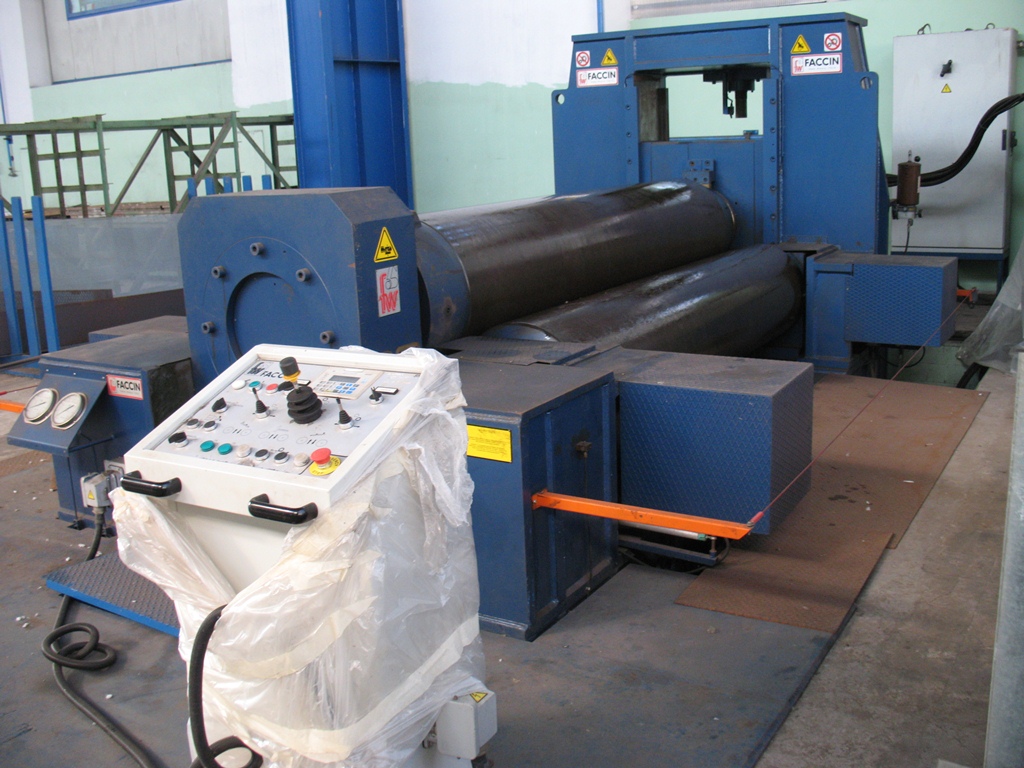

BENDING ROLL FACCIN MOD. HAV3172
Bending rolls
HYDRAULIC 3 ROLLS
ROLLS SIZE:
Upper roll diameter mm 720
Side roll diameter mm 650
CAPACITIES:
Bending capacity (all table) mm 100
Pre-bending capacity (all table) mm 65
Bending radius mm 1800
Enervation material N/mm² 260
Bending capacity (all table) mm 75
Pre-bending capacity (all table) mm 60
Bending radius mm 500
Enervation material N/mm² 260
Bending capacity (all table) mm 85
Pre-bending capacity (all table) mm 55
Bending radius mm 1800
Enervation material N/mm² 360
Bending capacity (all table) mm 120
Pre-bending capacity (all table) mm 78
Bending radius mm 1800
Enervation material N/mm² 260
FEED:
Tension 3 phase V 380 - Hz 50
Power input kW 110
MACHINE SIZE:
Lenght mm 8600
Width mm 3500
Height mm 3700
Weight kg 90.000
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
