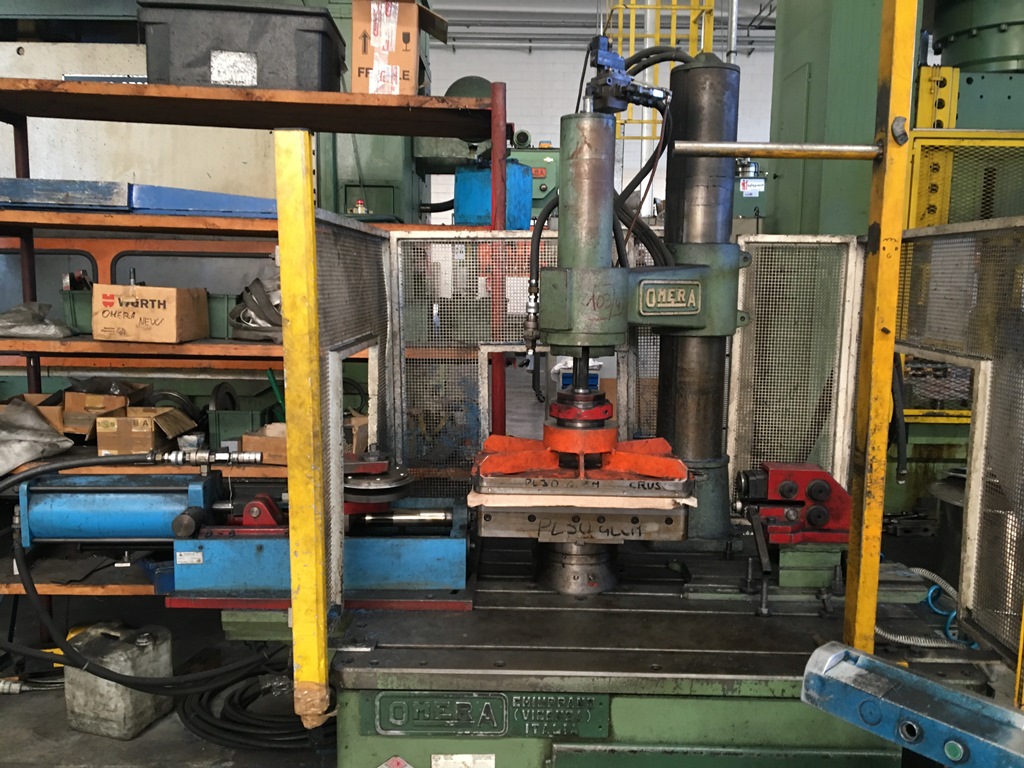

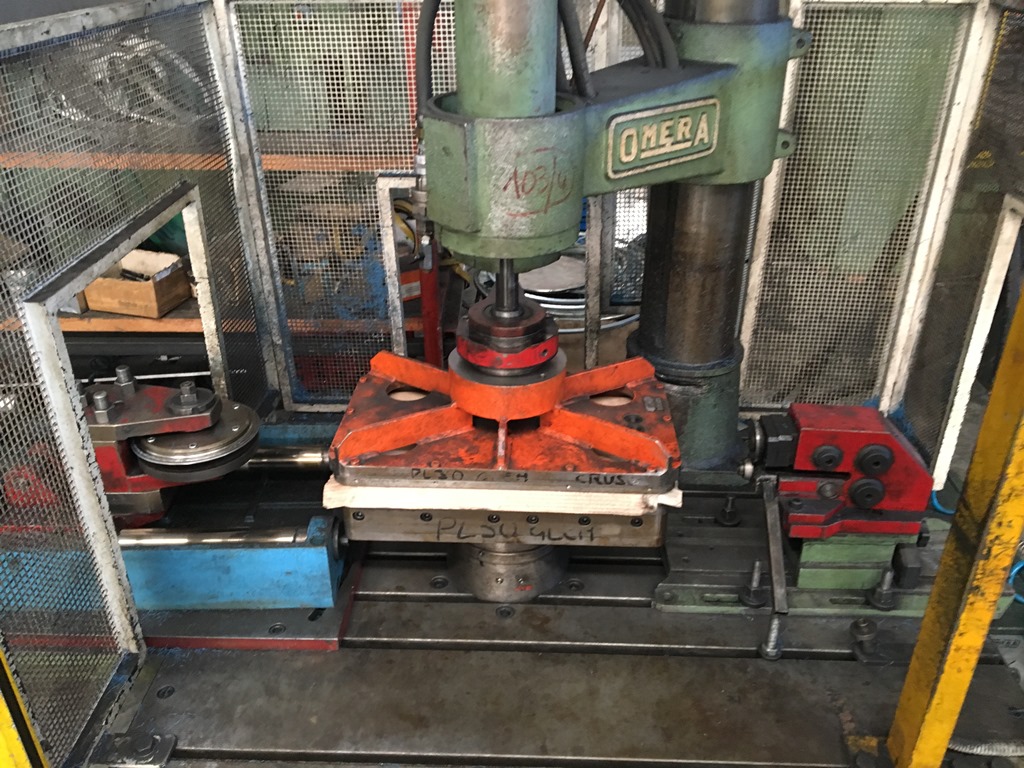

TRIMMING BEADING OMERA R3/7
Trimming beading machines
sheet metal working - Used Machines
OMERA
07575
07575
SPINDLE:
Spindle speed giri/min 8-434
Spindle height from platform mm 125
PRESSOR:
Max. pressor/ spindle mm 825
Min. distance pressor/ spindle mm 0
Max. stroke mm 400
Max. thrust Kg 478 at 6 bar
EJECTOR:
Max. stroke mm 40
Max thrust Kg 1060 a 6 bar
Main motor power 4 Kw
Motor rev Rpm 1450
Tank capacity lt 70
EQUIPED WITH:
n. 1 slide 2 N R3
n. 1 slide NR3 1ARAV - 1ALOC
n. 1 slide UTS - 1 NOTCHING
n. 1 bed extension
n. 1 MOP/10
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
