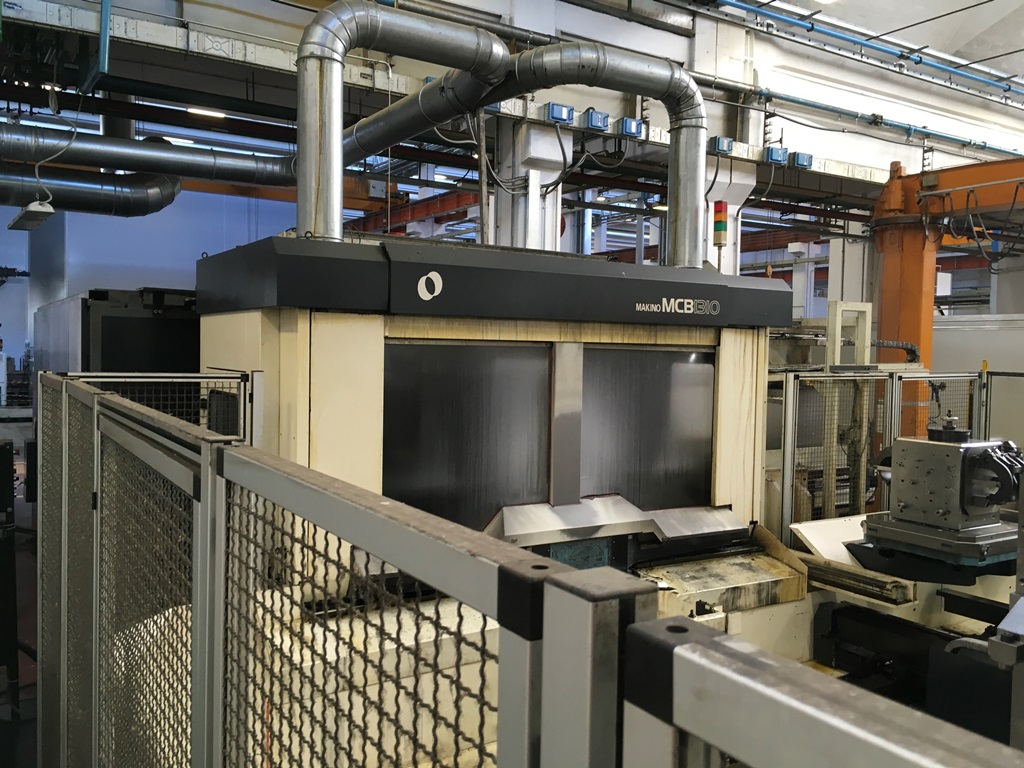

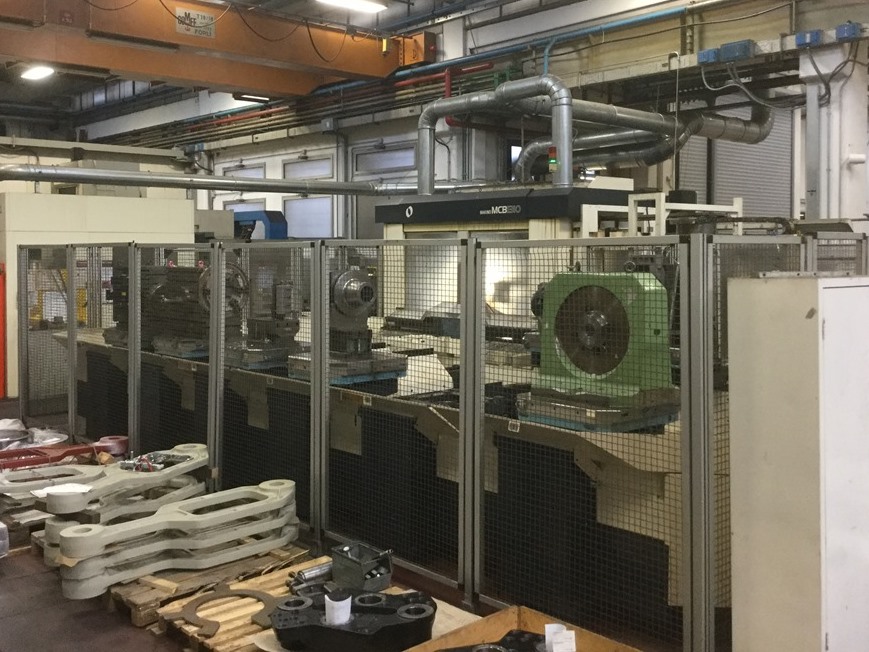

CENTER MAKINO MOD. MCB 1310

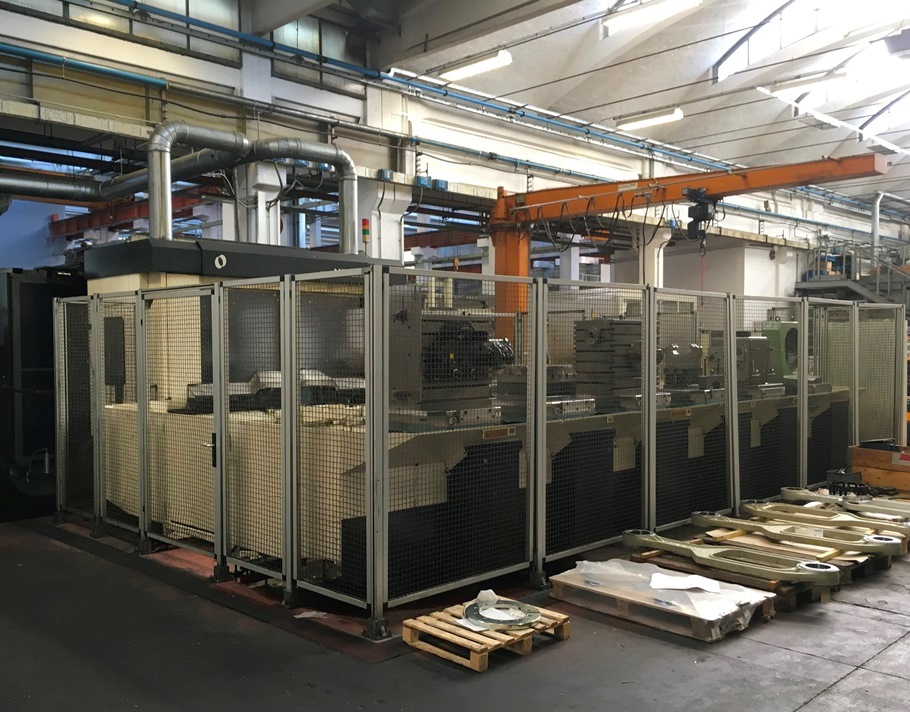

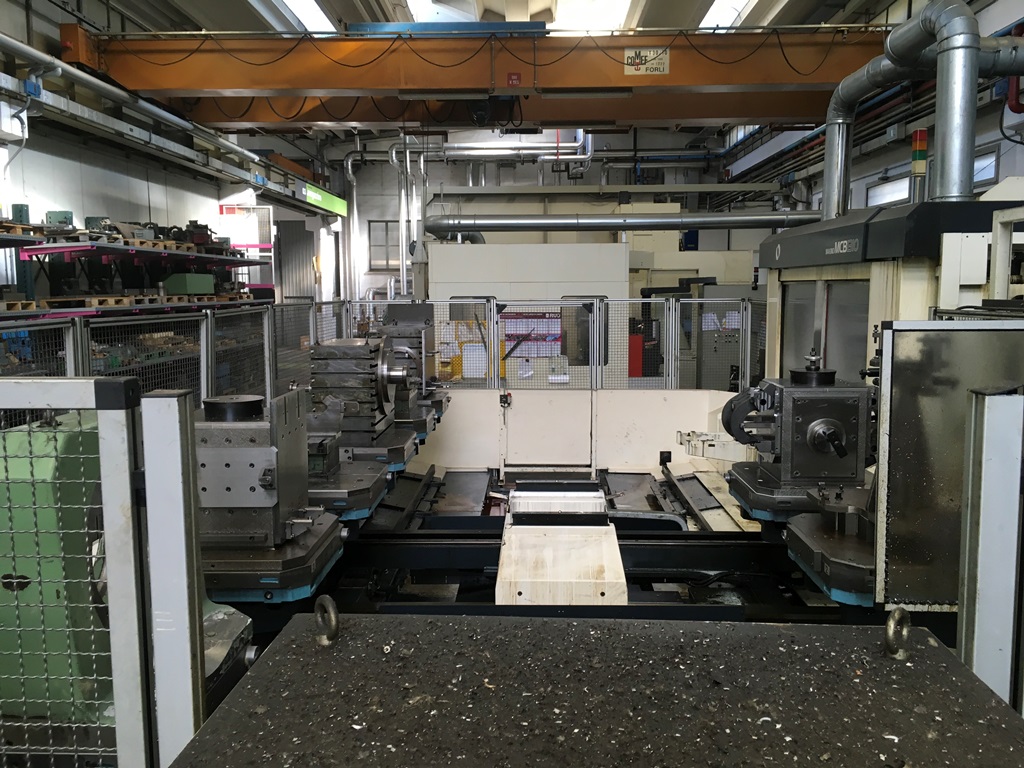

Multipallet
machine center - horizontal - Used Machines
MAKINO
07937
07937
HORIZONTAL MULTIPALLET

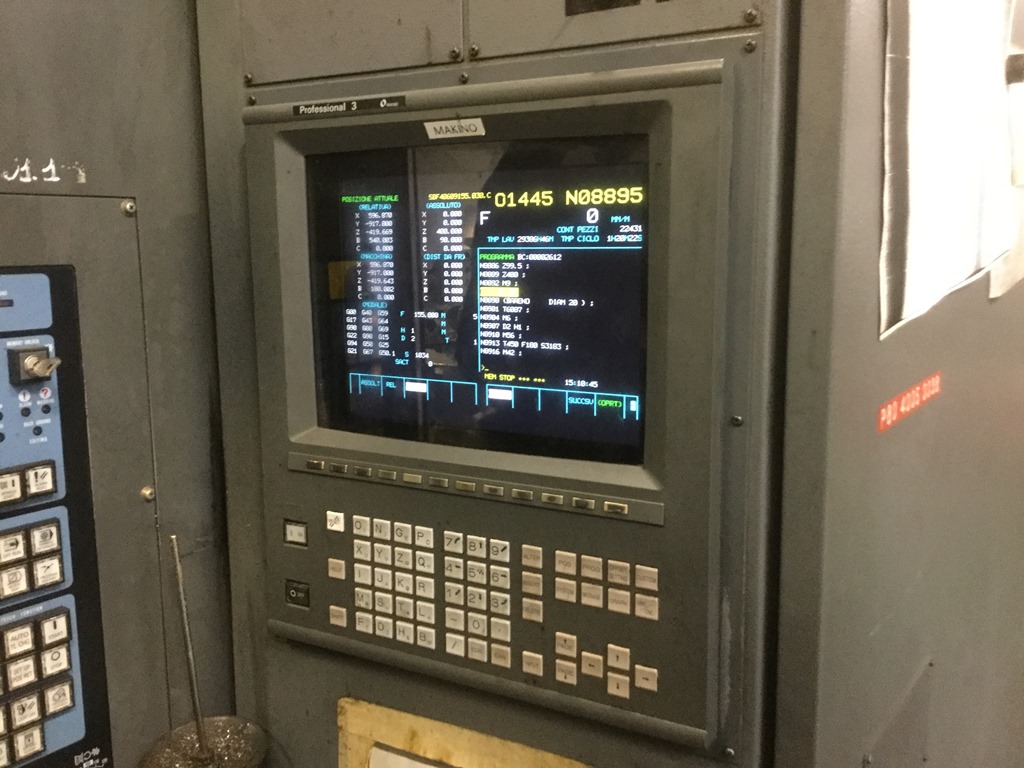

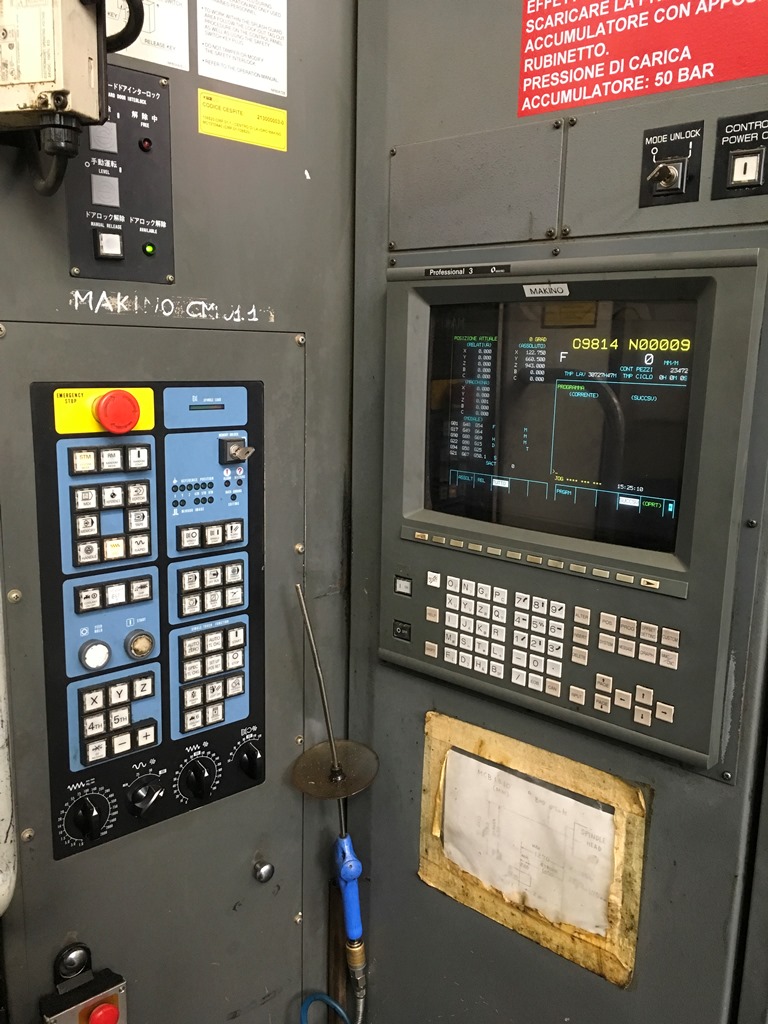

CNC FANUC 16 MC
DIMENSIONS:

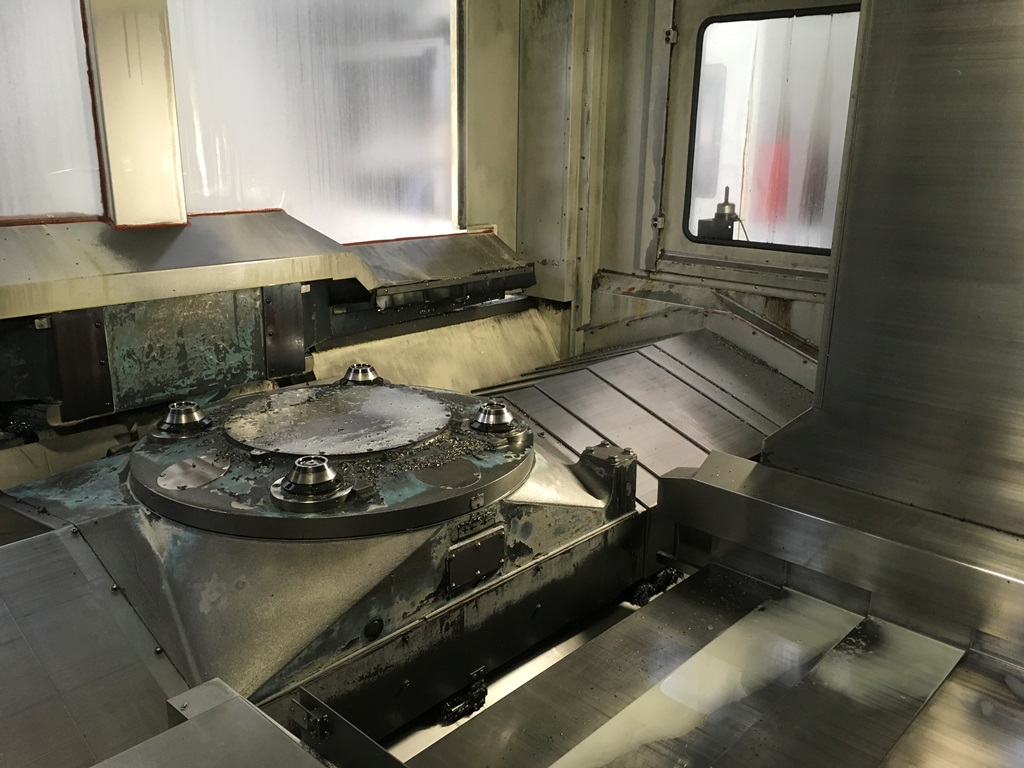

Pallet number 8+1 (with fifth tilting axis diameter 650 mm)
Pallet dimensions 800x800 mm
Max swing diameter 1550 mm
AXIS:
Axis X stroke1350 mm
Axis Y stroke 1050 mm
Axis Z stroke 1050 mm
RAPID FEED:
Rapid feed 20000 mm/1’

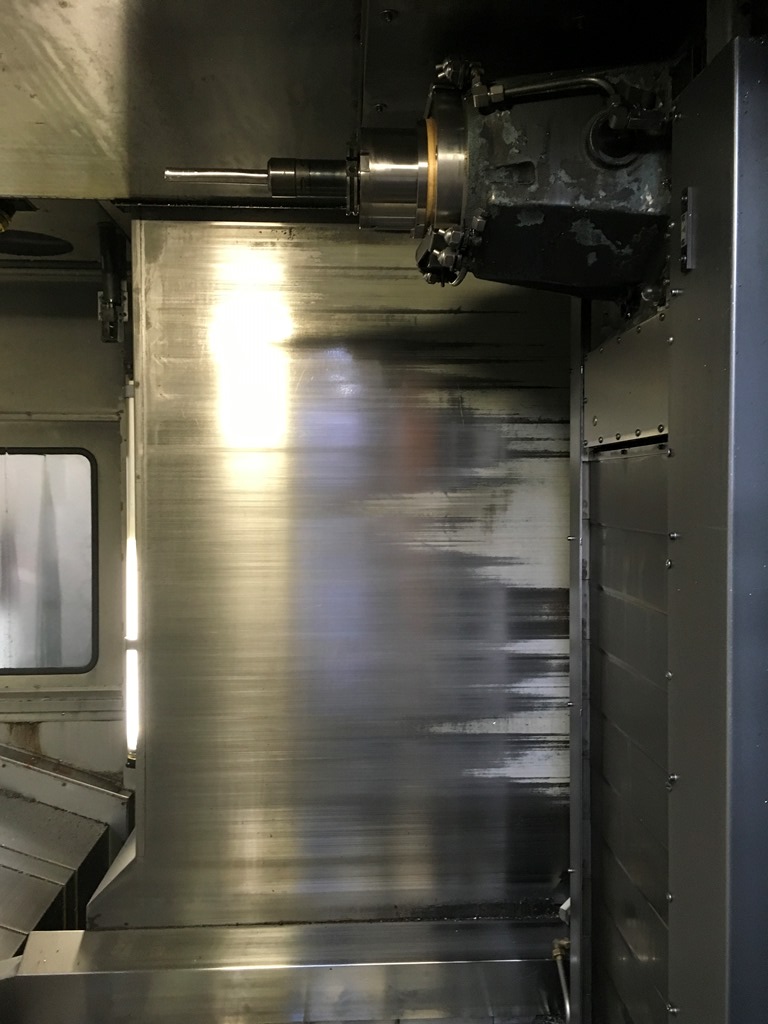

SPINDLE:
Taper ISO 50
Max power 26 kW
Spindle speed 4500 rpm
Torque max 1066 Nm

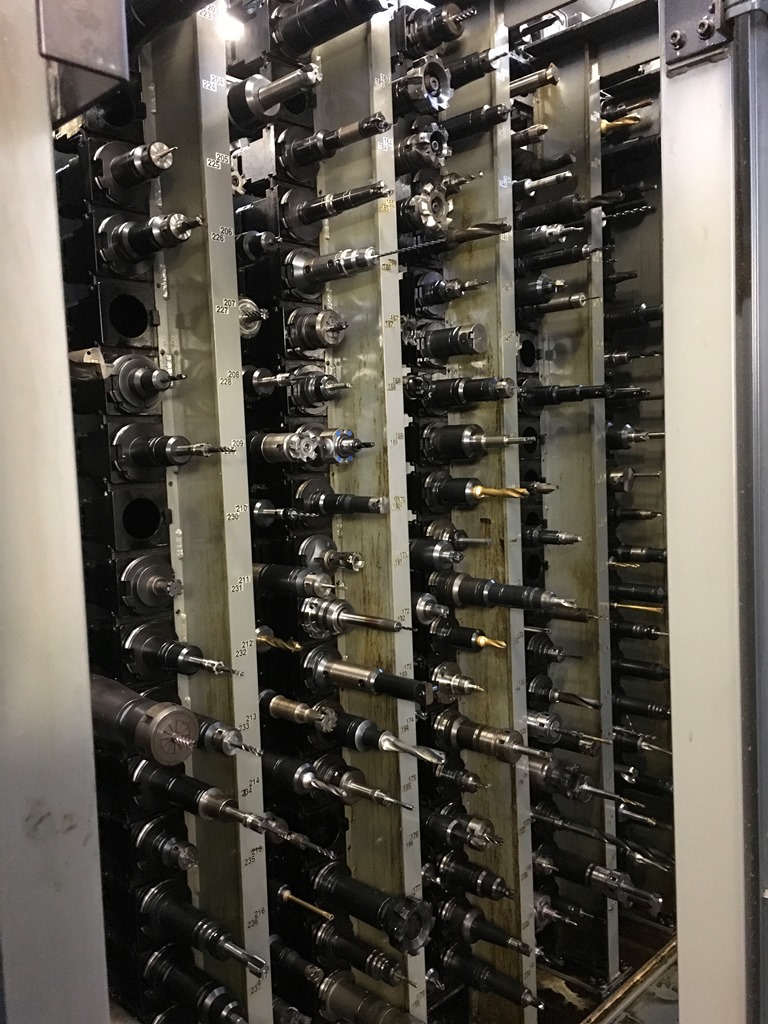

TOOLS MAGAZINE:
Tools number 300
Max tool dimaeter 300 mm
Max tool lenght 600 mm
MAx tool weight 30 kg
EQUIPPED WITH:
-High pressure
USED MACHINE
