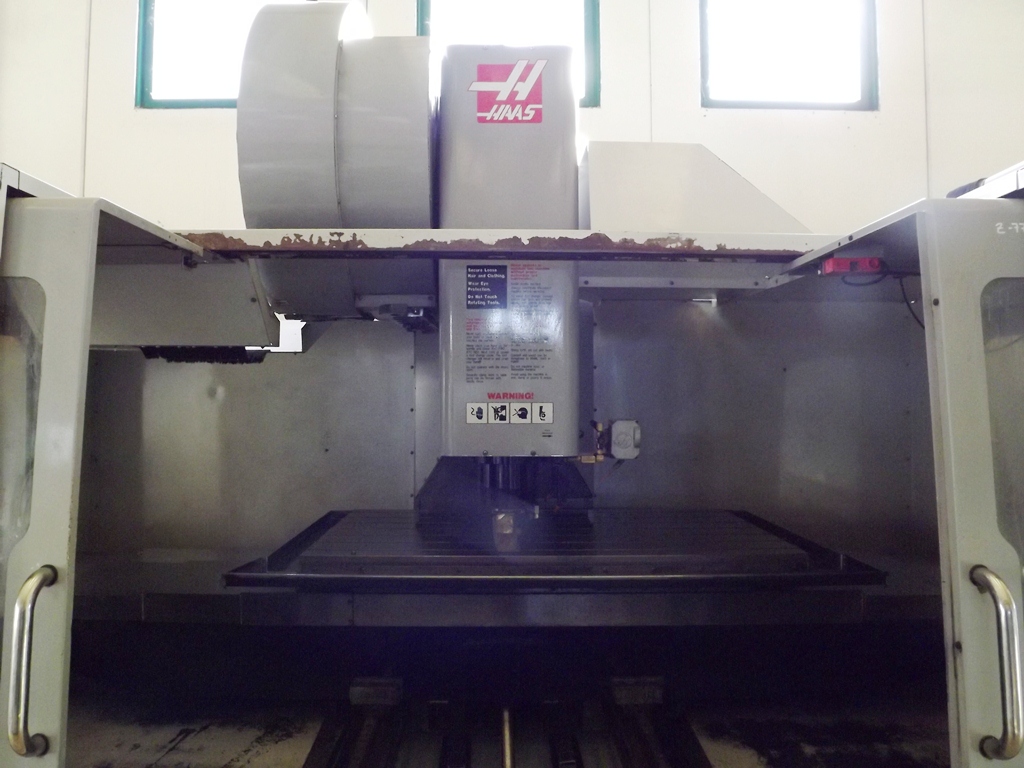

CENTER HAAS MOD. VF-8/50 HE
Single pallet
CNC HAAS
STROKE:
-Axis X mm 1626
-Axis Y mm 1016
-Axis Z mm 762
-Distance between working table and spindle nose mm 127-889
CNC ROTARY TABLE:
-Dimensions mm 1626x914
-Max load Kg 1814
-Number and dimensions x pitch T-slots mm 7,14x125
SPINDLE:
-Spindle speed rpm 7500
-Spindle speed ranges n.2
-Spindle taper No.50
TOOL CHANGE:
-Tool taper CAT-50
-Tool magazine 30 tools
MOTORS POWER:
-Spindle kW 22,4
VARIOUS:
-Installed power KVA 28
OVERALL DIMENSIONS AND WEIGHT:
-Machine height mm 3505
-Intallation ares mm 4514x3531
-Weight machine Kg 11567
EQUIPED WITH:

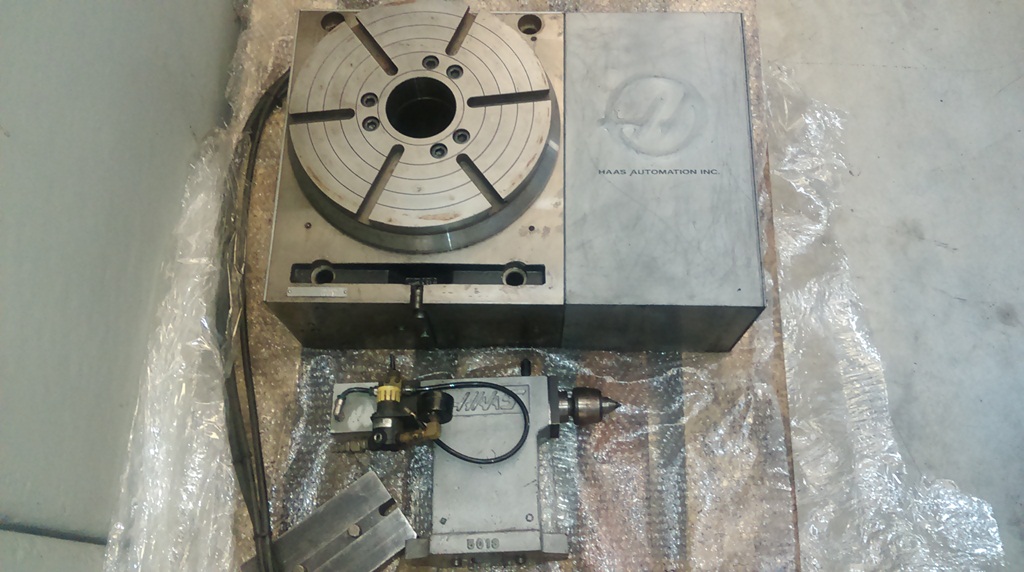

-4th axis / CNC rotary table diameter mm 310 with pneuamtic tailstock swing diameter 550 mm

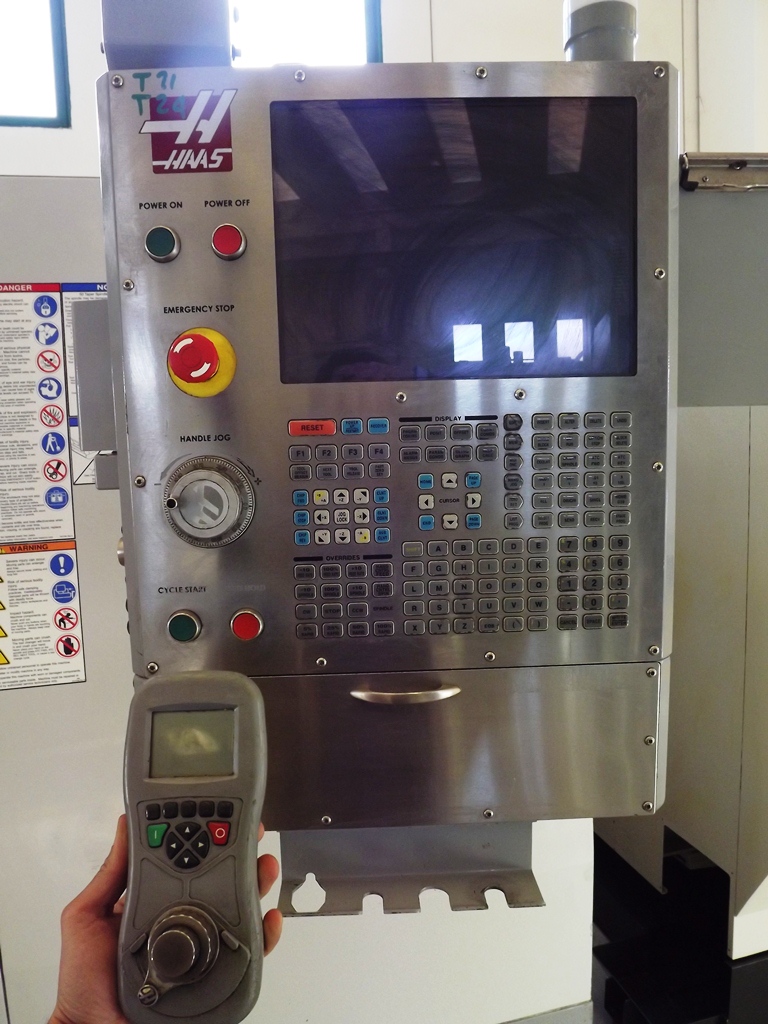

-Electronic handwheel
USED MACHINE
YEAR 2007
FILL OUT OUR FORM FOR MORE INFORMATION
