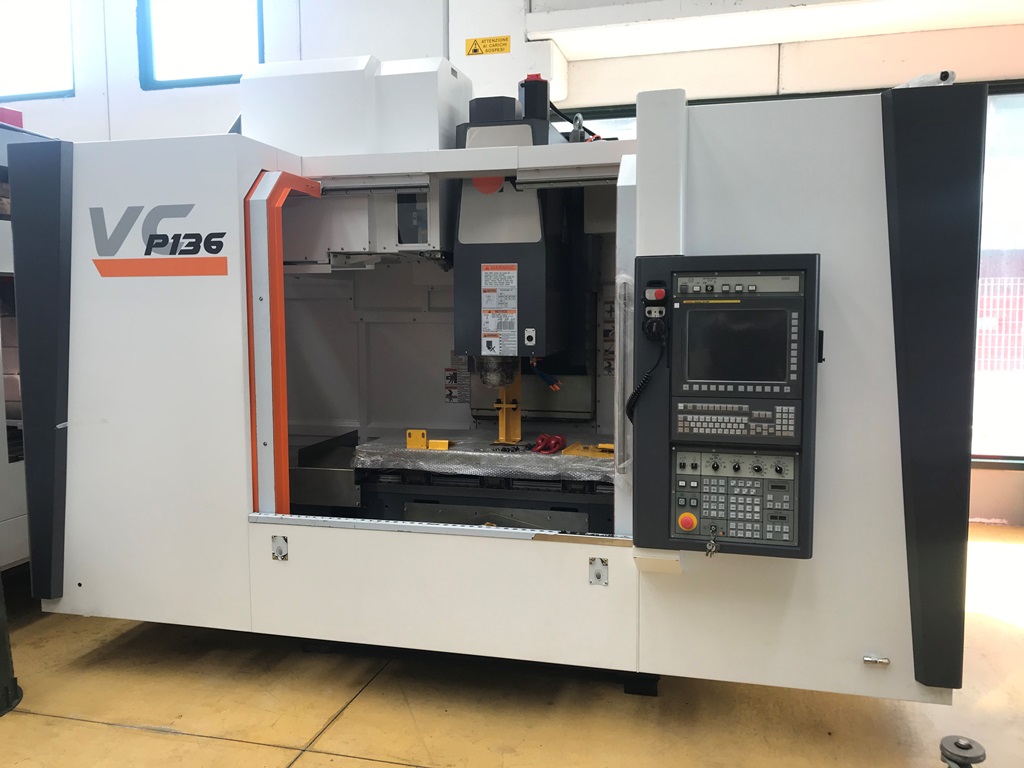

VERTICAL MACHINING CENTRE VICTOR P136
Single pallet
07792
TECHNICAL DETAILS
- Axis x 1360 mm
- Axis y 700 mm
- Axis z 700 mm
- Distance table / spindle min max mm 300-1000
- Rapid feedrates x-y-z 32-32-32 m/min
- Table size 1400x700 mm
- Max load 1000 Kg
- Lenght 4670 mm
- Width 2983 mm
- Height 3104 mm
- Weight 9000 kg
MACHINE EQUIPED WITH:

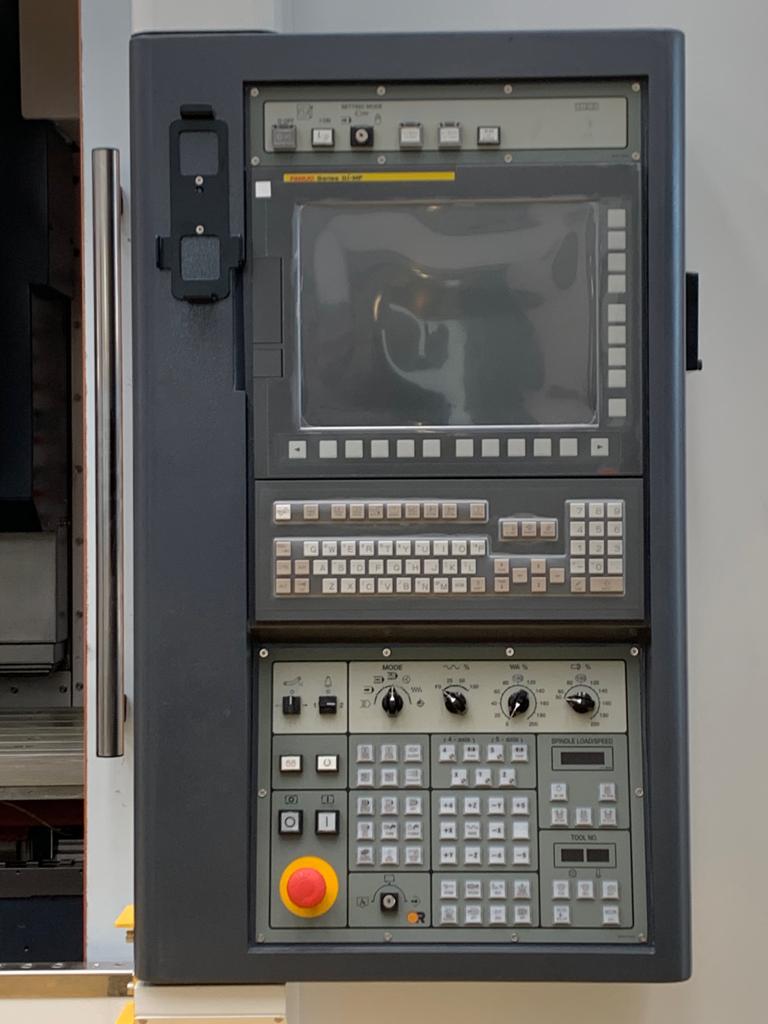

- CNC 0i-MF (monitor a 15'') color graphic display + manual guide + AICC-2 (200
blocks) + VSS macro + electronic handwheel
- Ethernet and USB connection
- Spindle 12000 rpm, DCS, alpha T8/12000i direct drives 7.5-11-15 kW
- Tool magazine 30 positions
- Spindle taper BBT-40
- Spindle cooling with refrigerator
- Linear rolling guideway
- Working cycle end signal light 3 colors
- Machine working lighting
- Levelling pads
- Tool box with service tools
- Coolant through spindle with single filter MAHLE + high pressure 20 BAR
- Air gun
- Washing gun
- Front chip conveyor with left removal
- Refrigeration of electrical cabinet
- Oil mist separator
- Preparation 5th axis

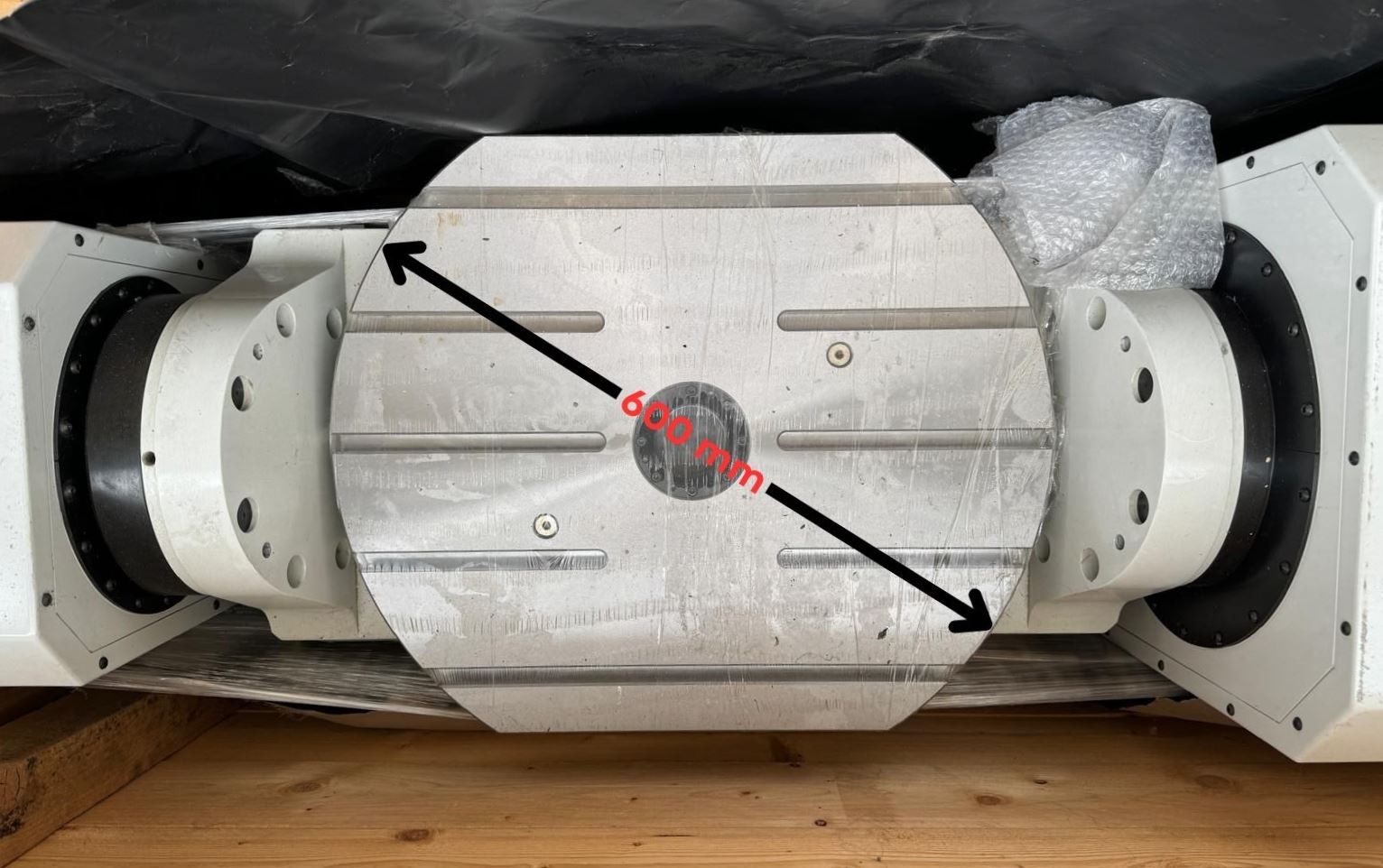

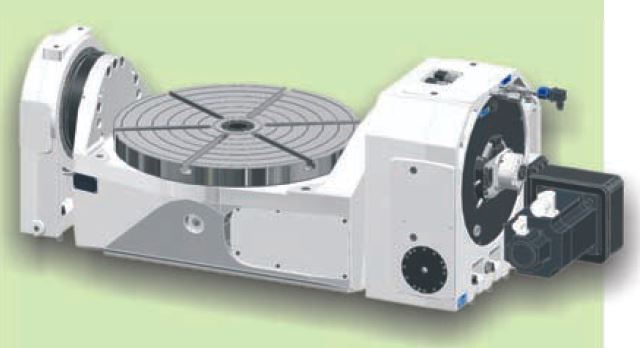

- Rotary tilting table LCM mod. BRC- diam mm 600
NEW MACHINE READY DELIVERY
IMAGES:
