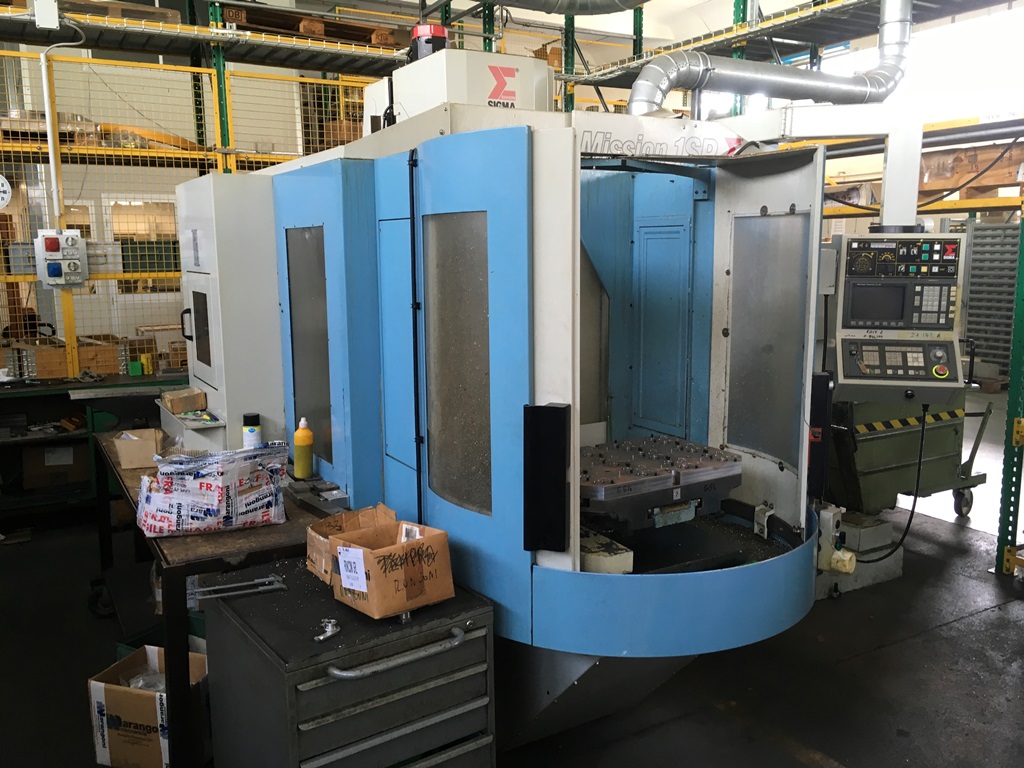

VERTICAL MACHINE CENTER SIGMA
Double pallet
machine center - vertical - Used Machines
SIGMA
08029
08029
MISSION 1-P

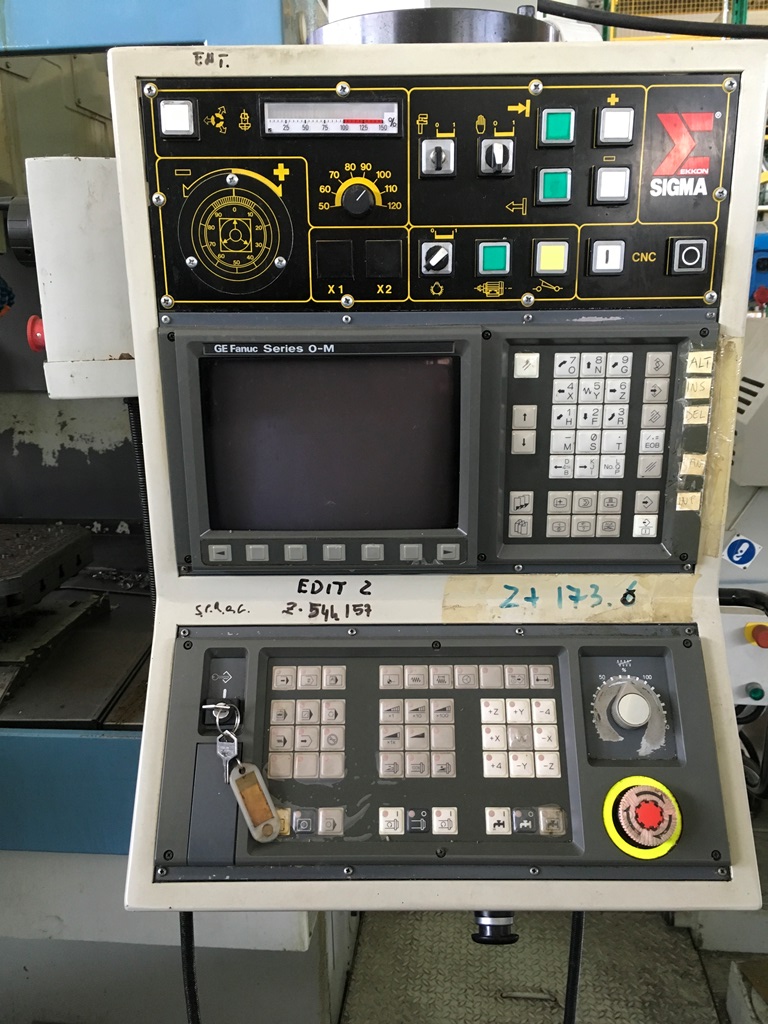

CNC FANUC O-M
PALLET CHANGE: N. 2

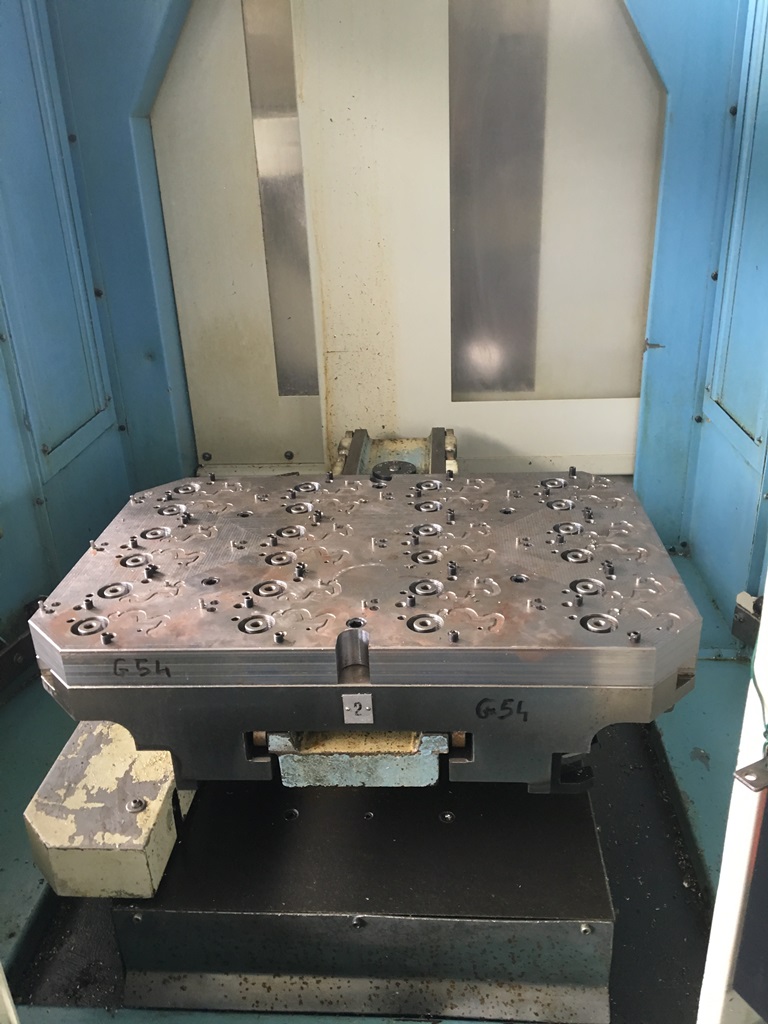

Pallet surface mm 600x400
Distance spindle nose/pallet mm 150/600
Max load on pallet Kg 200
TRAVEL:
Axis X mm 700
Axis Y mm 450
Axis Z mm 450
Distance spindle axis/column mm 500
SPINDLE:
Taper ISO 40 DIN 69871
Spindle motor AC 7.5/5.5 KW

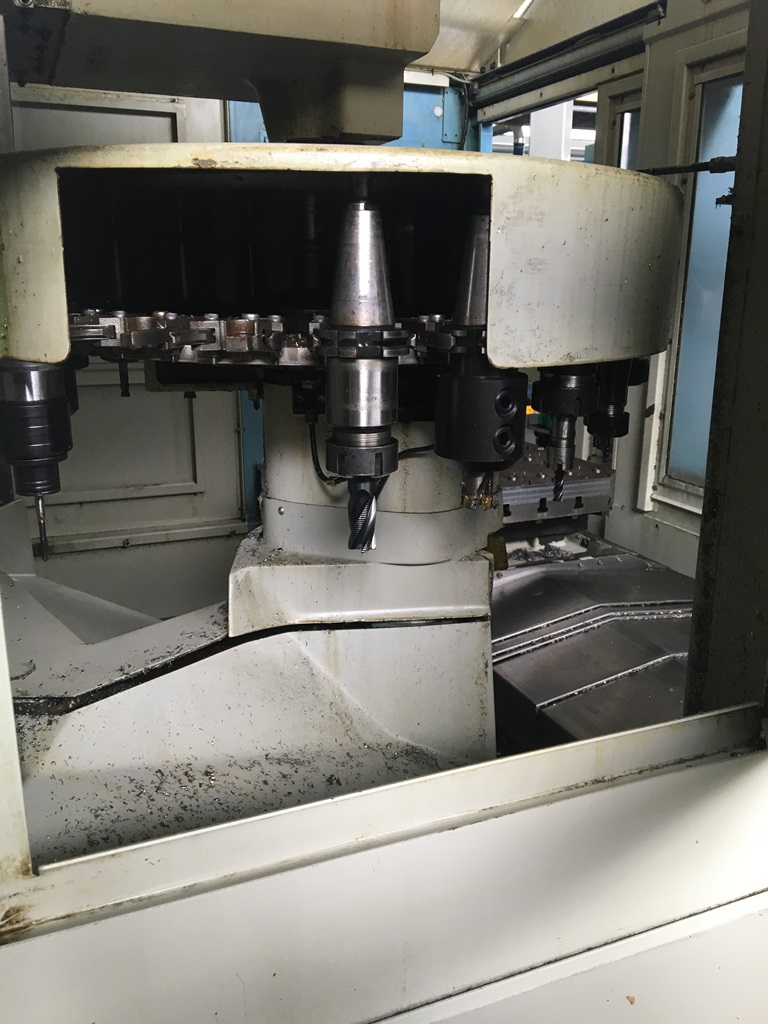

TOOL MAGAZINE:
Disc type bi-directional RANDOM
No. positions 21
Max tool diameter mm 100
Max tool lenght mm 250
Max tool weight Kg 6
Machine weight Kg 5800
Overall size mm 2660x3880
EQUIPED WITH:

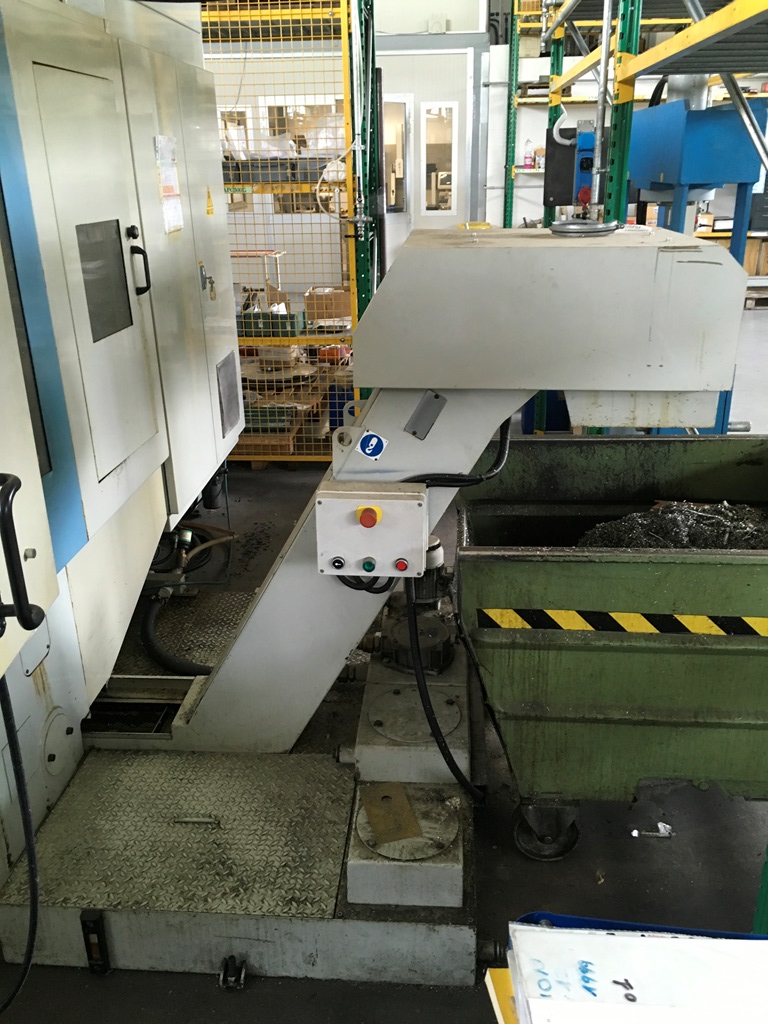

Chip conveyor
USED MACHINE
