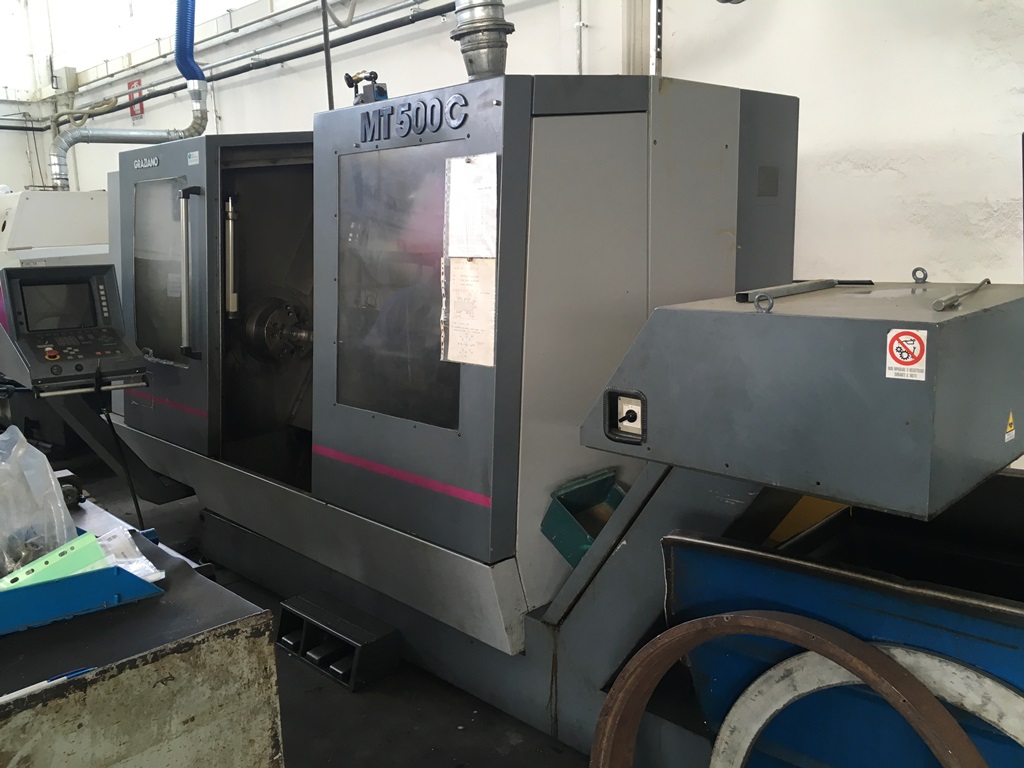

LATHE CNC GRAZIANO MT 500C
With live tools
lathe cnc - Used Machines
GRAZIANO
08061
08061

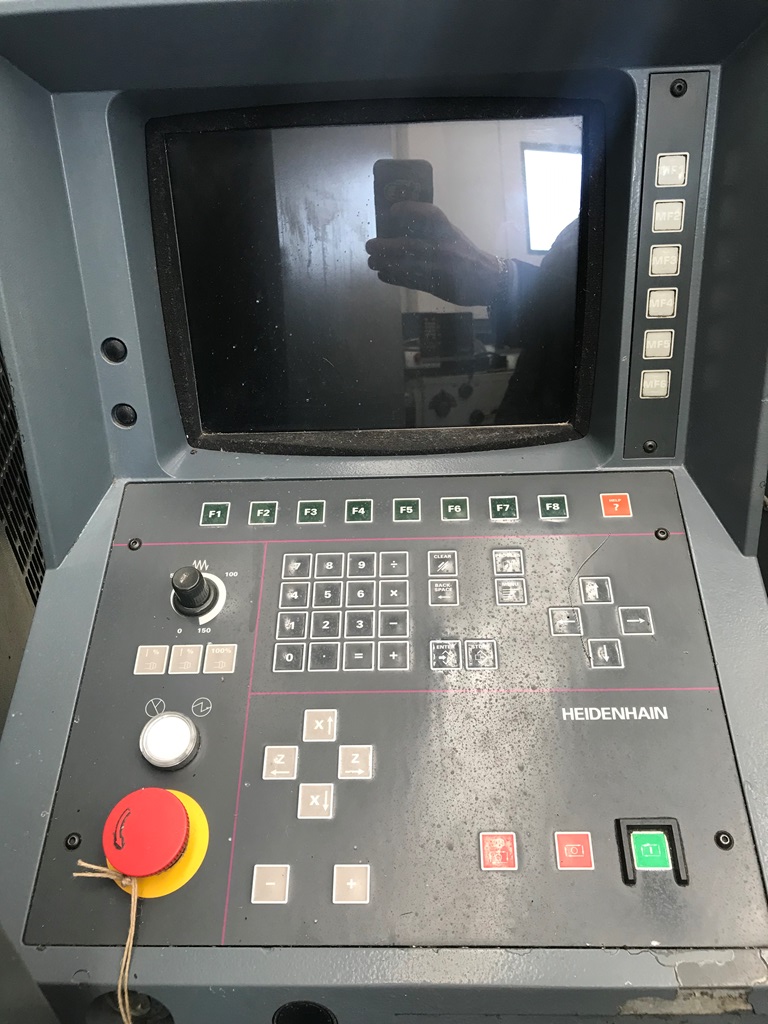

CNC Heidenhain
WORKING RANGE:
Max swing mm 550
Max turning diameter mm 400
Max diameter over slide mm 345
Distance centre mm 1000
Longitudinal Z axis mm 950
Cross X axis mm 300
Max load betweem centre Kg 350
SPINDLE:
Taper ASA 8''
Speed 20-4000 Rpm
Motor power 34 Kw
Chuck mm 250
Bar capacity mm 74
TAILSTOCK:
Quil diameter mm 95
Taper morse 5
Quill stroke mm 135

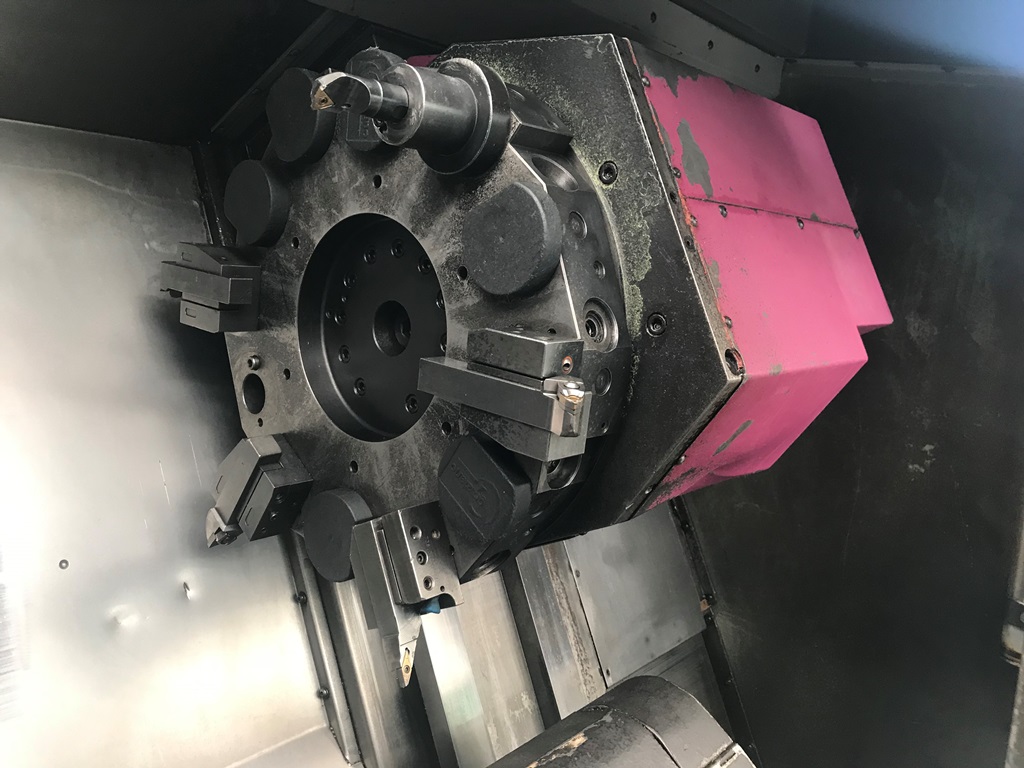

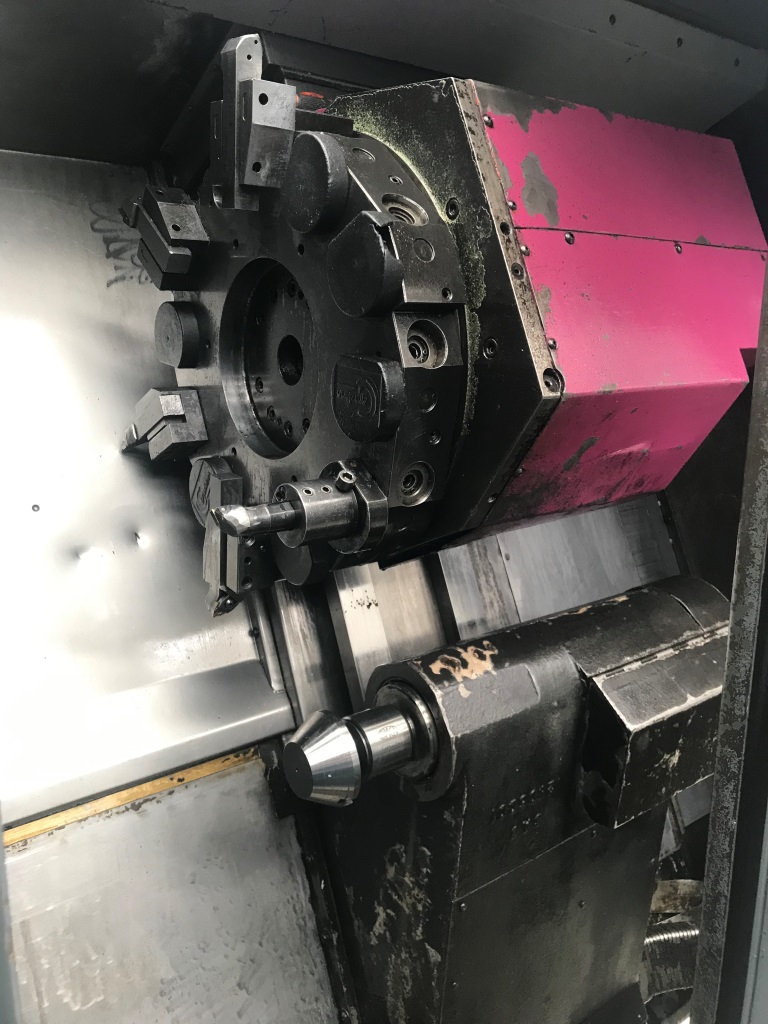

TURRET:
Taper VDI 40
No. positions 12
Live tools no 6
EQUIPPED WITH:
-Chip conveyor
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
