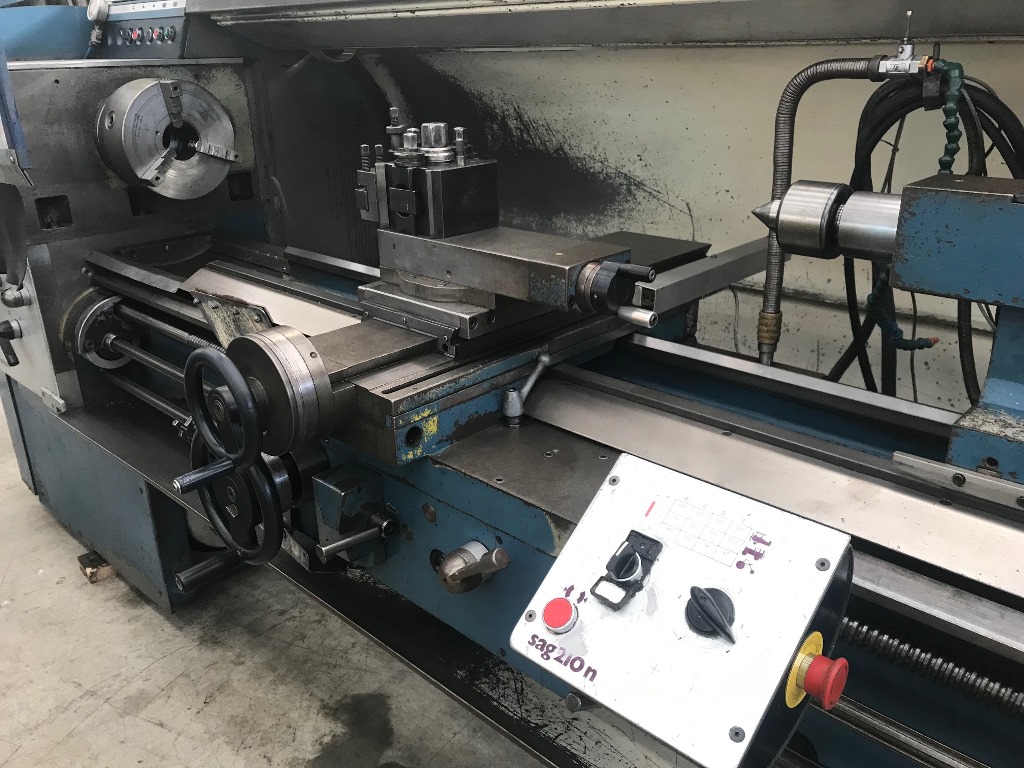

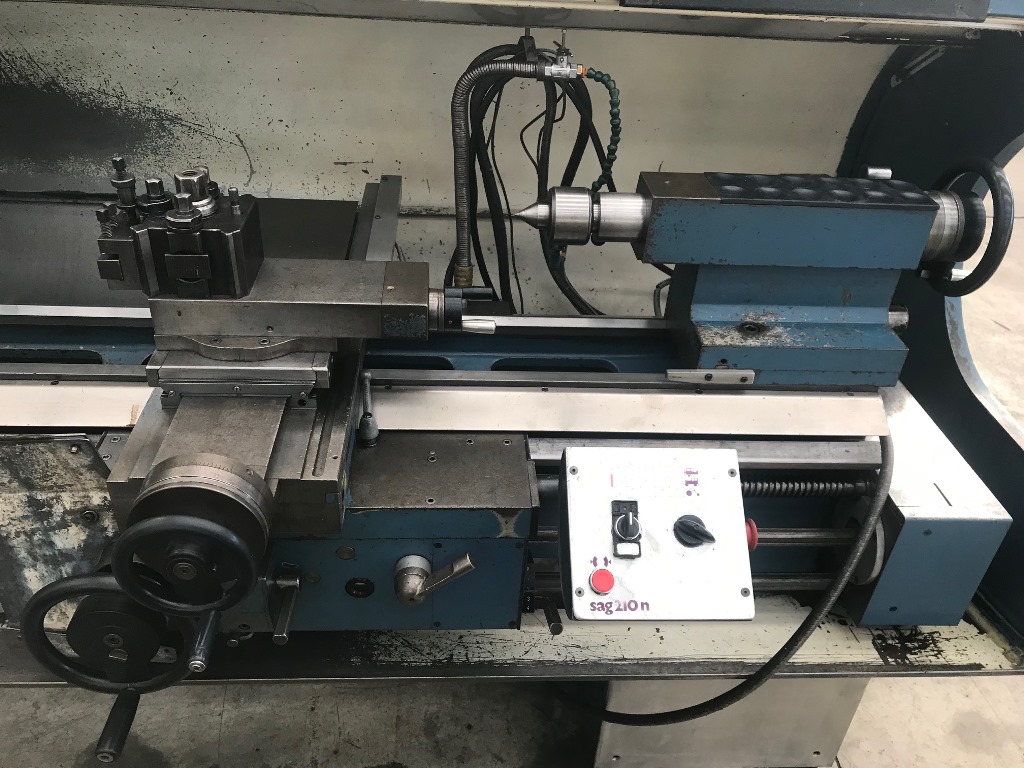

LATHE GRAZIANO 210x1500
Diameter up to 600 mm
lathe conventional - Used Machines
GRAZIANO
08072
08072
MOD. SAG 210N
Height of center mm 210
Max swing diameter over cross slide mm 270
Max swing diameter over gap mm 600
Distance between centre mm 1500
Bed widht mm 330
Spindle bore mm 57
Spindle nose CAMLOCK D1-6''
Spindle speed n.24, Rpm 38-2000
Tailstock quill diameter mm 68
Tailstock quill stroke mm 200
Cono Morse N.5
EQUIPED WITH:

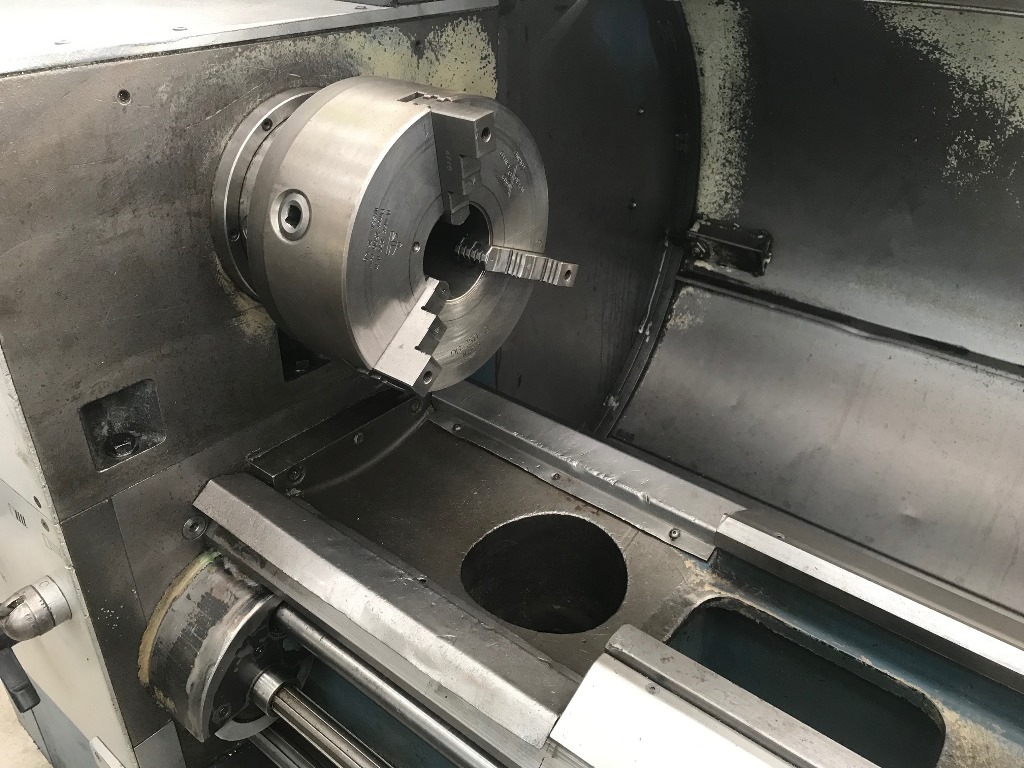

3 jaw chuck double guide
Automatic speeed variator on carriage
Back cover
Rapid head turret with toolholder

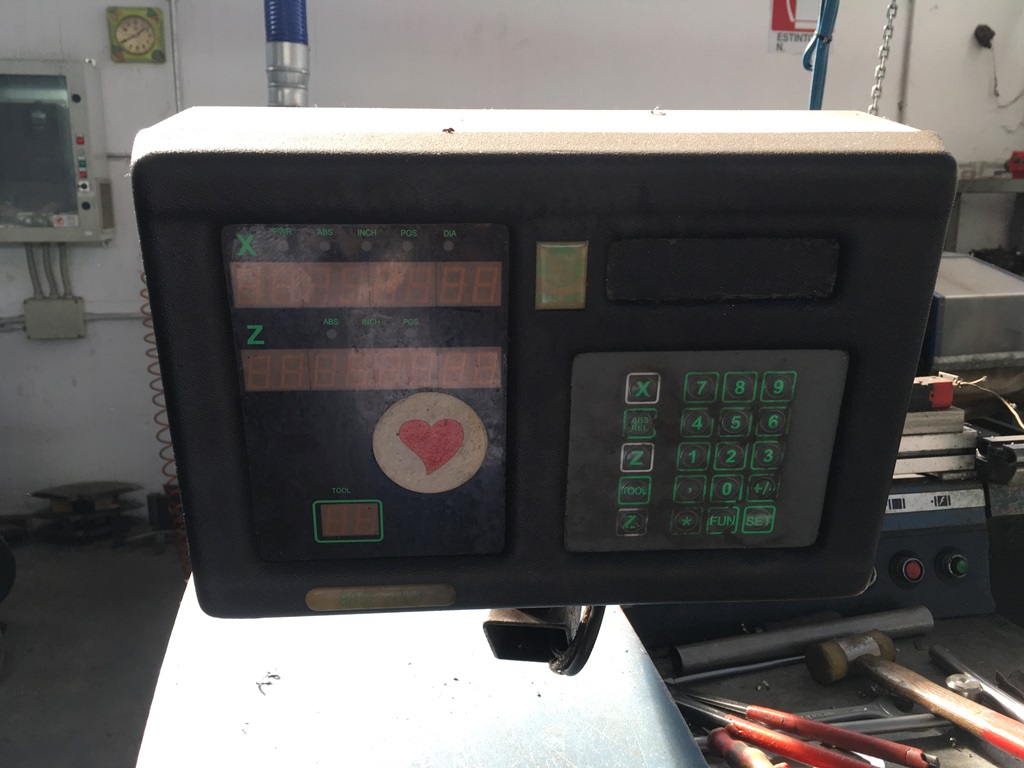

Digital read-out 2 axis
USED MACHINE
