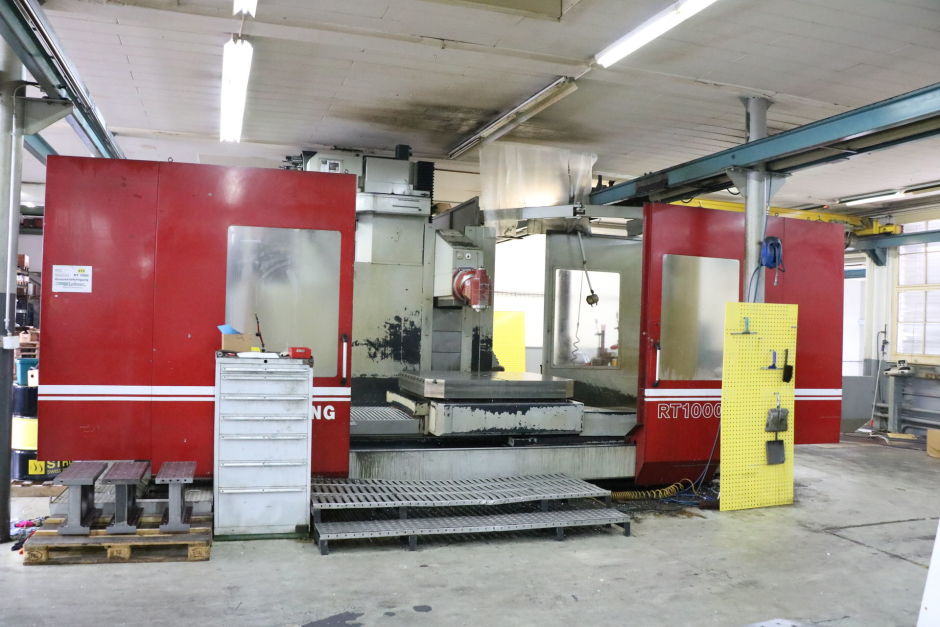

MILLING BED TYPE KIHEUNG RT 1000
With rotary table
milling cnc - Used Machines
KIHEUNG
08139
08139

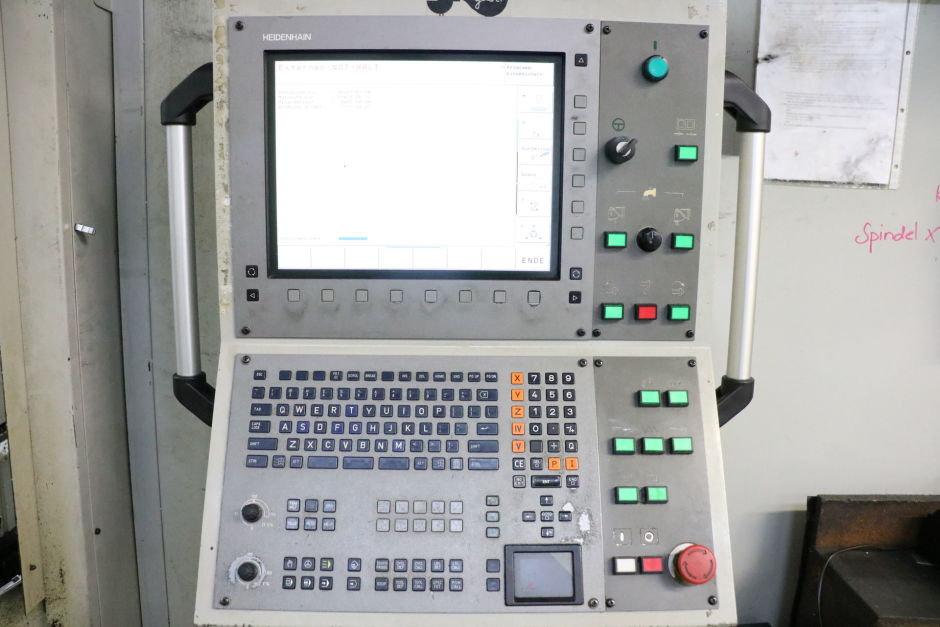

Control Heidenhain iTNC 530

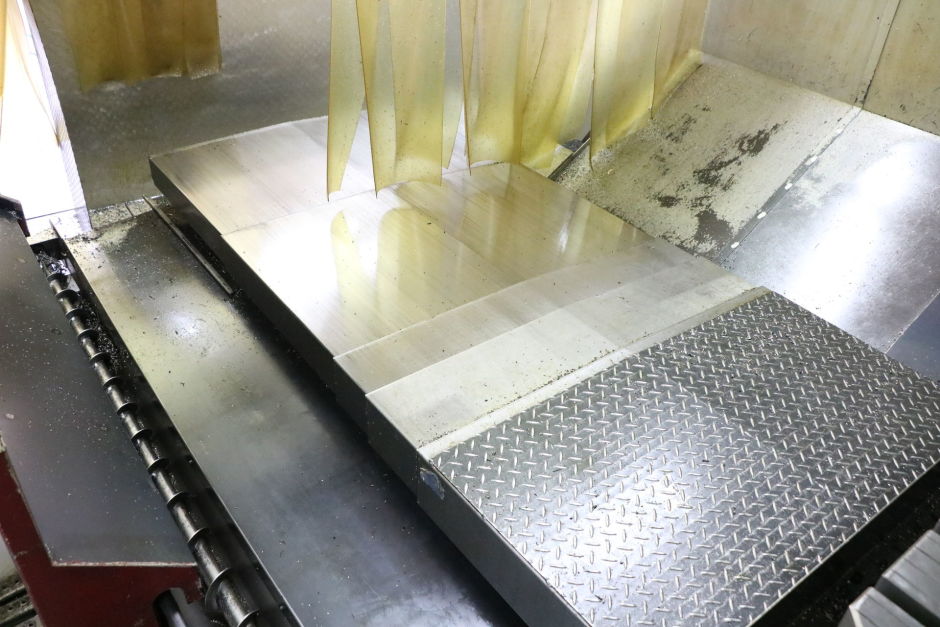

TABLE:

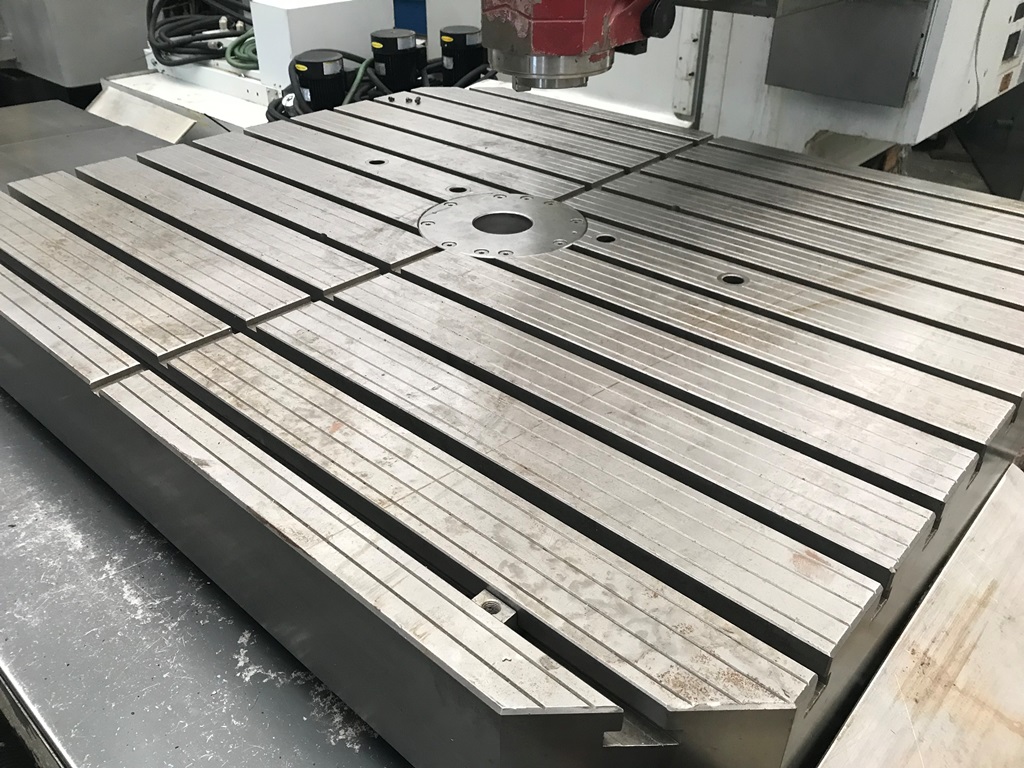

-Rotary table mm 1600x1400
-T-slots (numberxwidth) Noxmm 11x22H7
-Distance between T-slots mm 125
-Max laod Kg 8000
TRAVEL:
-Longitudinal travel mm 3000
-Cross travel mm 1250
-Vertical travel mm 1600
SPINDLE:
-Spindle speed rpm 4000 (0-1000/1001-4000)
-Spindle taper ISO 50 - BT 50
-Spindle motor power kW 28/38
TOOL CHANGE:

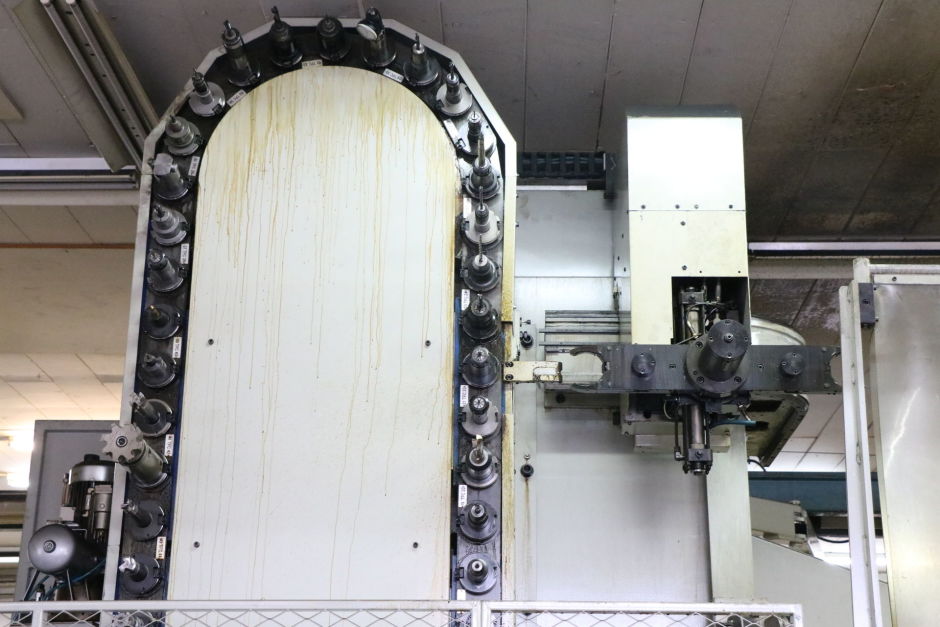

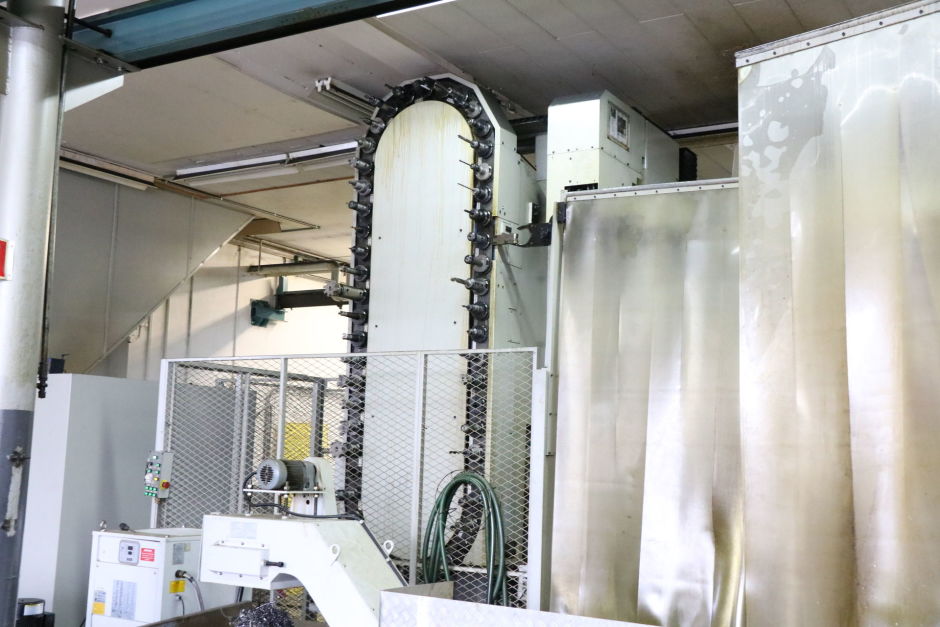

-Tool magazine 50 positions
APPROX. OVERALL DIMENSIONS AND WEIGHT:
-Machine size mm 8600x7012x3600
-Weight kg 32.000
EQUIPPED WITH:
-Drives SIEMENS SIMODRIVE 611

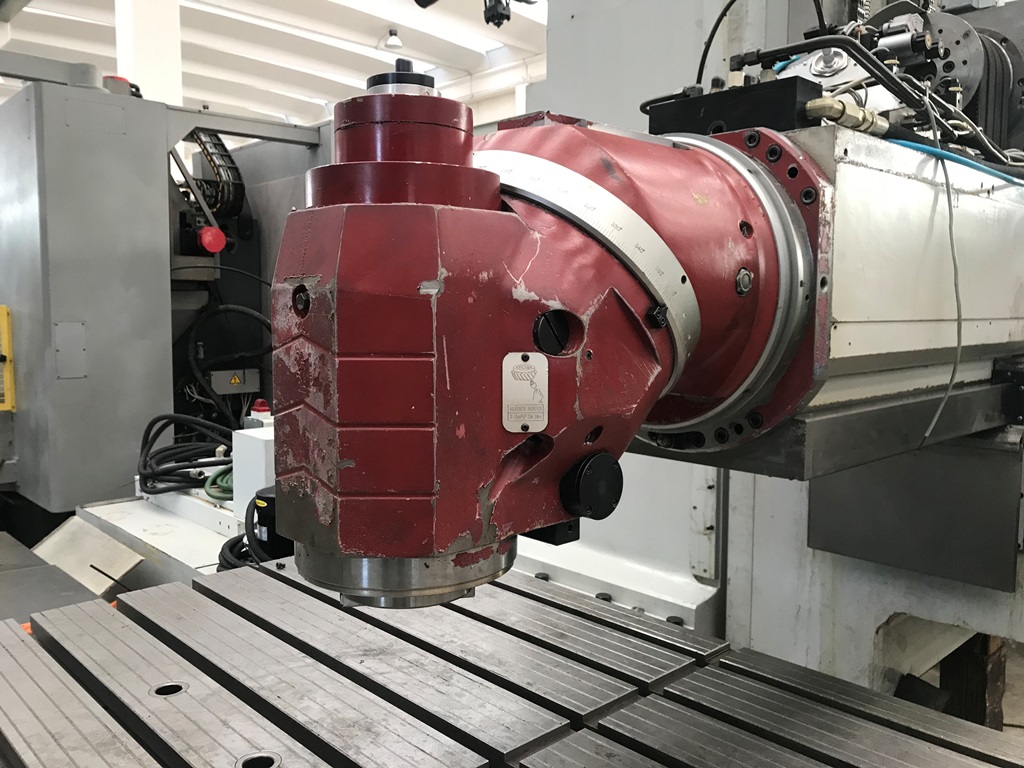

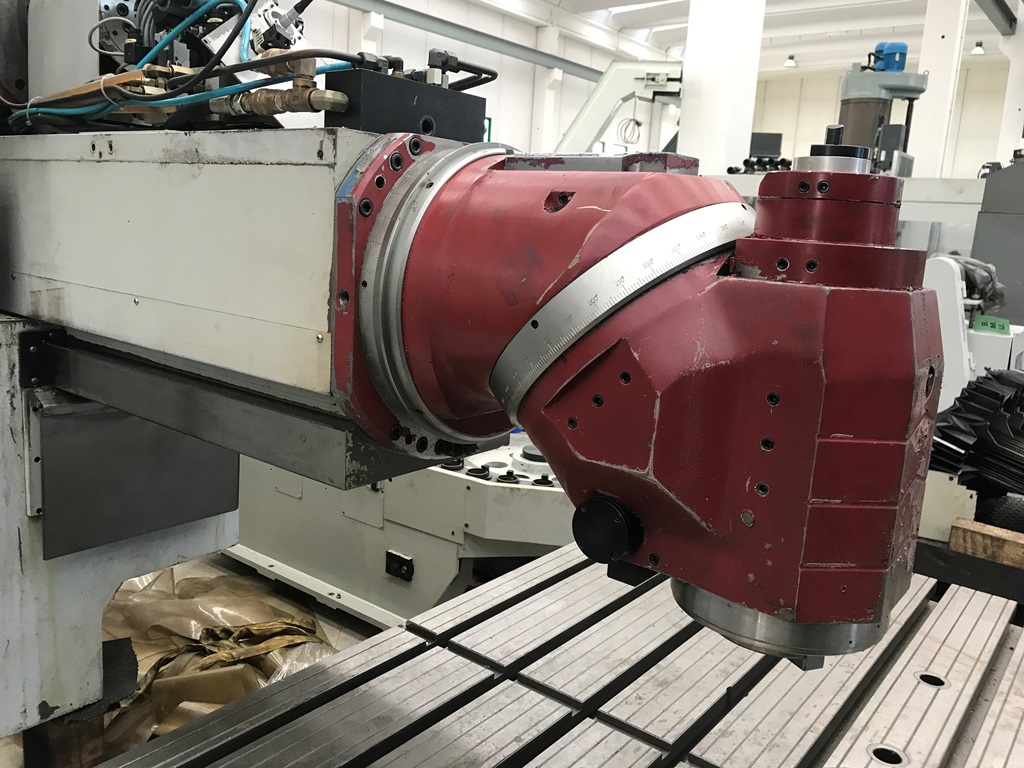

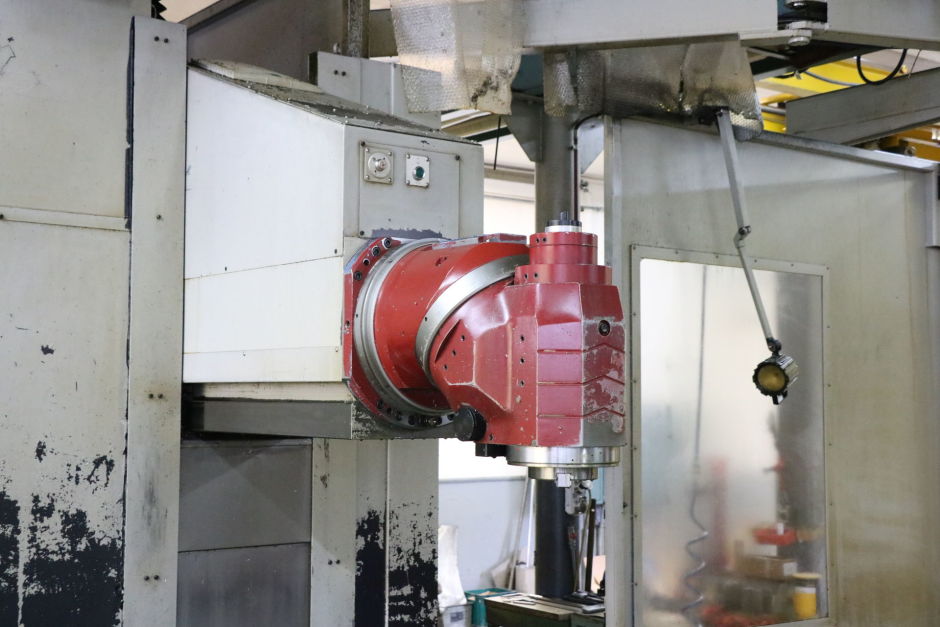

-Swivel head automatic 2 axis
-High pressure through spindle
-Chip conveyor
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
