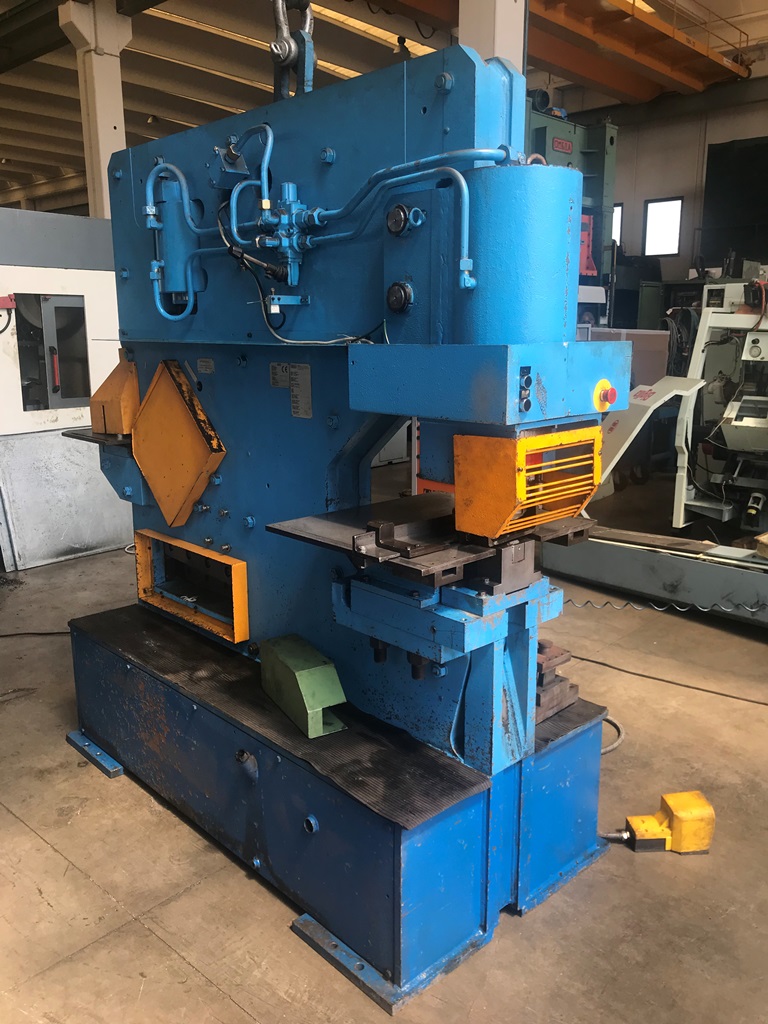

SHEAR PUNCHING OMERA MOD. OM/120/HY
Punching machines
sheet metal working - Used Machines
OMERA
08146
08146
SHEAR:
Max plate size mm 600x15
Blade width mm 610
Working height mm 700
SLOTTING:
Size in one stroke (width x depth x thickness) per R=40 Kg/mm2 100x75x15
Working height mm 1205
CUTTING: kN 1200
Size round per R=40 Kg/mm2 55
Size square per R=40 Kg/mm2 50
Angular 90 degrees mm 150x150x14
PUNCHING:
Max effort kN 1200
Standard capacity for R=40 Kg/mm2 diam.35 su 25
Stroke mm 0:80
Gap mm 610
Working hight mm 1100
MACHINE DATA:
First stroke (travel 20 mm) c/min 30
Size lenghtxwidthxH mm 2180x950x2455
Machine weight Kg 4600
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
