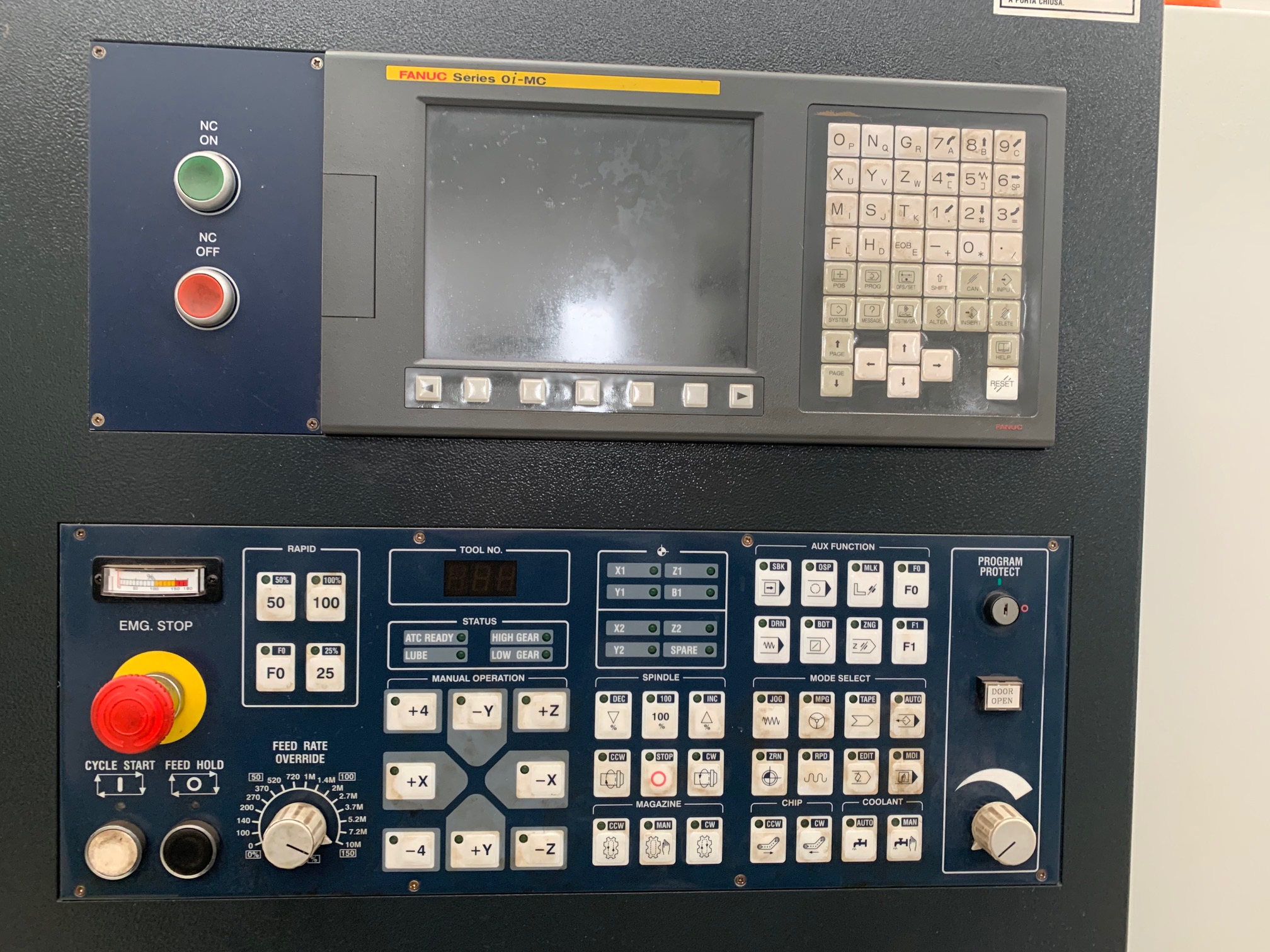

CNC FANUC OiMB
MACHINE DETAILS:
- Table size mm 600x1420
- T-slots mm 18x5x100
- Table load capacity kg. 1.000
- Longitudinal X axis mm 1300
- Cross Y axis mm 610
- Vertical Z axis mm 560
- Distance table/spindle mm 130-690
- Distance spindle centre/column mm 640
- Distance table/floor mm 910
- Distance table centre/column mm 320-930
- Rapid feedrates axis X e Y M.18
- Rapid feedrates axis Z M.15
- Working feedrate axis X Y e Z mm/min. 1-10000
- tool mamazine arm capacity 24 tools
- Tool taper BT40
- Max tool size with full adjacent pocket mm 80
- Max tool size with empty adjacent pocket mm 150
- Max tool weight kg 7
- Max tool lenght mm 300
- Time tool change 4 seconds
- Time tool change chip to chip 7,5 seconds
- Spindle nose ISO NO.40
- Main motor power KW 11
- Machine weight Kg. 7100/7250
- Max machine height mm 2583
- Overall size mm 3550x2188
STANDARD ACCESSORIES:
- Belt type spindle
- Rigid tapping
- Air cleaning system for spindle taper
- Complete safety splash cover
- Coolant unit
- Pneumatic system
- Automatic lubrication system
- Transformer
MACHINE EQUIPED WITH :
- Speed revolution 10.000 rpm
- Chip conveyor
- Preparation for 4th axis
- Table GOLDEN SUN CNC251R
- Toolholder taper

USED MACHINE
