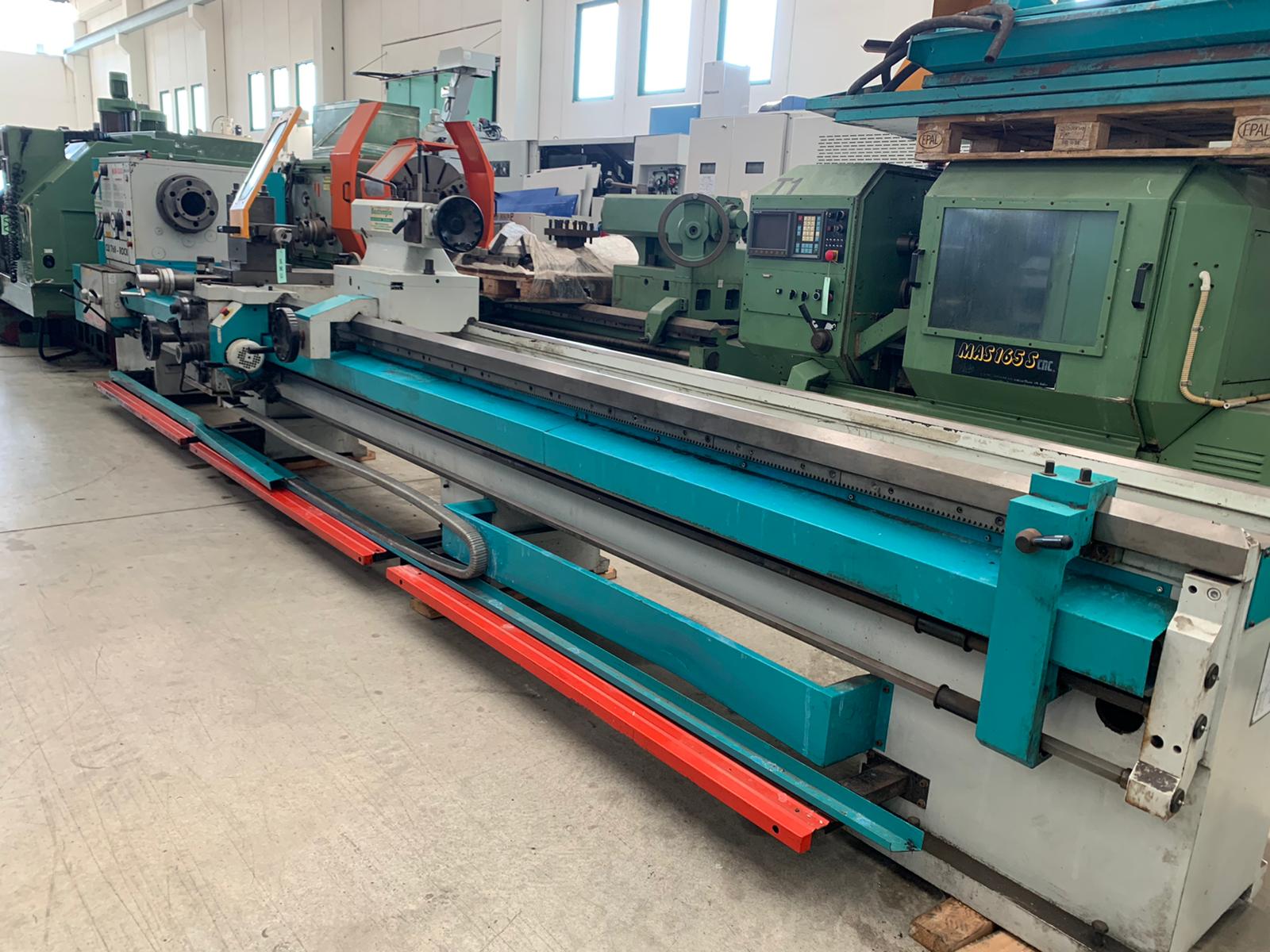

CAPACITY:
Heigh of center mm 380
Swing diameter over bed mm 760
Swing diameter over carriage mm 520
Distance between centers 5000 mm
Bed widht mm 560
Bar passaging mm 128

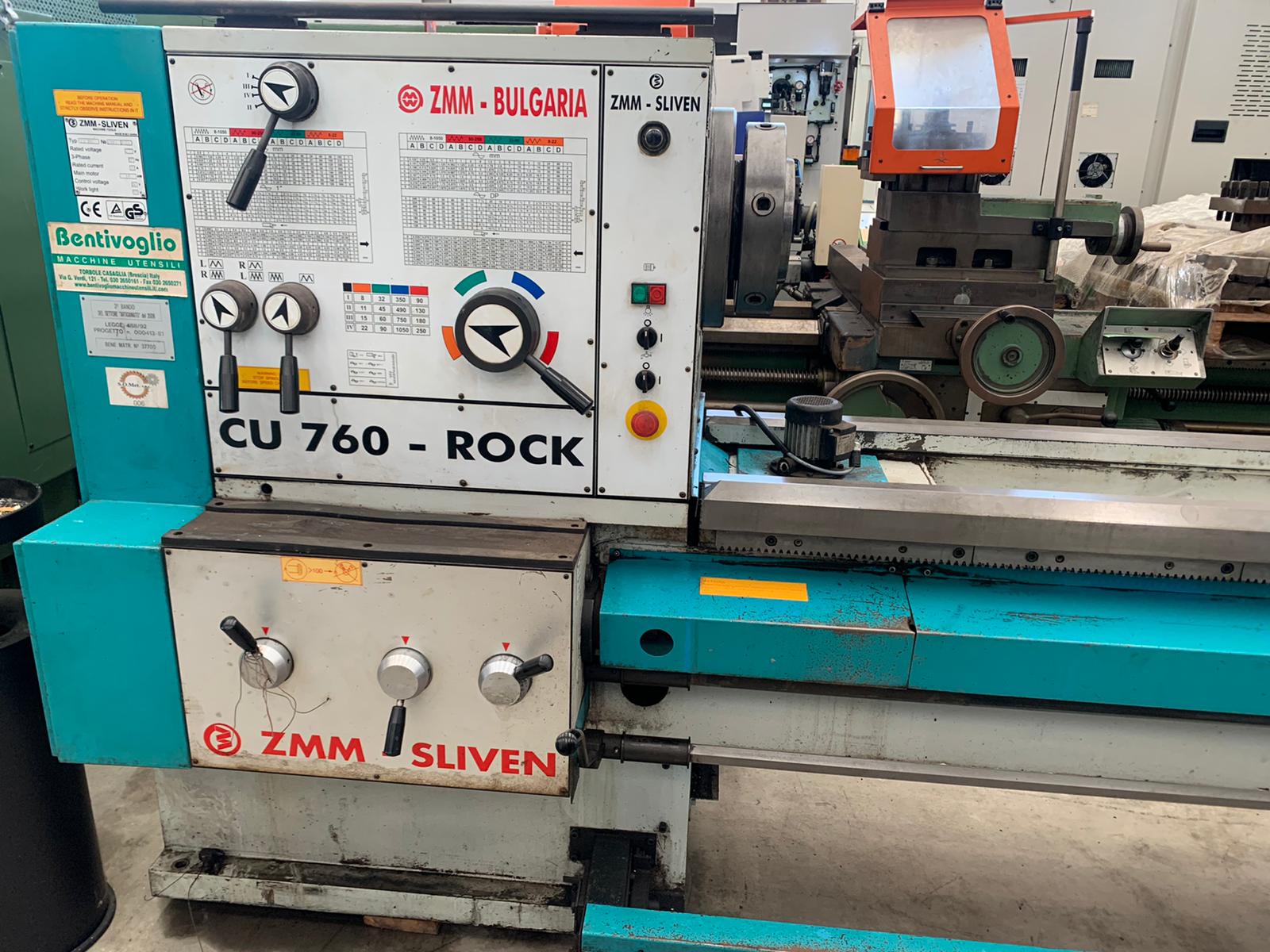

SPINDLE:
Spindle nose DIN 55027 n.11
Spindle speed no.15
Spindle speed range 8-1050 rpm
Spindle bore mm 130
Main motor power Kw 11

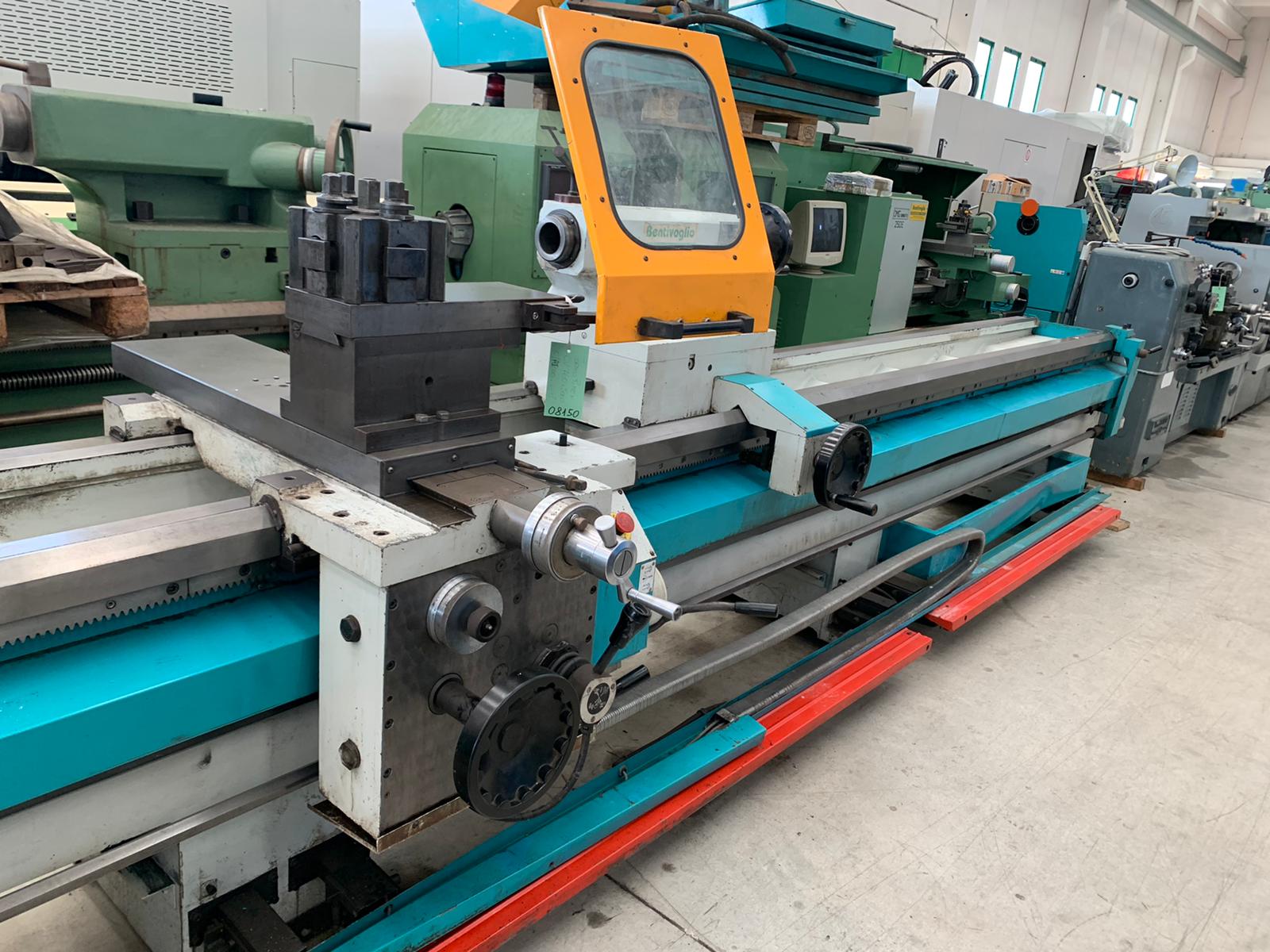

CARRIAGE:
Carriage stroke mm 395
Cross slide stroke mm 150
TAILSTOCK:
Quill diameter mm 95
Quill cone Morse 6
Quill stroke mm 225
OVERALL DIMENSIONS AND WEIGHT:
Approx. overall dimensions (lenghtxwidthxH) mm 6950x1630x1650
Approx. weight Kg 5800
MACCHINA BASE ED ACCESSORI STANDARD:
-Cast iron bed
-bed guideways width hardened and ground mm 560
-Head with hardened and ground gears
-Machanical brake and clutch
-Type of threading execution: Metric , whitworth, modular, diametral pitch
-Elecrtical cabinet/cables, general switch for door interlock, rele termico main motor cover, emergency brake with push botton and foot pedal, low voltage electric supply 24V
-Carriage with cross and longitudinal rapid feedrates
-Coolant system with electropump
-Guideway lubrication system with manual pump
-Lighting system
-Turret GFB type D
-Spindle adapter sleeve
-Full lenght rear splash guard, splash guard for chuck and turret guard
-Shaft and leadscrew protection
-Manual books and EC conformity
MACHINE EQUIPED WITH:
-N.2 steadies

MACCHINA USATA
