LASER MITSUBISHI CO2
Laser cutting
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
VIDEOS:
08169

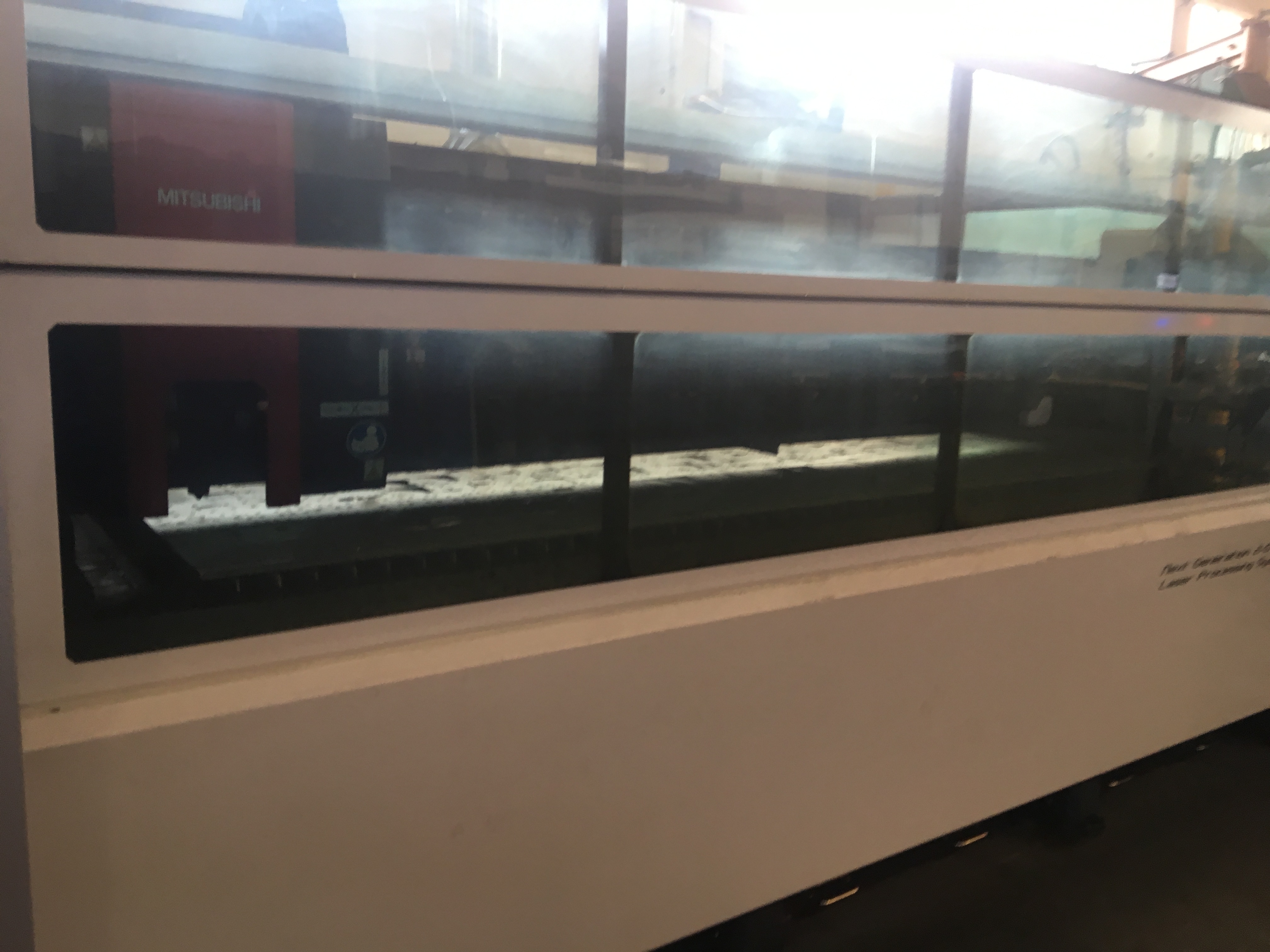

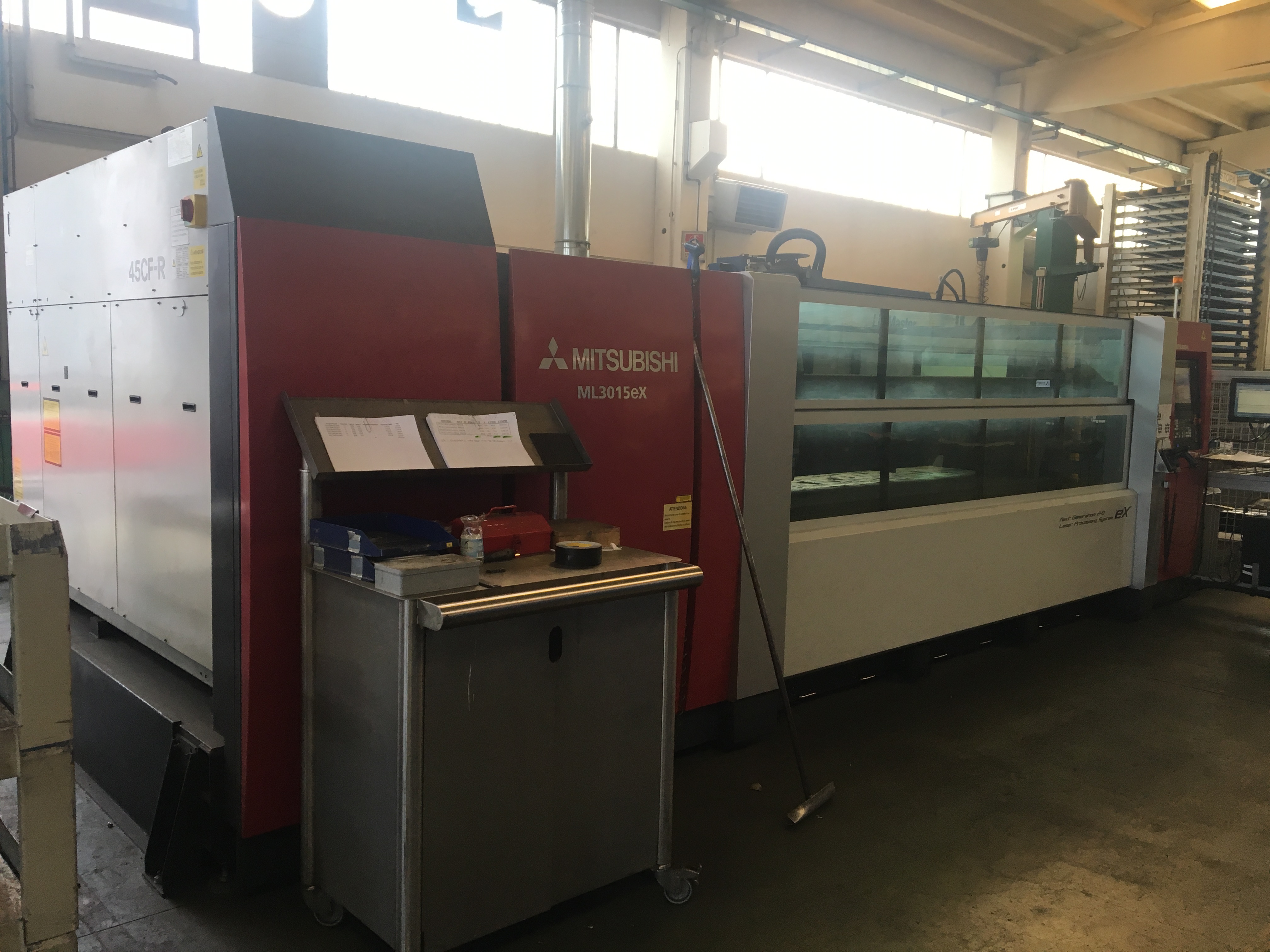

PROCESSING SYSTEM ML3015EX-45CF-R
MACHINE TYPE:

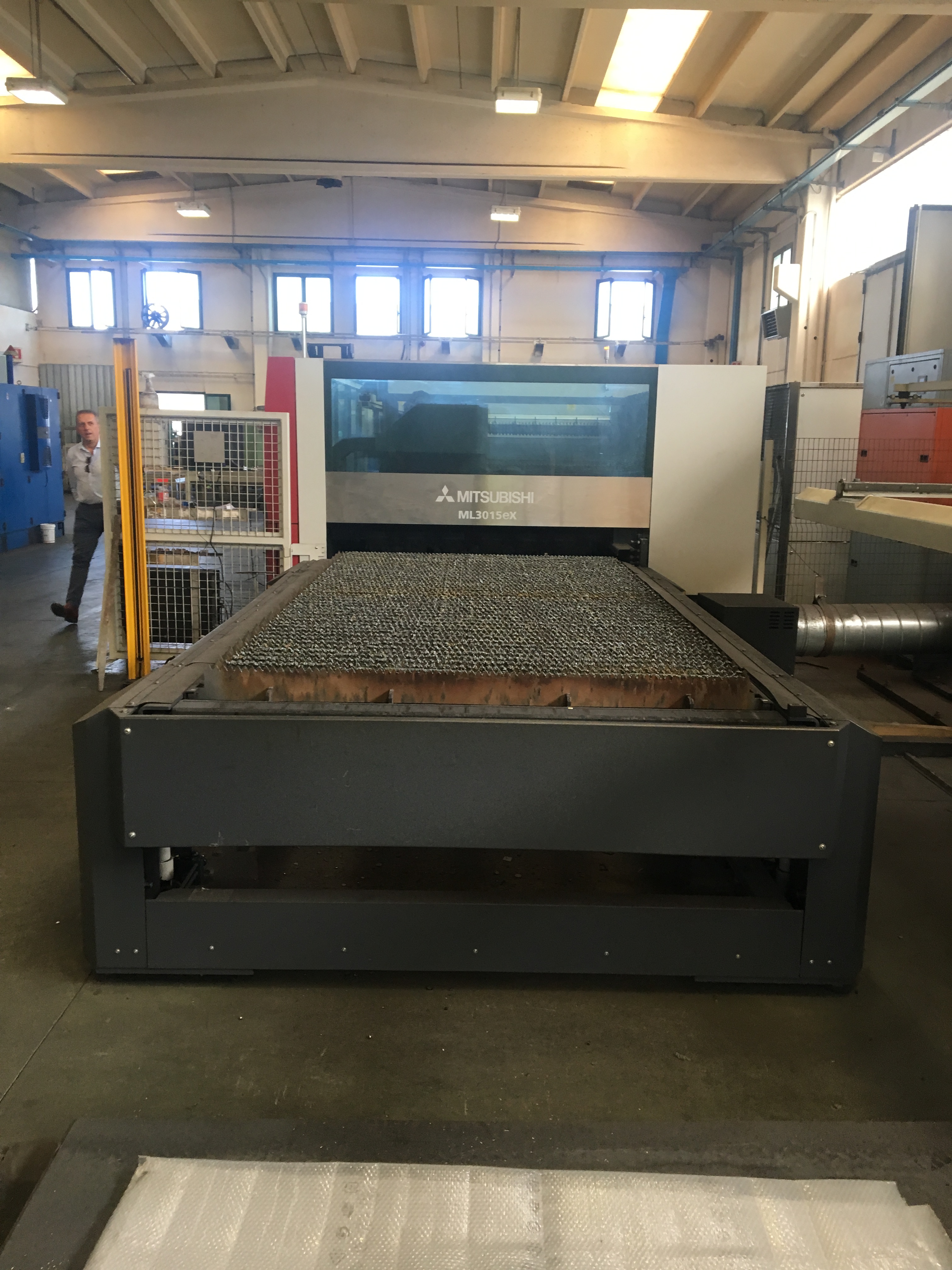

Optical mobile system, two pallet interchangable, one pallet manual
Cross-flow resonator Mitsubishi
Resonator power 4,500 W

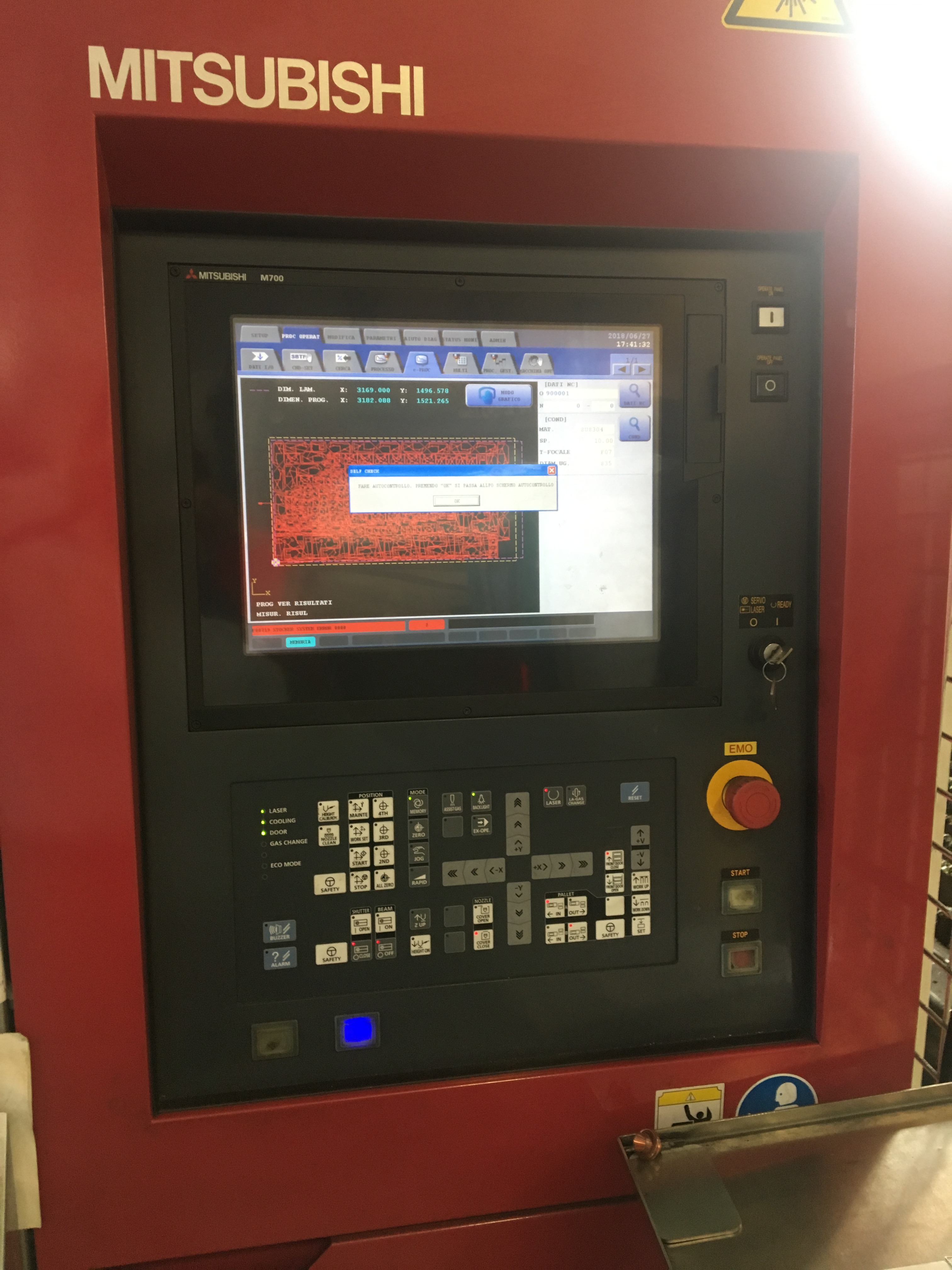

Control M700 Mitsubishi, 15’’ touch screen
Max working area 3,100 x 1,565 mm
Max weight sheetmetal 930 kg
Machine size 10.180 x 3130 x 2260 mm
Machine weight 10.000 kg
Max axis limit X/Y/Z 3.100/1,565/150 mm
simultaneous speed axis X, axis Y 140 m/min
Max working speed 50m/min
HEAD
PH-XS Mitsubishi, Auto Focus, 5”, 7.5’’, and 10’’ lent
THICKNESS AND MATERIAL
Mild steel 0,5 - 25/28 mm (Oxygen) // 0,5 - 6/9 (Nitrogen)
Mild steel, galvanised 0,5 - 3/4 mm (Nitrogen)
Stainless steel 0,5 - 20/22 (Nitrogen)
Aluminium 0,5 - 15/18 mm (Nitrogen)
Brass, copper 0,5 - 3/4 mm (Nitrogen)
EQUIPED WITH:

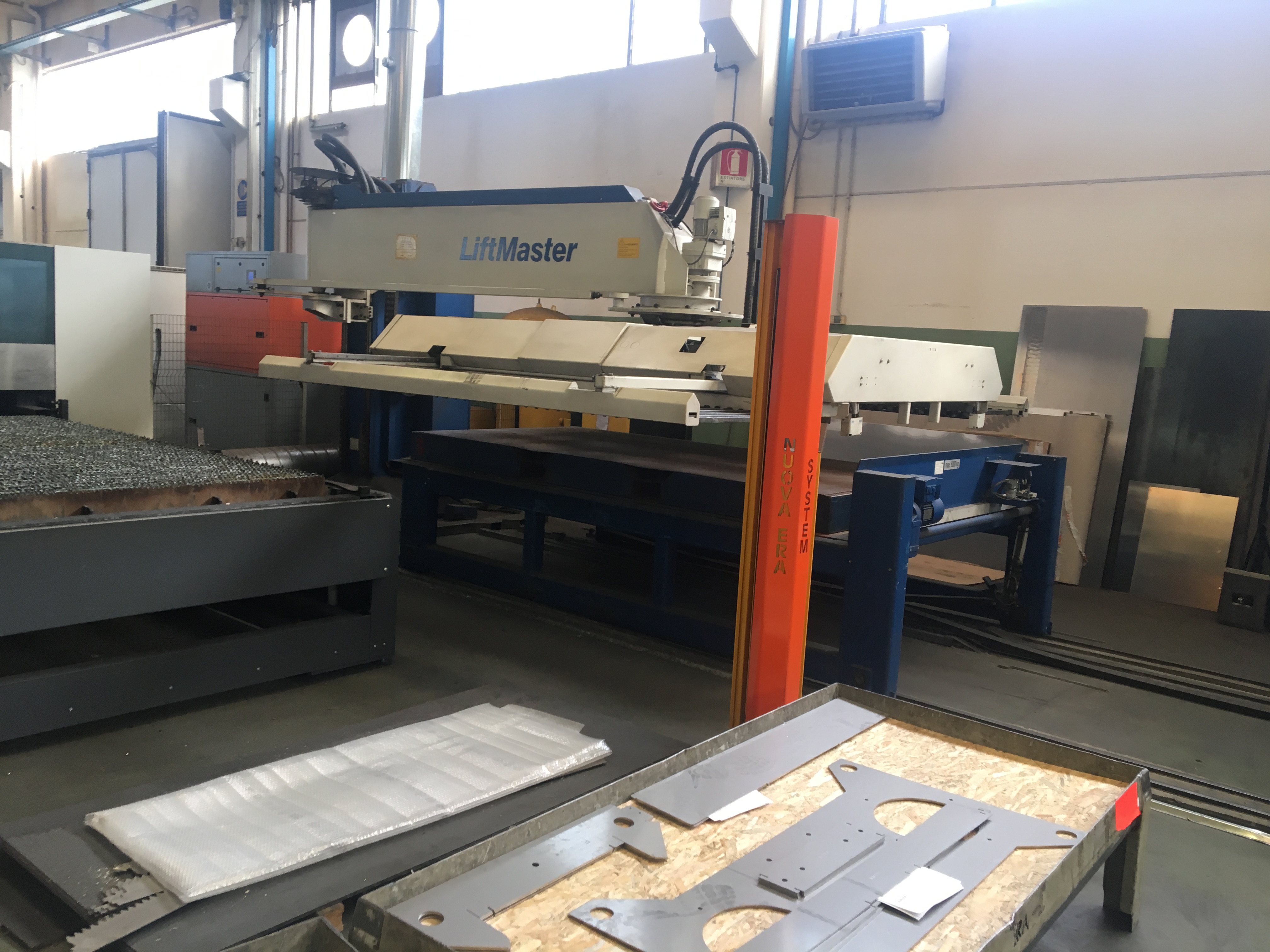

-LIFT MASTER TRUMPF

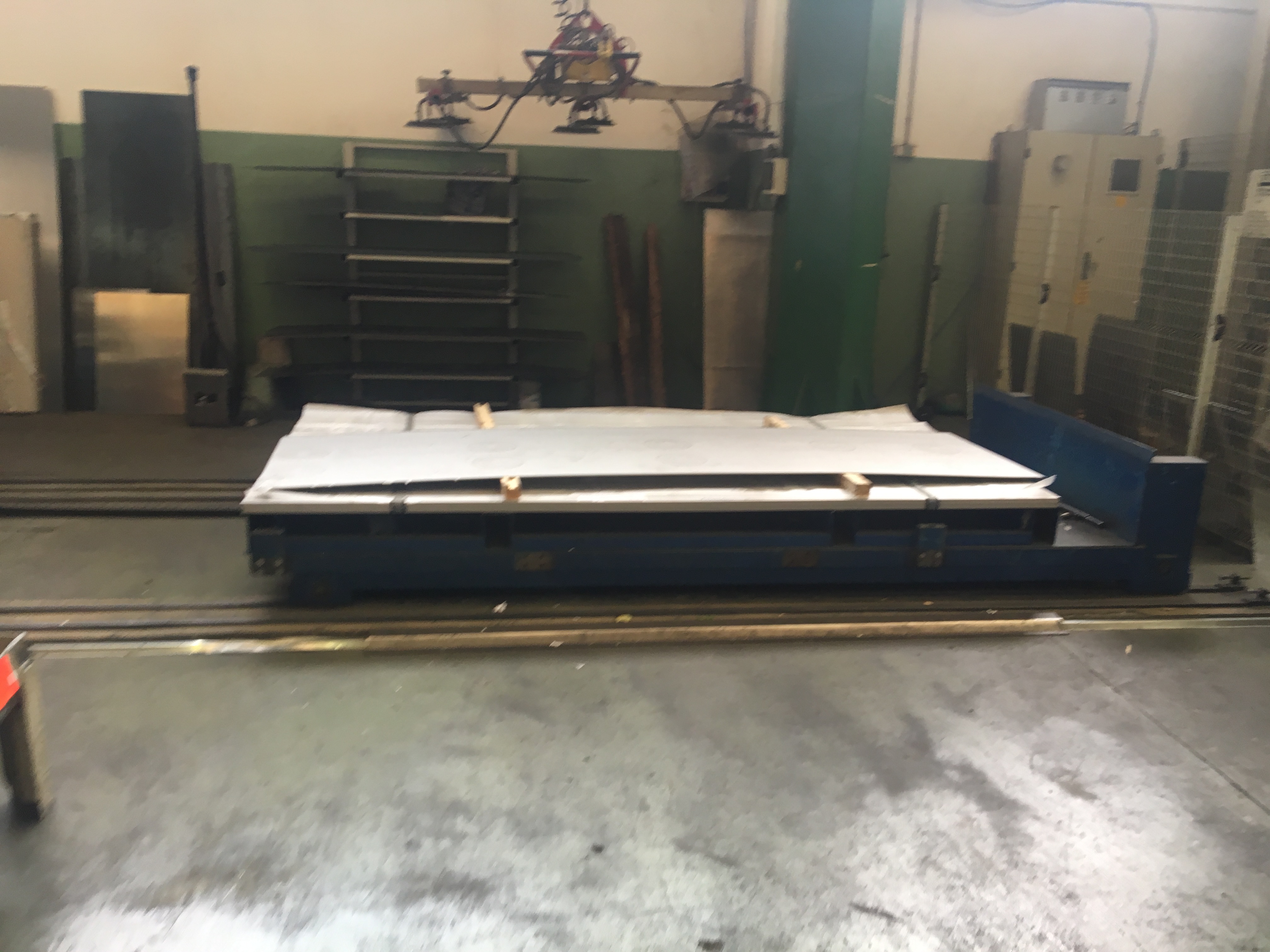

Piece loading:
Max sheet format mm 3000x1500
Min sheet format mm 2000x1000
Max sheet thickness mm 25
Max sheet weight Kg 900
Piece unloading:
Max sheet format with grate mm 3000x1500
Min sheet format with grate mm 150x150
Max sheet thickness (cwith grate) mm 20
Max sheet thickness (with pallet) mm 25
Max sheet weight (with grate) Kg 720
Max sheet weight (with pallet) Kg 900
USED MACHINE
YEAR 2014
POWER ON 3570
VIDEOS:
FILL OUT OUR FORM FOR MORE INFORMATION
