CENTER SUPERMAX MOD. YCM-VMC-85A
Single pallet
machine center - vertical - Used Machines
SUPERMAX
08195
08195

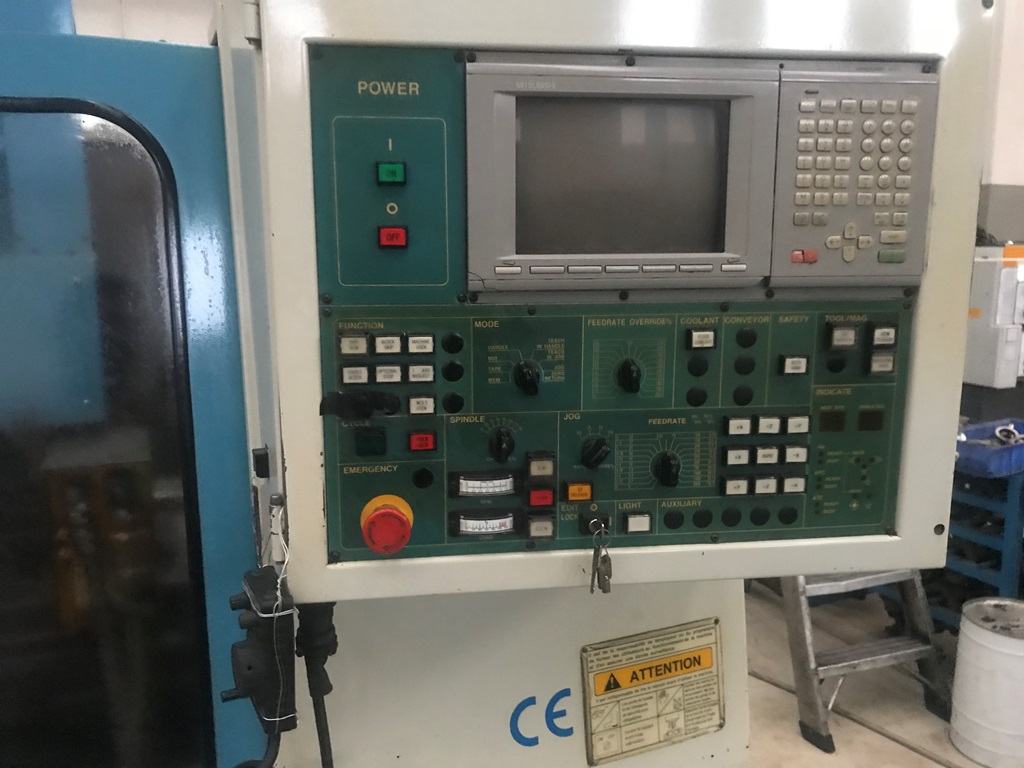

CNC MITSUBISHI MELDAS 300
TABLE:
Dimensions mm 950x400
T-slot mm 18x3x125
Max loading capacity Kg 500
STROKES:
Longitudinal stroke axis X mm 860
Cross stroke axis Y mm 440
Vertical stroke axis Z mm 630
Distance between spindle nose to table surface mm 120-750

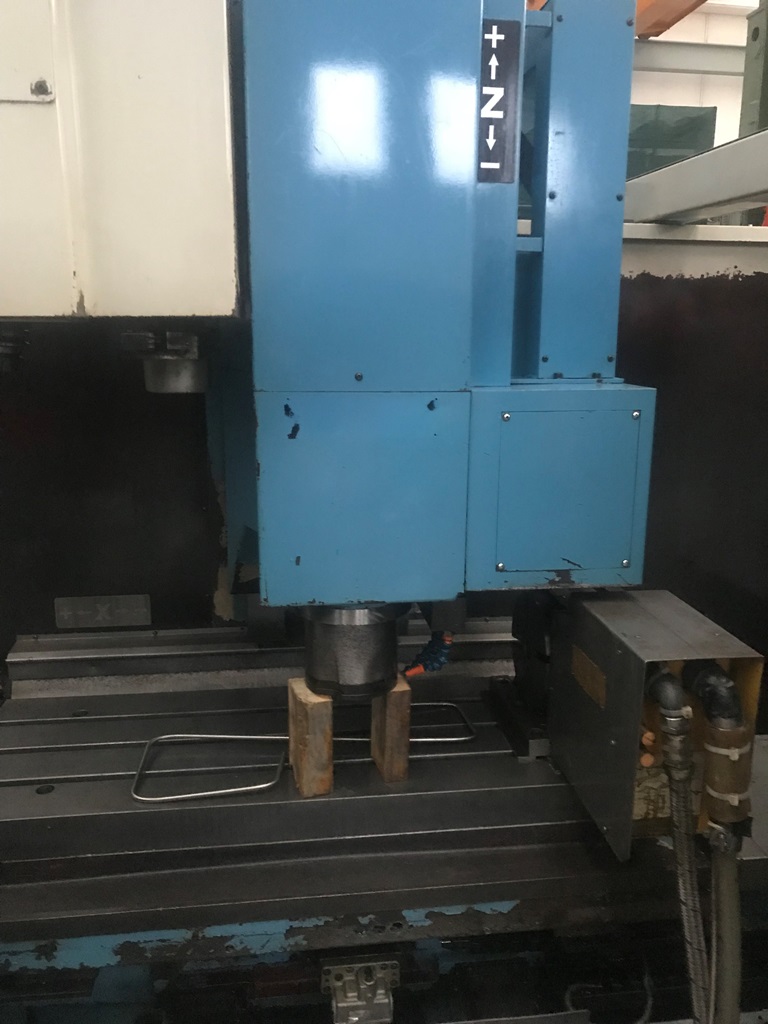

SPINDLE:
Spindle motor power kW 5,5 (kW 7,5 / 30 min.)
Spindle taper BT40
Spindle speed rpm 45-6000

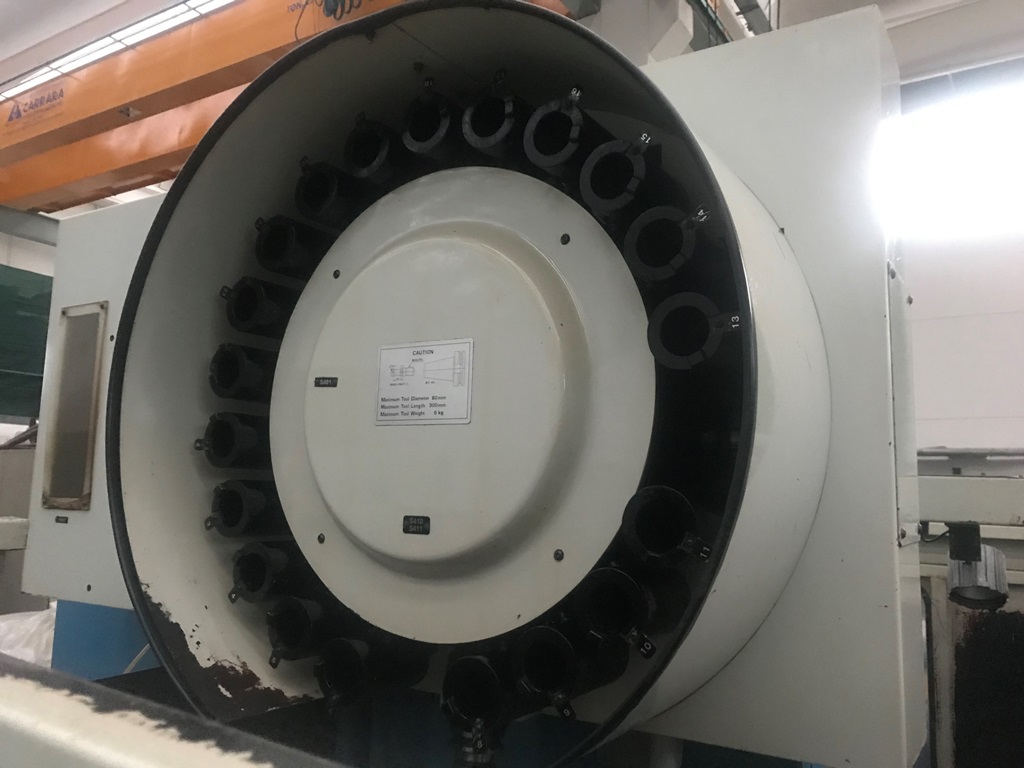

ATC:
Tool change 22 positions
Max tool weight Kg 6
Max tool dimensions mm diam.80x300
MACHINE WEIGHT:
Net weight Kg 4600
EQUIPPED WITH:
-Rotary table (4th axis) mm 250
USED MACHINE
