MILLING FAGIMA MOD. KS3000
Floor type
milling cnc - Used Machines
FAGIMA
08194
08194

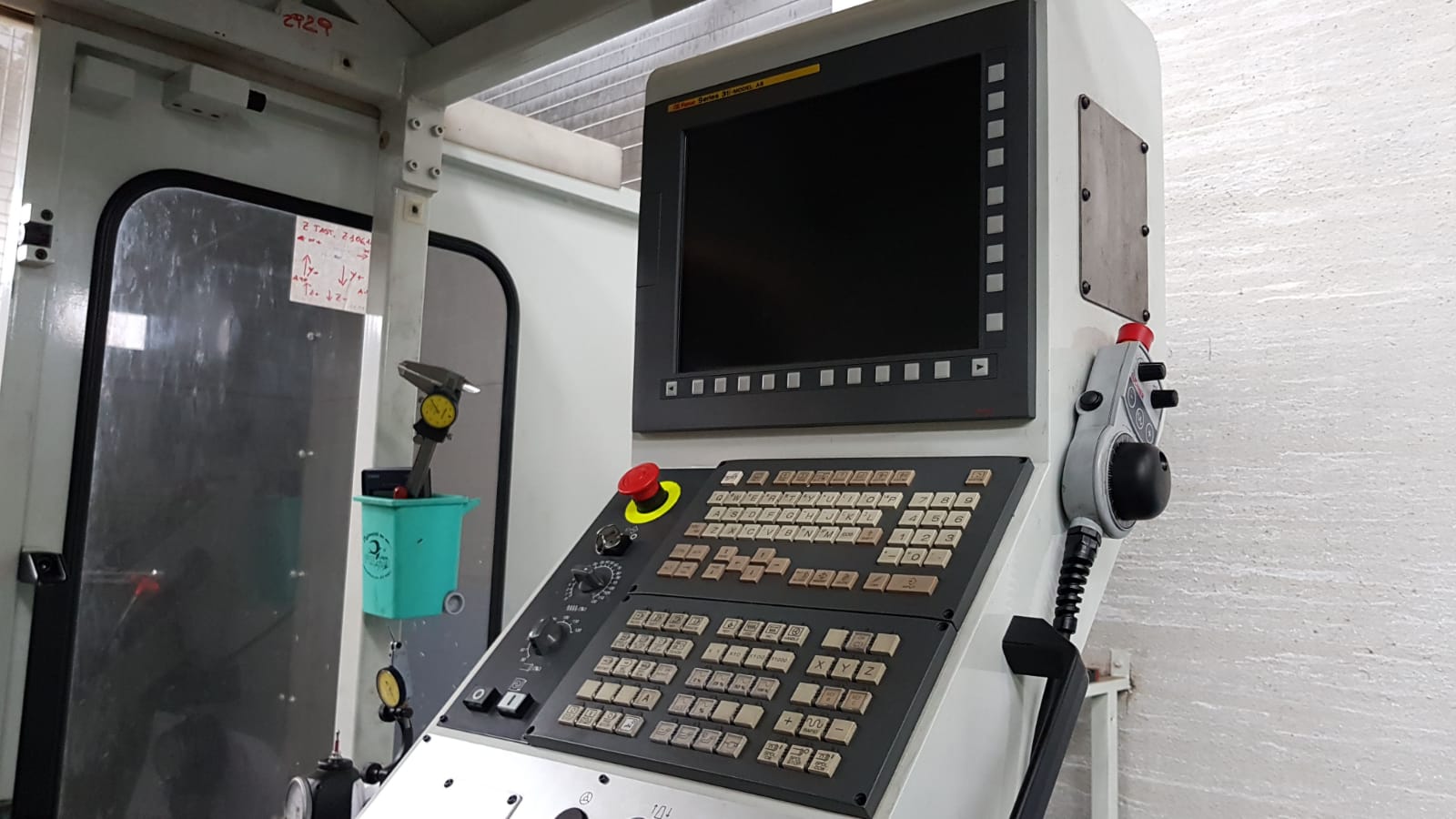

CNC FANUC series 31
Axis X mm 3000
Axis Y mm 1250
Axis Z mm 2000
Rapid feedrates X,Y,Z mm/min 30.000
Spindle speed rpm 30-5000
Spindle power S1/S6 kW 26
Spindle speed ISO 50
EQUIPPED WITH:

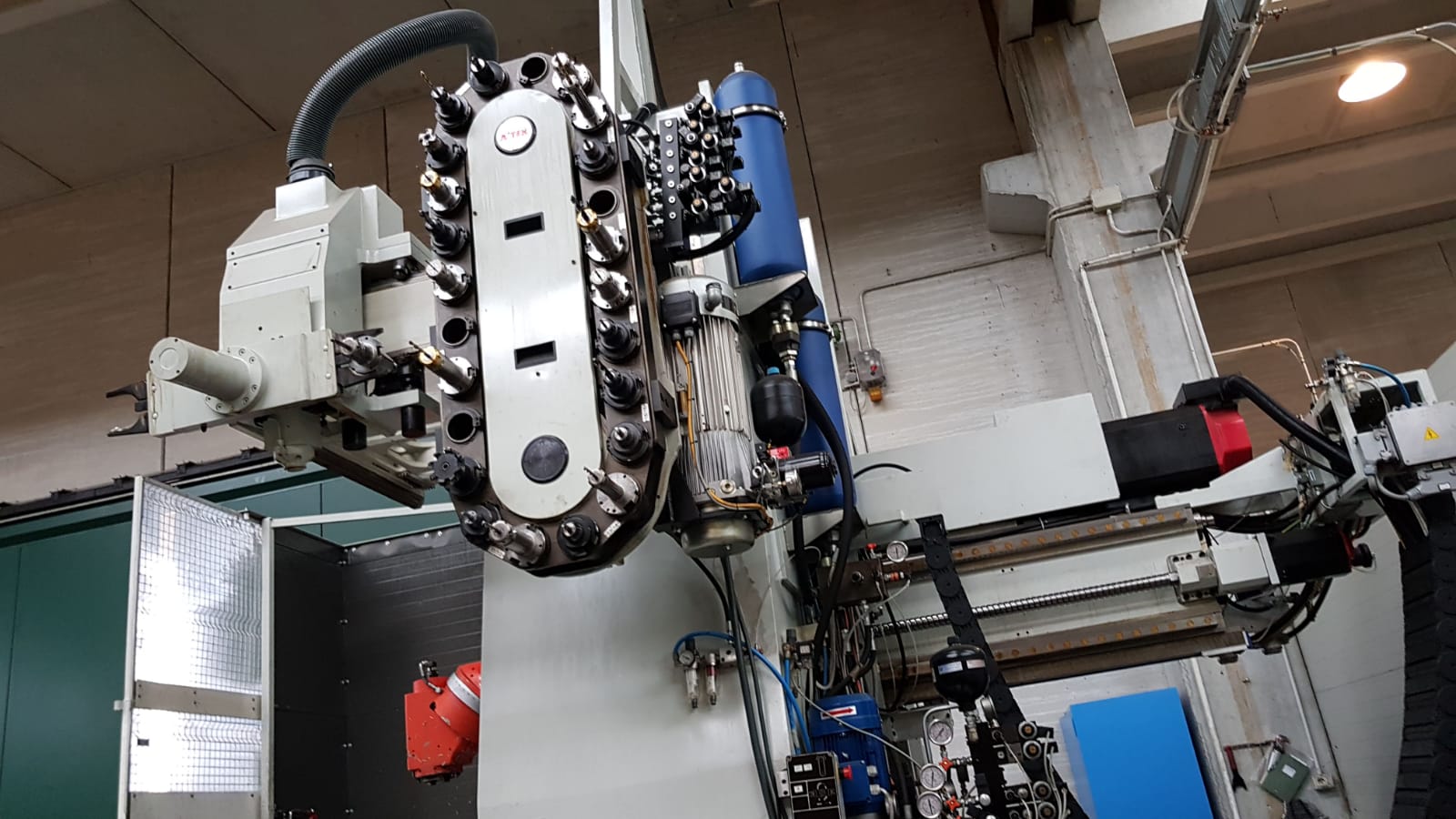

-Tool change 24 positions

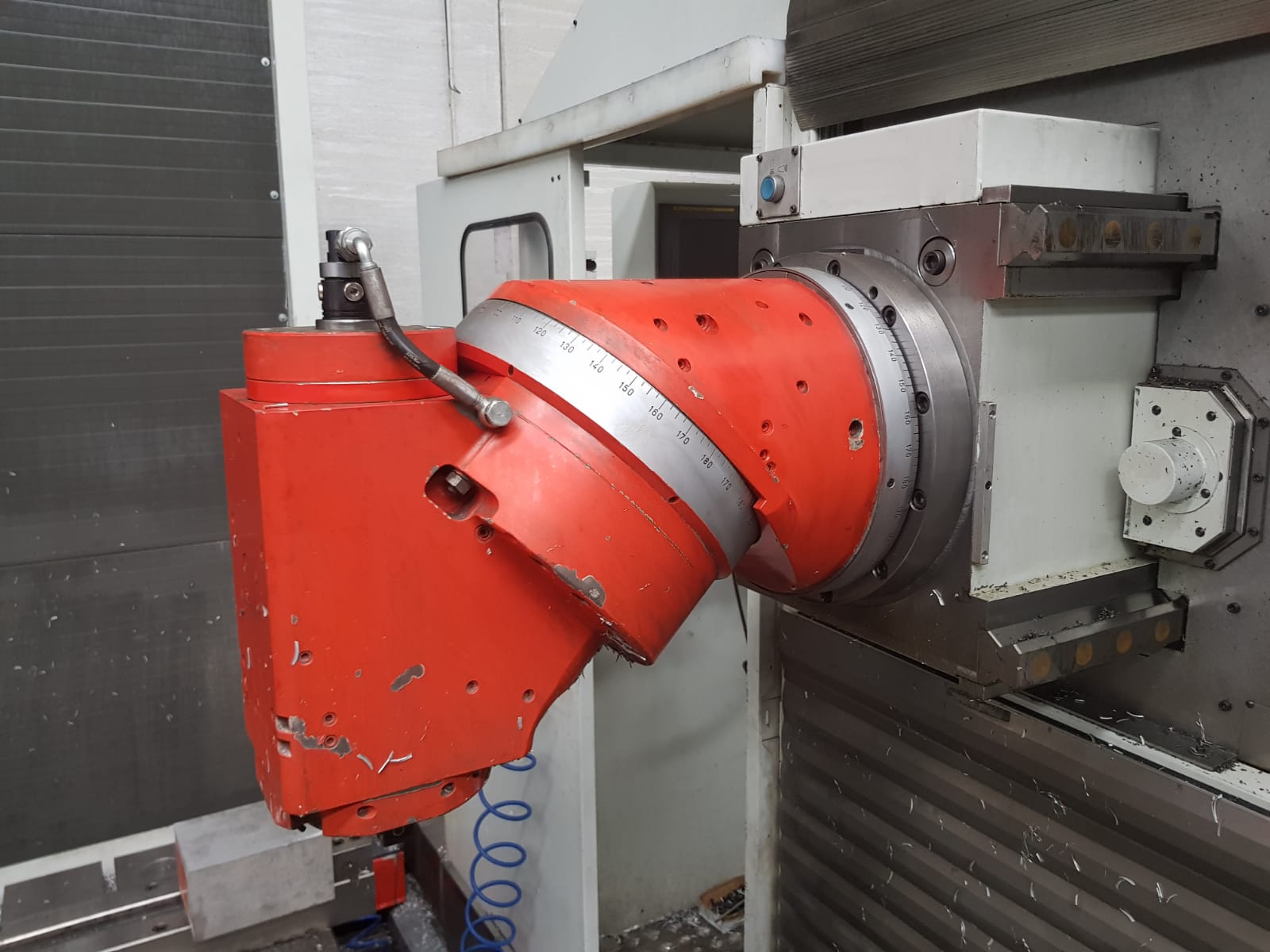

-Universal automatic head 2,5 - 2,50 degrees
-Praparation for high pressure through the spindle

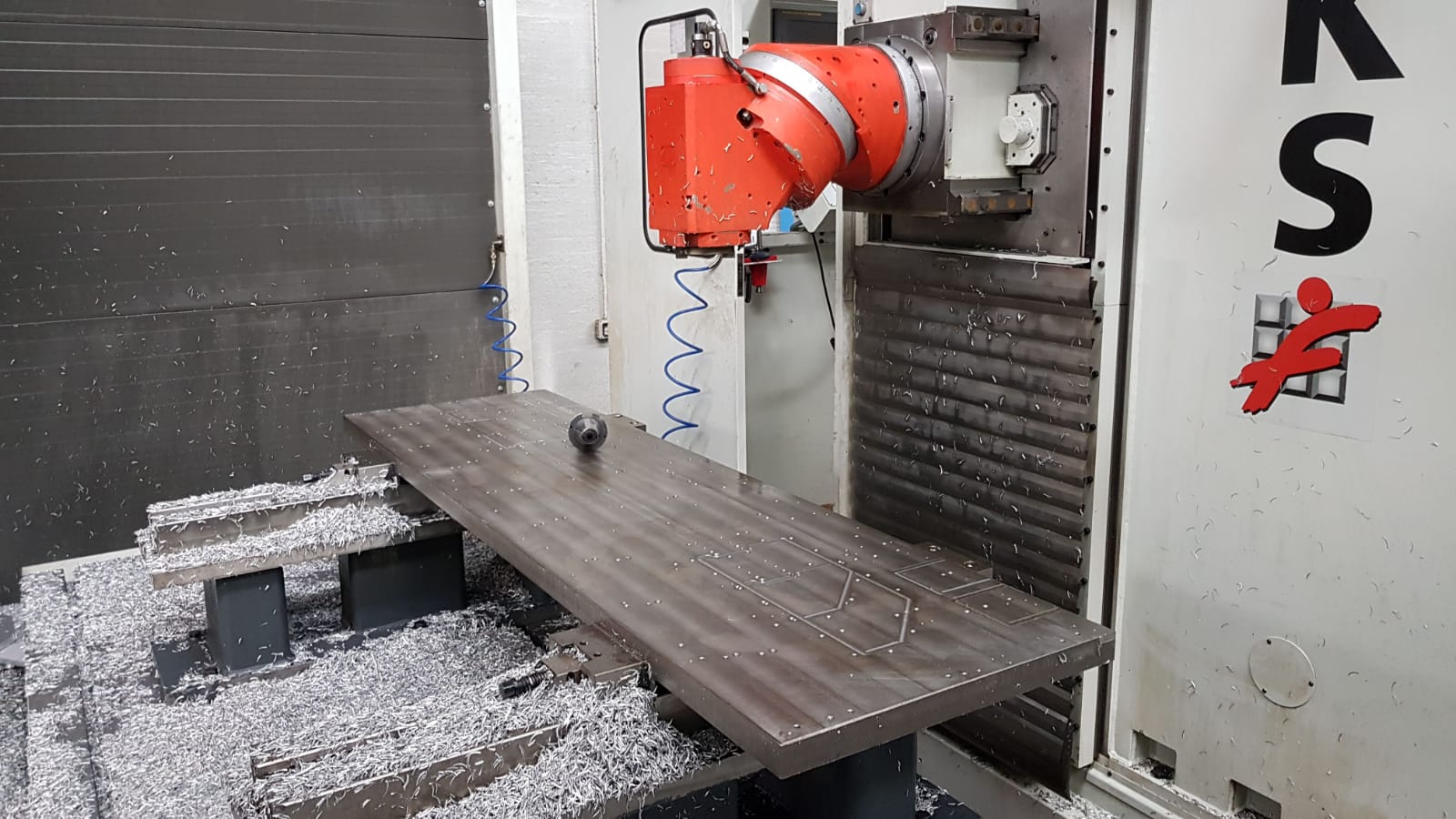

- Stolle plate JECOM mm 3500x1500x H300
- Chain type chip conveyor
USED MACHINE
YEAR 2009
IMAGES:
