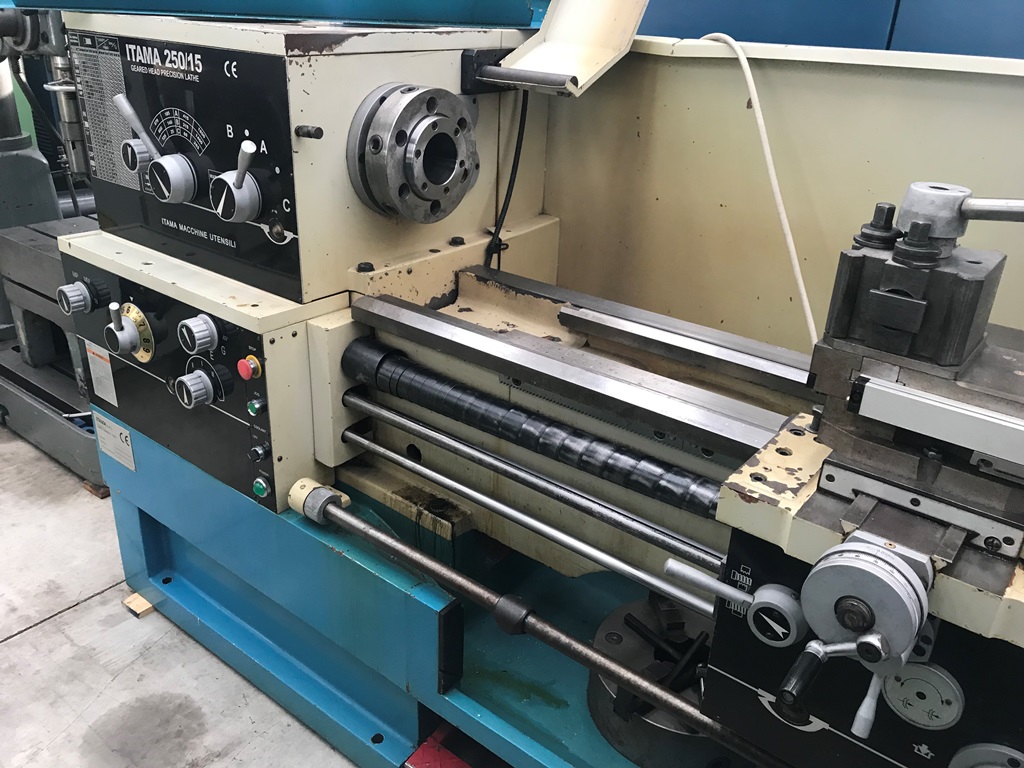

LATHE ITAMA MOD. 250/15
Diameter up to 600 mm
08214
CAPACITY:
Turning diameter over the bed mm 465
Swing diameter on the cross carriage mm 290
Turning diameter in the gap mm 700
Distance between centers mm 1500
SPINDLE:
Spindle bore mm 80
Spindle taper D1-8
Spindle cone MT-5
Spindle speed number 12
Spindle speed range 25-1800 rpm

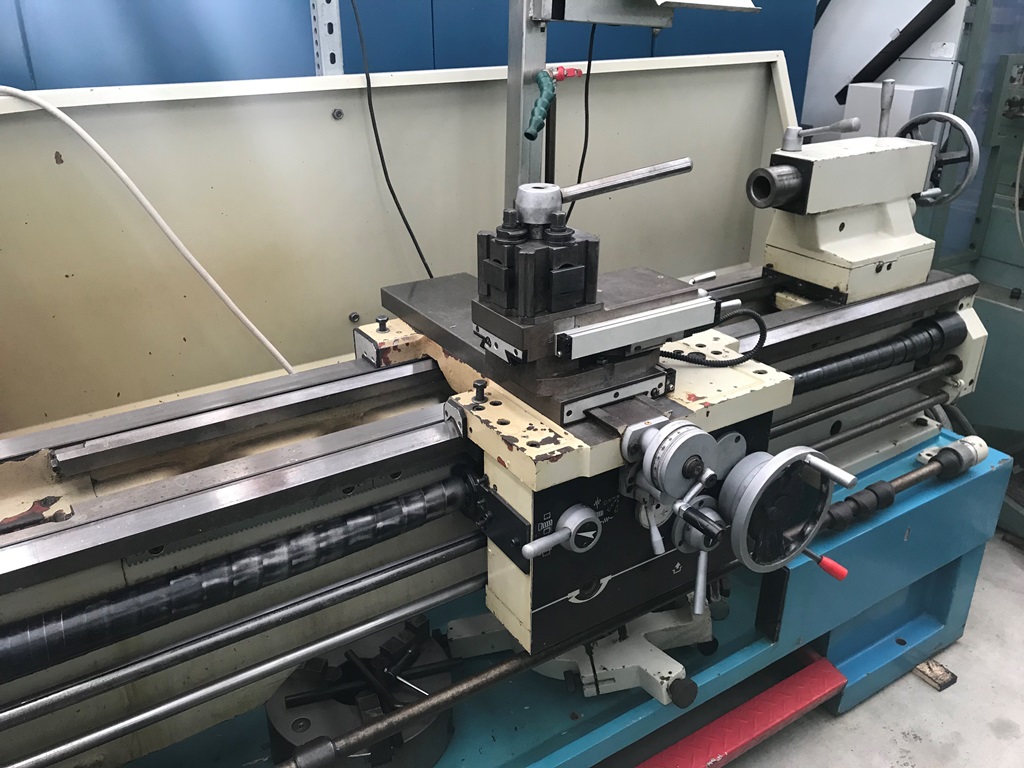

TURRET:
Max tool size 25x25 mm
Tool slide max travel 130 mm
Cross carriage max travel 230 mm
TAILSTOCK:
Diameter mm 75
Tailstock travel 130 mm
Tailstock cone MT-5
VARIOUS:
Main motor kW 5,7
Approx. net weight Kg 2800
EQUIPPED WITH:
-Self-centering chuck single guide diam. mm 315

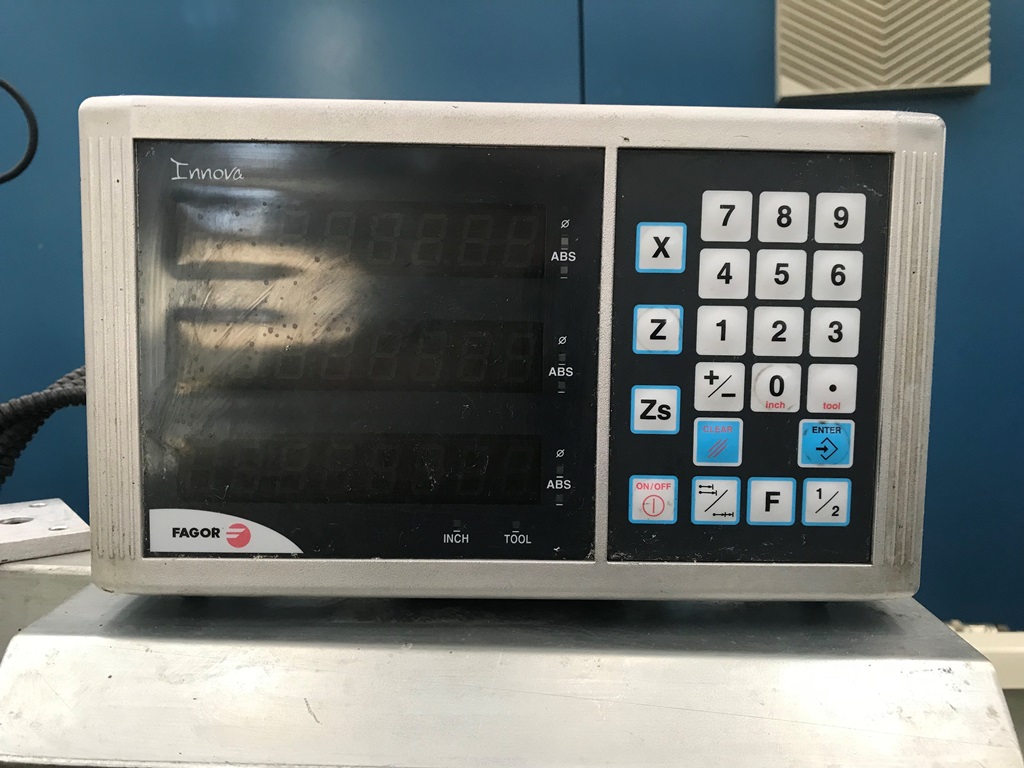

-DRO 2 axis FAGOR
-Rapid change turret type B
-Fixed rest diam. mm 200
-Steady rest diam. mm 110
-Chip collet tank
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
