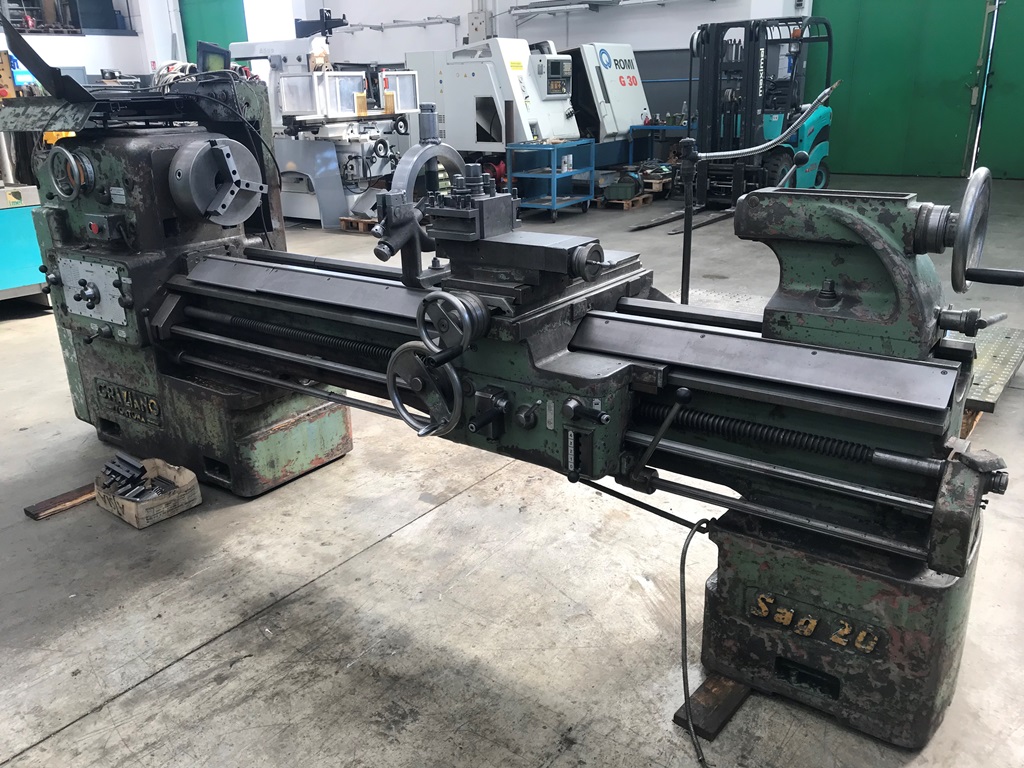

LATHE GRAZIANO SAG 20x2000
Diameter up to 600 mm
lathe conventional - Used Machines
GRAZIANO
08264
08264
Height center mm 254
Distance between center mm 2000
Width bed mm 360
Spindle bore mm 57
Spindle speed n.12 / rpm 26-1300
Spindle taper CAM-LOCK D1-6''
Quill tailstock C.M. N.5
Quill tailstock diameter mm 70
Motor power HP 10
Approx. weight Kg 2600
Approx. overall dimensions mm 3540x1065x1290H
EQUIPPED WITH:

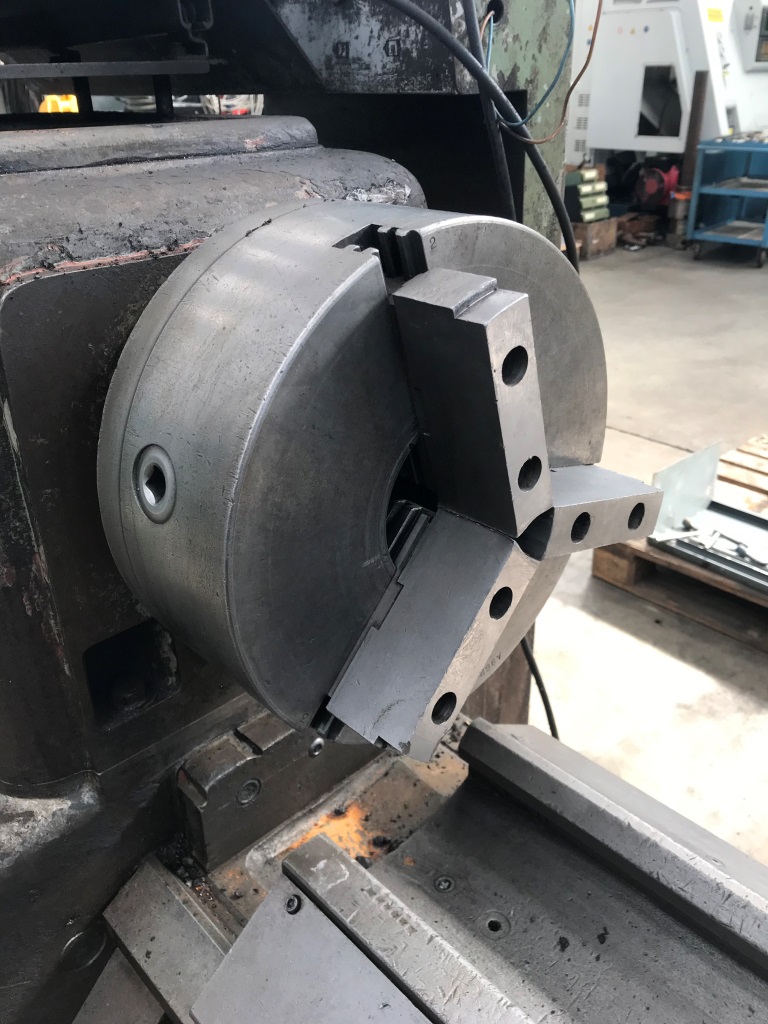

-Self-centering chuck FIAL DG diam. mm 300 3+3

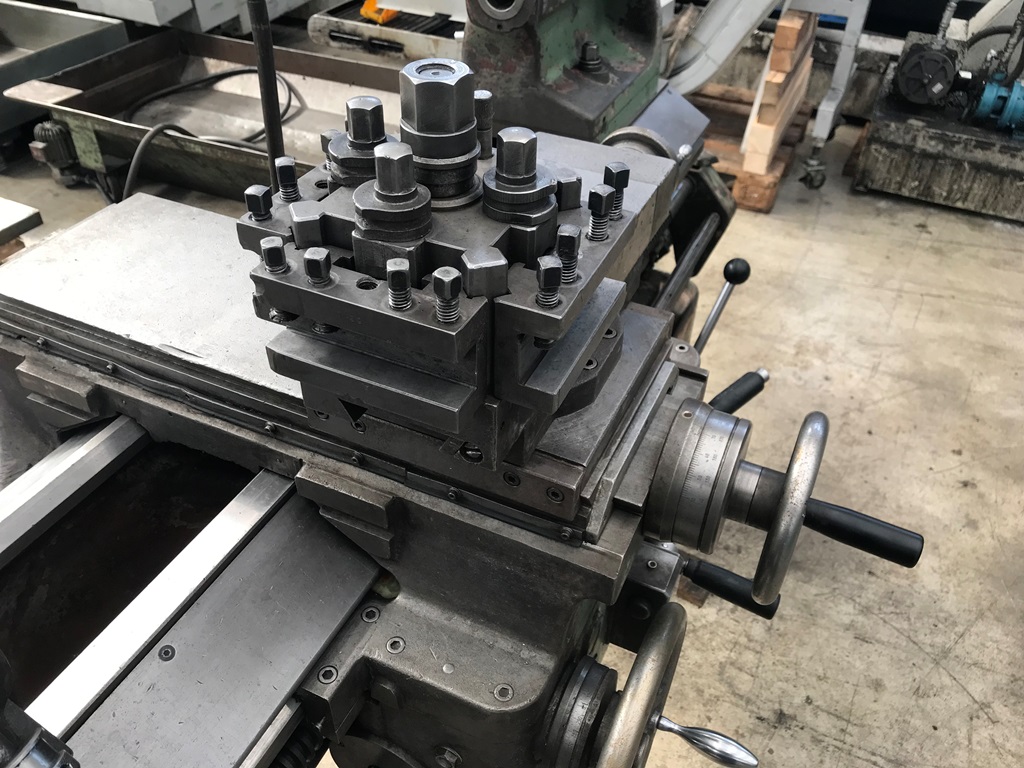

-Rapid changhe toolholder turret + 6 toolholders
-Plateau with 4 independent jaws diam. mm 400

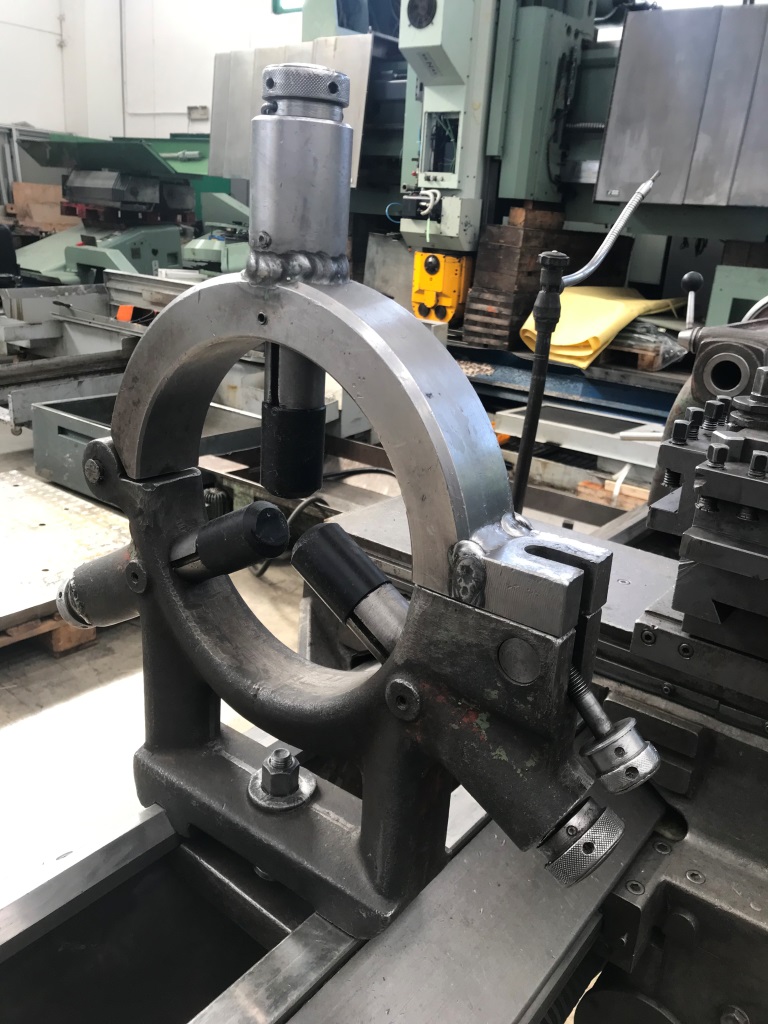

-Steady rest

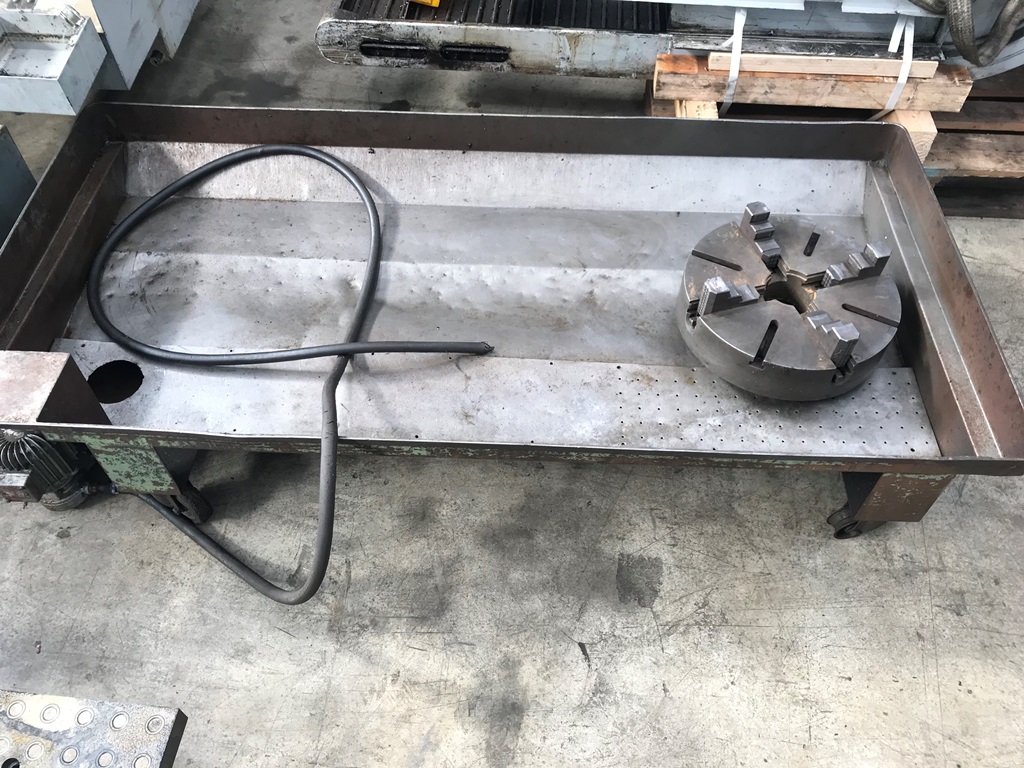

-Chip conveyor tank
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
