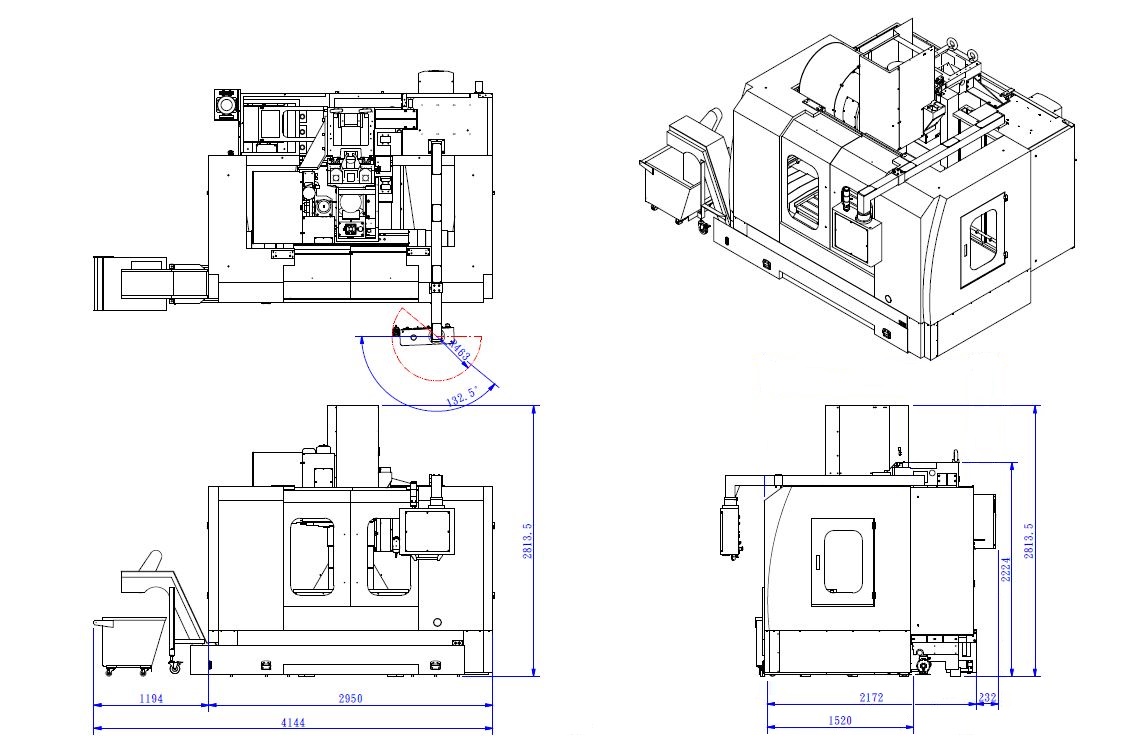

VERTICAL MACHINING CENTRE EUMACH MOD. HSM 1000 L / 10.000RPM
Single pallet
VIDEOS:
08223
CNC Fanuc 0i-MF
TECHNICAL DETAILS
- x axis 1020 mm
- y axis 610 mm
- z axis 610 mm
- Distance spindle nose to table surface 77-687 mm
- Distance column to spindle axis 705 mm
- Rapid feedrates x-y-z 36-36-36 m/min
- Table size 1200x610 mm
- Max load 850 Kg
- Belt spindle, 12.000rpm, Alpha 8i, 7.5-11 kW, BT-40
- Automatic tool change 24 positions
- Max tool lenght 250 mm
- Max tool diameter 125 mm
- Max tool weight 7 kg
- Power input 20 kVA
- Weight 7000 kg
EQUIPED WITH:

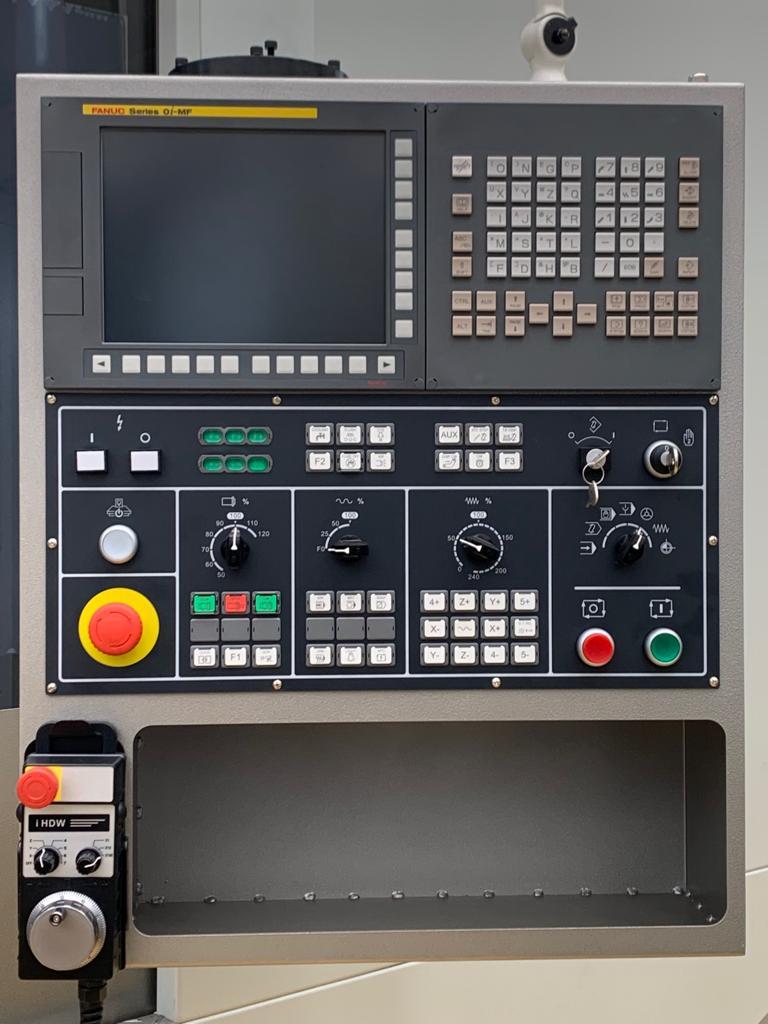

- CNC Fanuc 0i-MF
manual guide i
10,4’’ color display
AICC 200 blocks

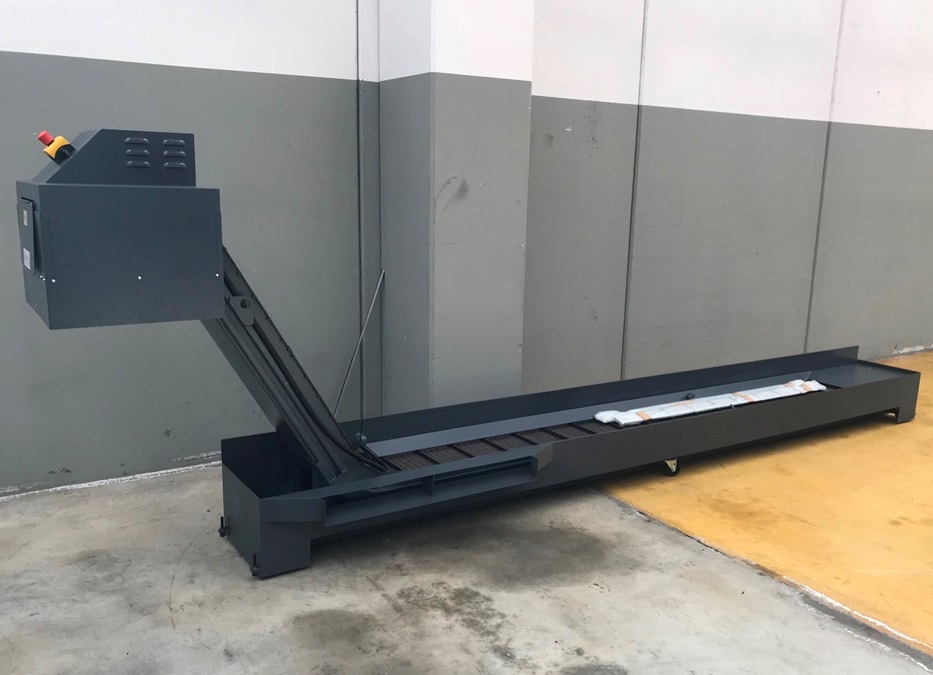

- chain type chip conveyor and chip cart

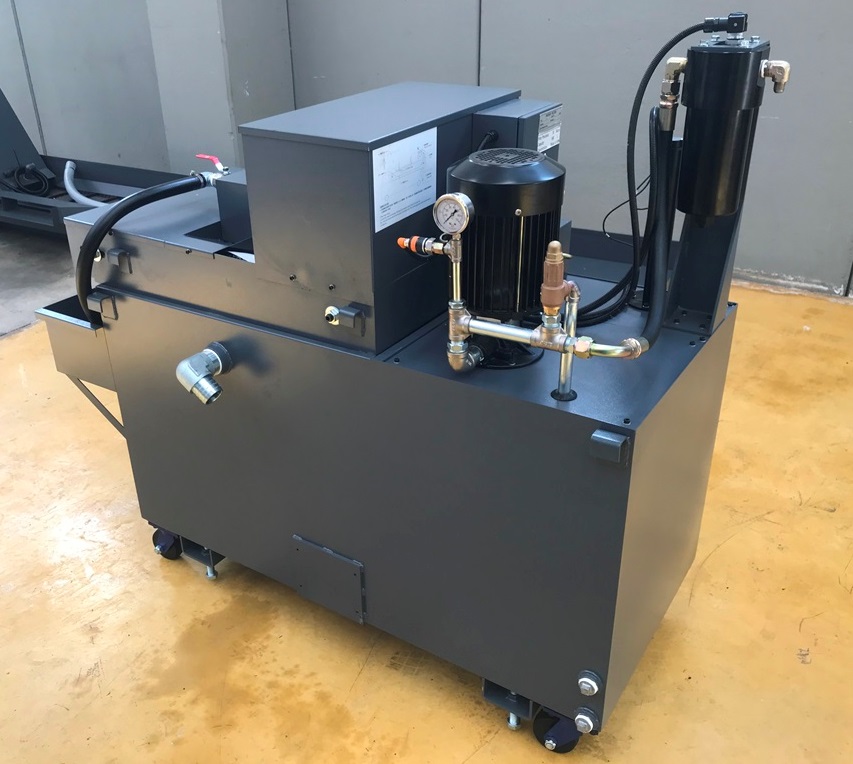

- High pressure through spindle 20 bar, with paper filter 30 micron and tank 600 L
- Spindle speed rotation max 10.000 RPM
- RS-232 terminal interface port
- USB port
- Ethernet connection
- Tool magazine 24 positions random
- Roller guideways axis X/Y/Z
- Alarm lamp for abnormal situation
- Indication lamp for end of job 3 colors
- Working lamp
- Levelling bolts and pads
- Air gun
- Tool box with spanners and wrenches
- Protezioni e coperture secondo normative Ce e EN13849
- Transformer 20 KVA
- User manuals in italian language, electrical drawingsi and CNC manuals
NEW MACHINE READY DELIVERY
