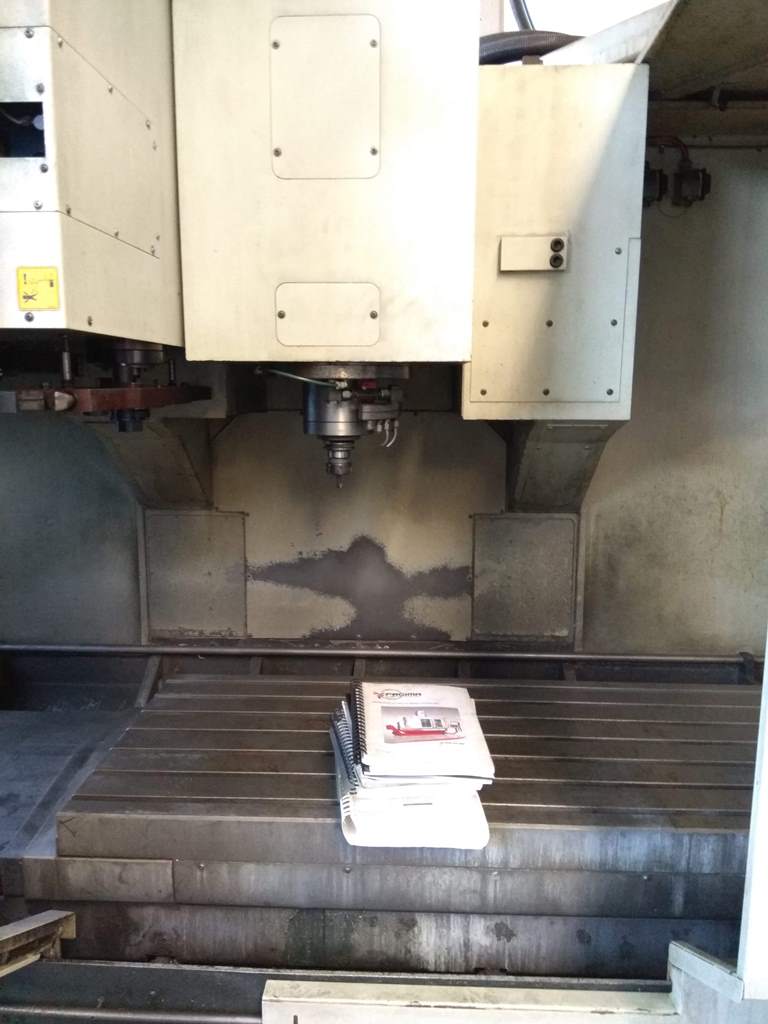

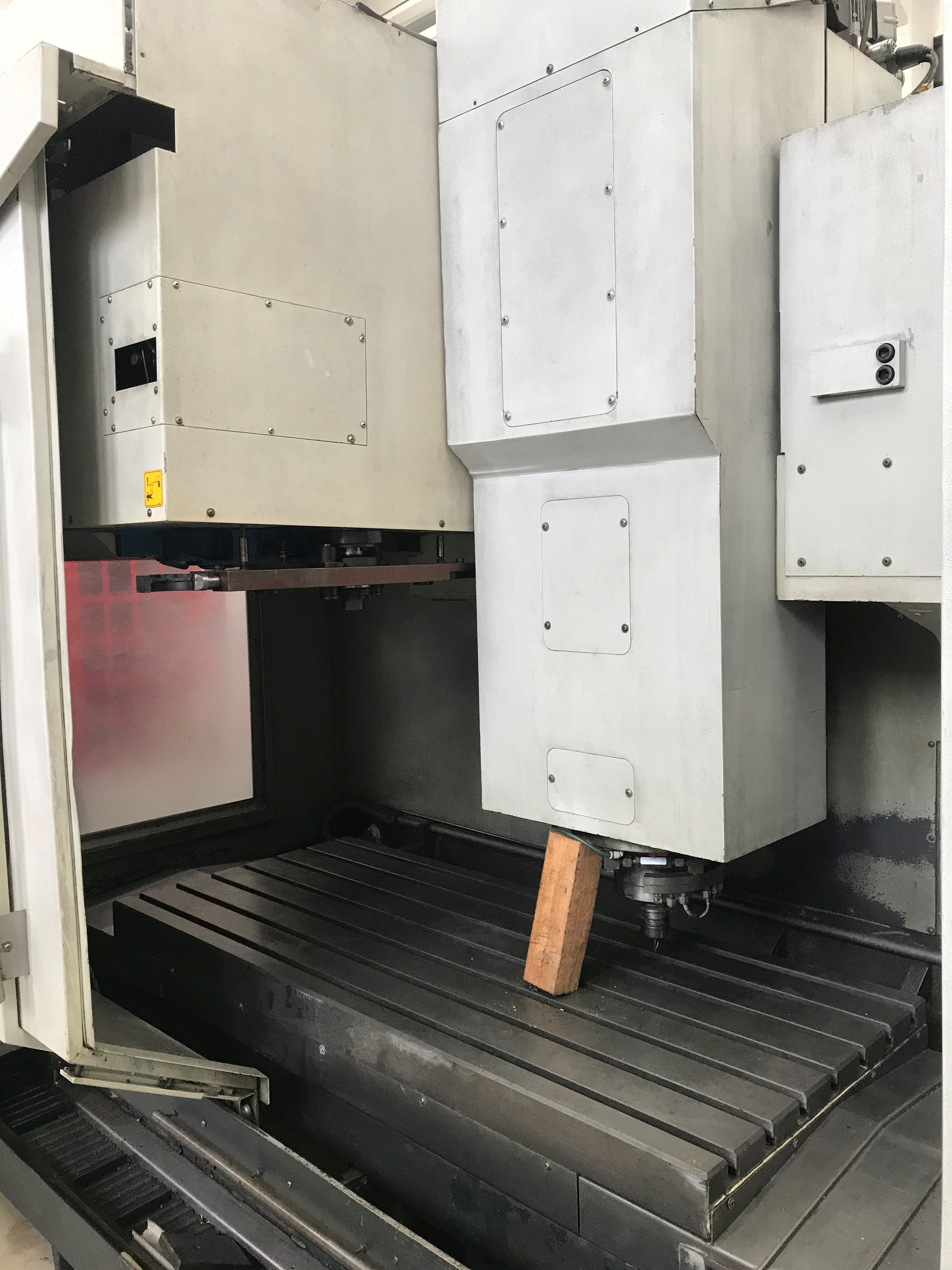

CENTER FAGIMA MOD. FA 12-50 BIG
Single pallet
machine center - vertical - Used Machines
.jpg)
FAGIMA
08344
08344

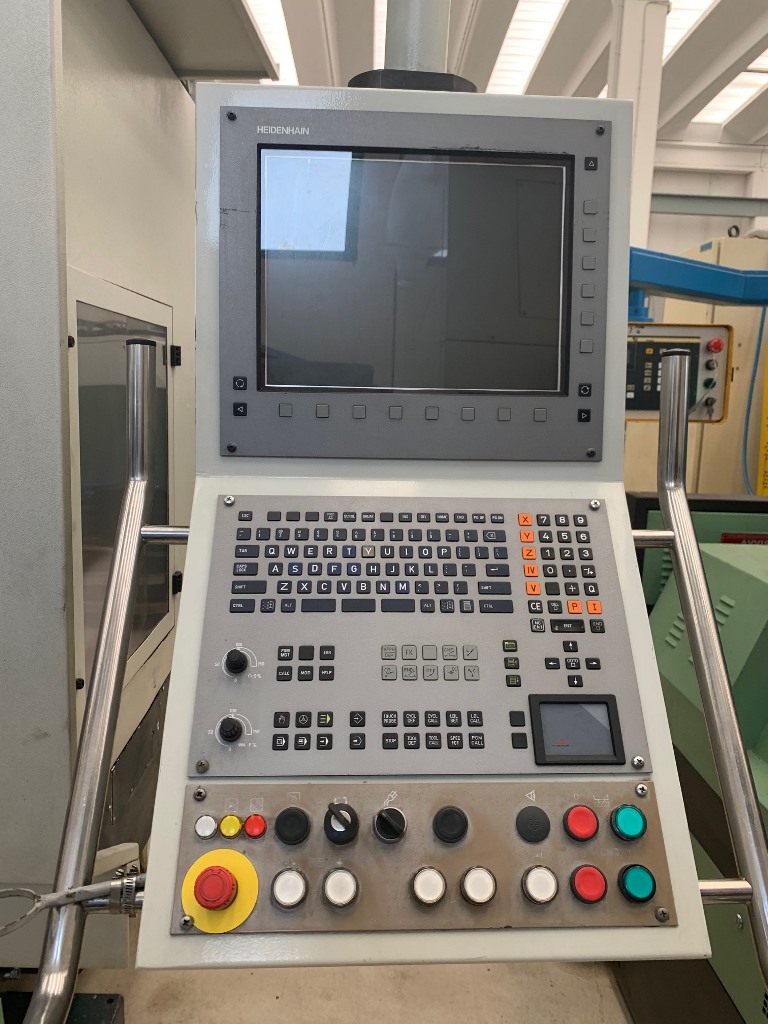

CNC HEIDENHAIN iTNC 530
TABLE:
TABLE DIMESIONS 600x1500 mm
MAX TABLE LOAD 1400 Kg
TRAVELS:
X-AXIS TRAVEL 1250 mm
Y-AXIS TRAVEL 700 mm
Z-AXIS TRAVEL 620 mm
SPINDLE:
DISTANCE SPINDLE NOSE-TABLE 100 mm
SPINDLE SPEED 10000 rpm; 22-30 kW; ISO 40 - DIN 69871 A
FEEDS:
RAPID FEEDS X-Y-Z 40-36-28 m/min
TOOL MAGAZINE:
TOOL MAGAZINE CHAIN-TYPE ; 24 POSITIONS
MAX TOOL LENGHT 300 mm
MAX TOOL DIAMETER 80 (125) mm
MAX TOOL WEIGHT 8 Kg
OVERALL DIMENSIONS AND WEIGHT:
WEIGHT8500 Kg
OVERALL DIMENSIONS,2370 x 3350 x 3180 mm
ACCESSORIES
-CHIP CONVEYOR
-PORTABLE HANDWHEEL
USED MACHINE
YEAR 2010
IMAGES:
FILL OUT OUR FORM FOR MORE INFORMATION
